Windshield Washer Solvent Container Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

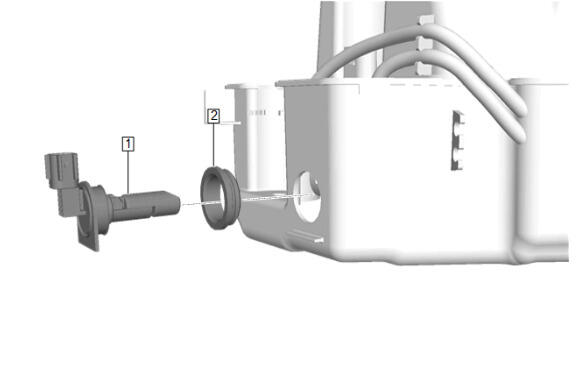

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement
1	Windshield Washer Solvent Container Level Sensor Procedure NOTE: Some components not shown for graphic clarity. Place a drain pan under the vehicle. Disconnect all electrical connectors. Refill the windshield washer solvent container.
2	Windshield Washer Solvent Container Level Sensor Grommet Procedure Using a small flat-bladed tool, remove the grommet from the windshield washer solvent container and inspect the grommet. Replace if damaged.

Callout

Component Name

Preliminary Procedure
Front Wheelhouse Liner Replacement

Windshield Washer Solvent Container Level Sensor

Procedure

NOTE:

Some components not shown for graphic clarity.

Place a drain pan under the vehicle.
Disconnect all electrical connectors.
Refill the windshield washer solvent container.

Windshield Washer Solvent Container Level Sensor Grommet
Procedure
Using a small flat-bladed tool, remove the grommet from the windshield washer solvent container and inspect the grommet. Replace if damaged.
