Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement
NOTE:

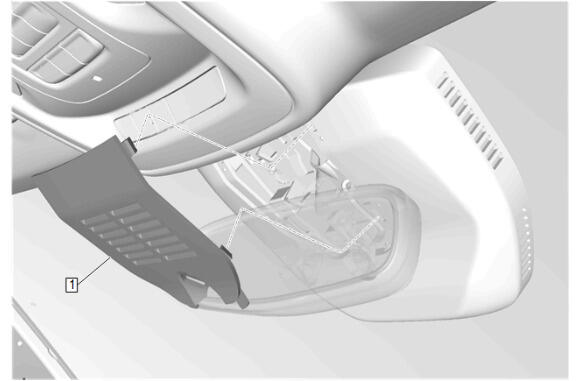

Callout items in the following chart represent components shown in graphic above.
Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement
| Callout | Component Name |
|---|---|
| 1 | Windshield Multifunction Sensor Mount Bracket Cover Insert
WARNING:
While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Procedure Use a plastic trim tool to release the upper tabs first and pull the insert up and away from the cover. |
