Front View Driver Information Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

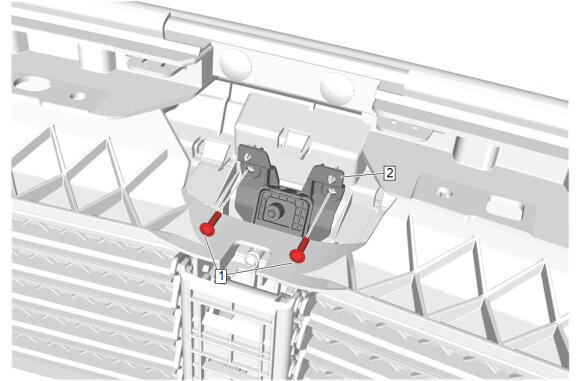

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Disconnect the electrical connectors.
1	Front Grille Bolt[2x] CAUTION: Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Front View Driver Information Camera Procedure After installation, perform the surround vision camera calibration. Surround Vision Camera Calibration (cameras wired to K124 Image Processing Module) , or Surround Vision Camera Calibration (cameras wired to A11 Radio)

Callout

Component Name

Preliminary Procedures

Front Grille Bolt[2x]

CAUTION:

Tighten
4.7 N.m (42 lb in)
