Removal Procedure

  1. Communication Interface Module - Remove - Communication Interface Module Replacement

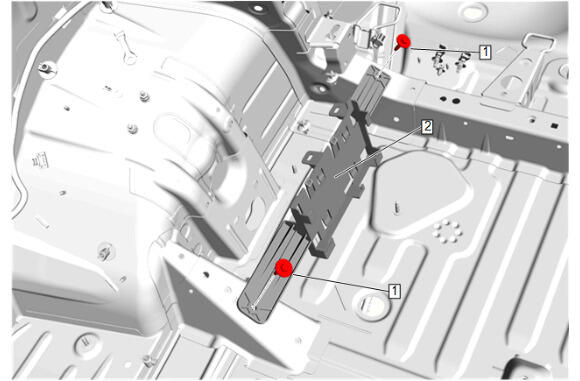

  2. GM6396449Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket Bolt (1) - Remove [2x]

  3. Communication Interface Module Bracket (2) - Remove
