Removal Procedure

  1. Instrument Panel - Remove - Instrument Panel Removal and Installation

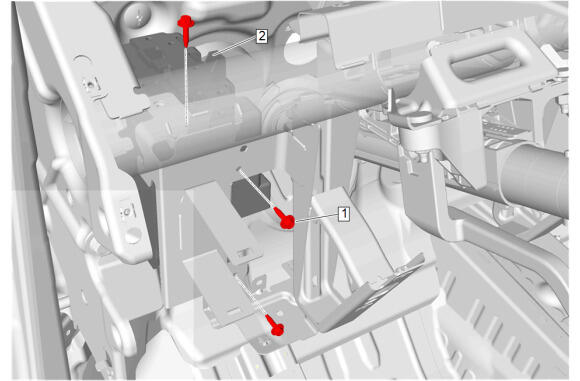

  2. GM6379391Courtesy of GENERAL MOTORS COMPANY

    Body Control Module Bracket Bolt (1) - Remove [3x]

  3. Body Control Module Bracket (2) - Remove
  4. Transfer components as necessary.
