Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

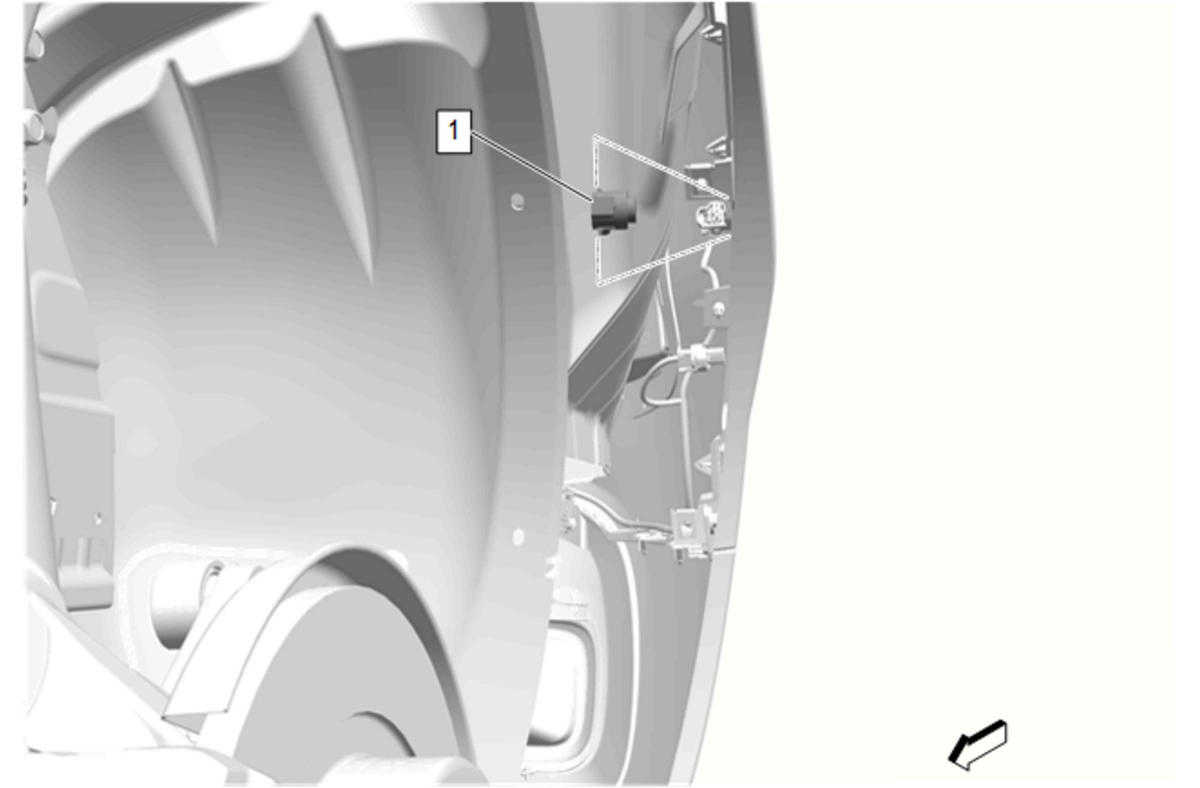

Insert the sensor (1) into the housing.
- Connect the electrical connector.

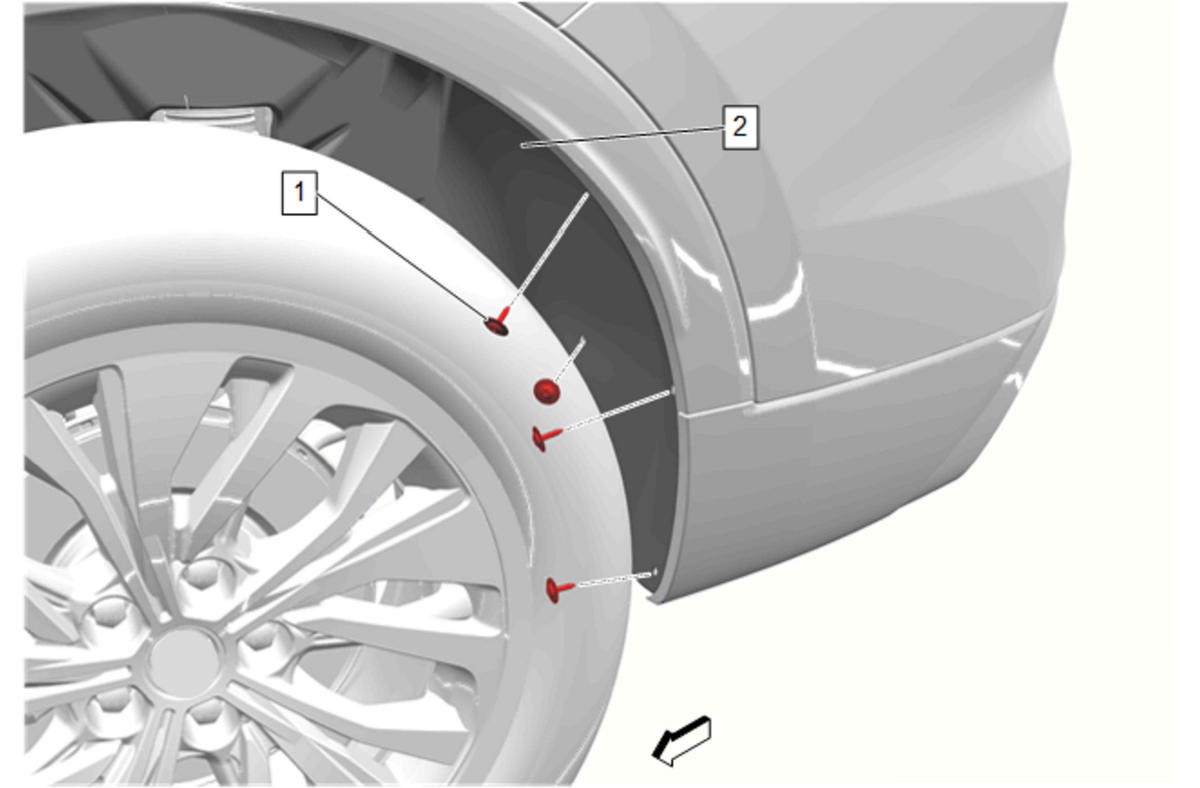

Rear Wheelhouse Liner (2) - Install
- Rear Wheelhouse Liner Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
CAUTION:
Refer to Fastener Caution .
