Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

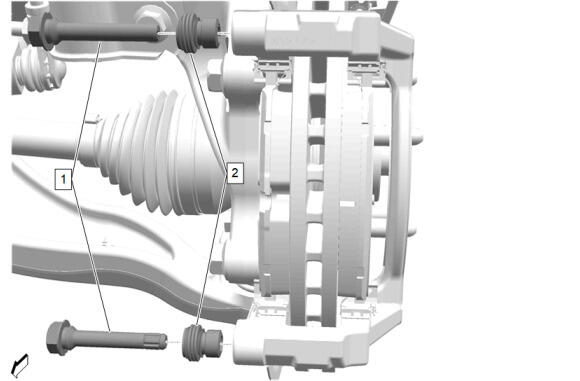

Front Brake Caliper Guide Pin Seal (2) - Install [2x]
- Front Brake Caliper Guide Pin (1) - Install [2x]
Front Brake Caliper (2) - Install

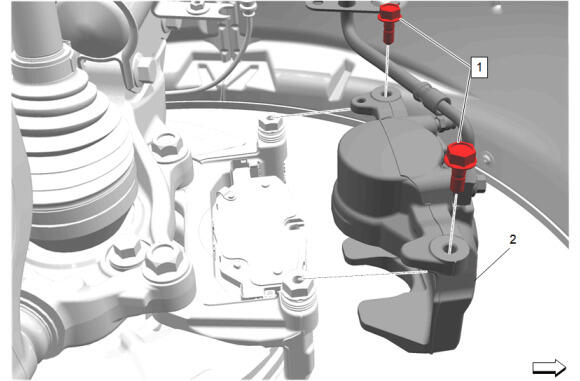

- Front Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Front Brake Caliper Replacement
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
