Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

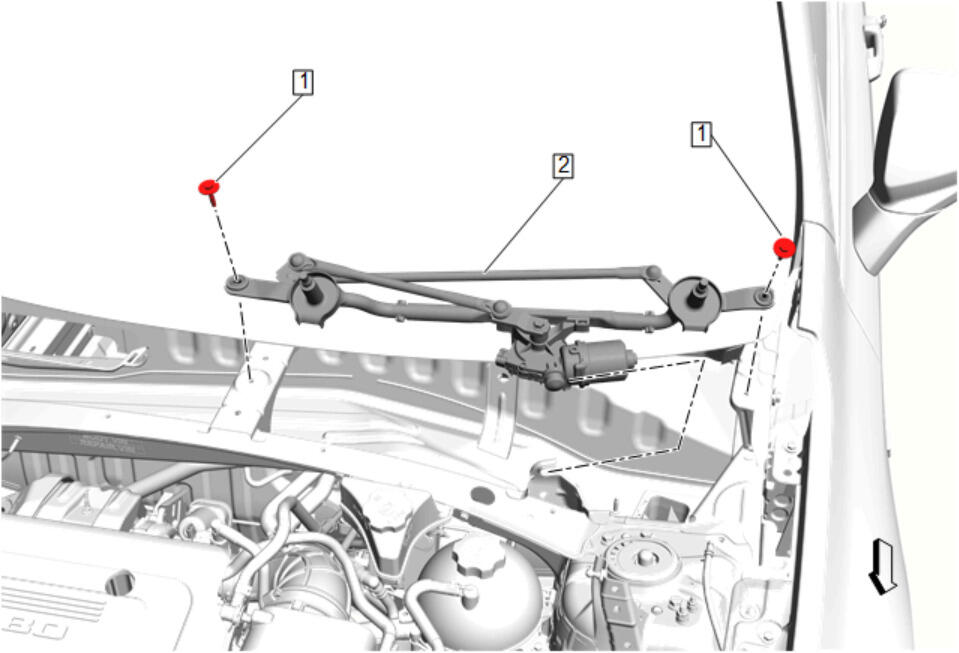

GM5053890Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Windshield Wiper System Module Shield Replacement
1 Windshield Wiper Transmission Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Windshield Wiper Transmission

Procedure

  1. Disconnect the electrical connector.
  2. Remove the windshield wiper transmission from the plenum brackets.
  3. Transfer components as necessary.
