Front Parking Assist Alarm Sensor Bracket Replacement: Notes

WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

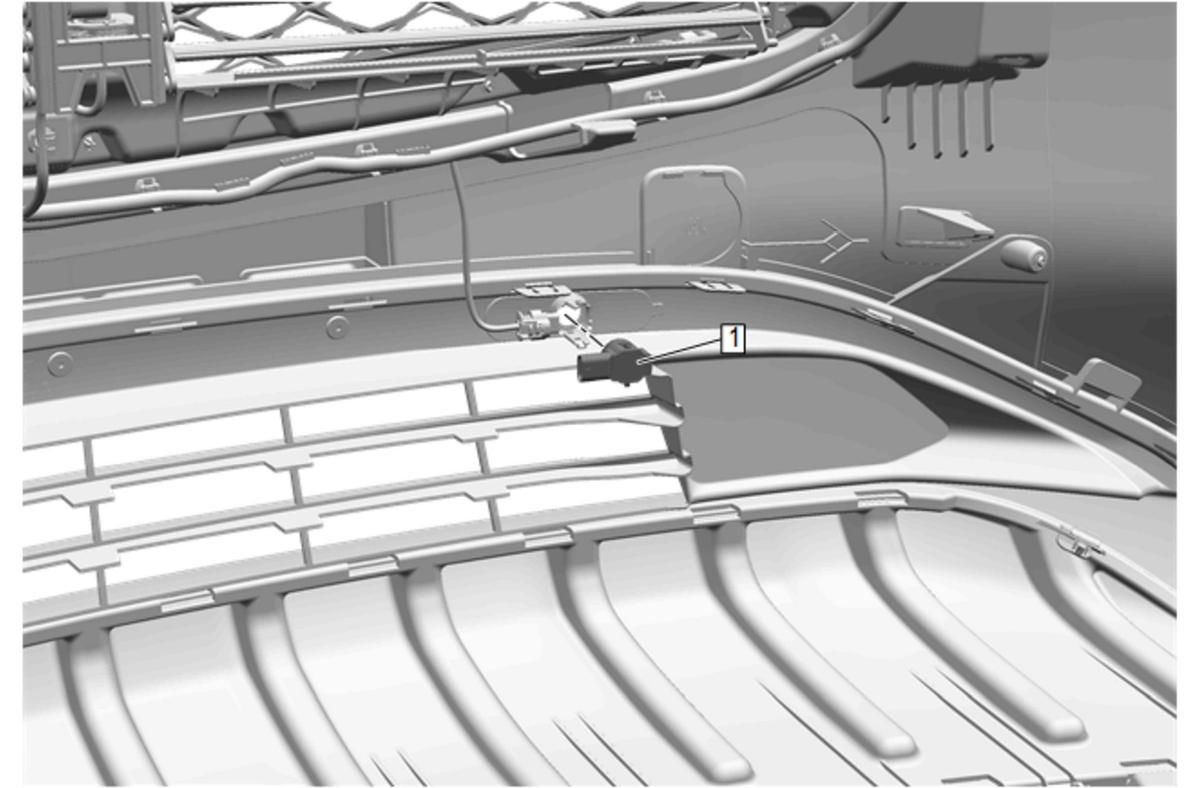

Advance Parking Assist Front Object Sensor (1) - Remove - Front Parking Assist Alarm Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

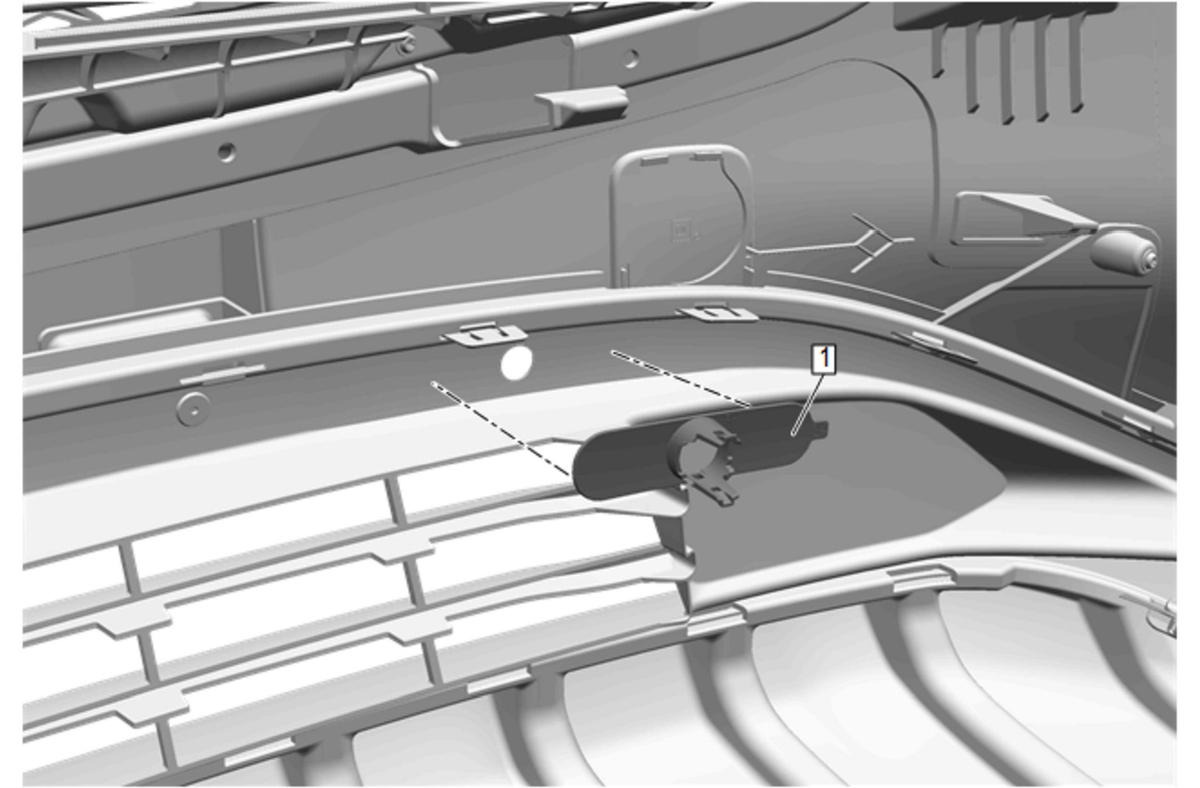

Using a flat bladed, tool carefully remove the bracket (1) from the fascia.

NOTE:

Do Not sand off alignment tabs / outline.

Sand sonic weld plastic residue from the fascia.
