Body Control Module Replacement

WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

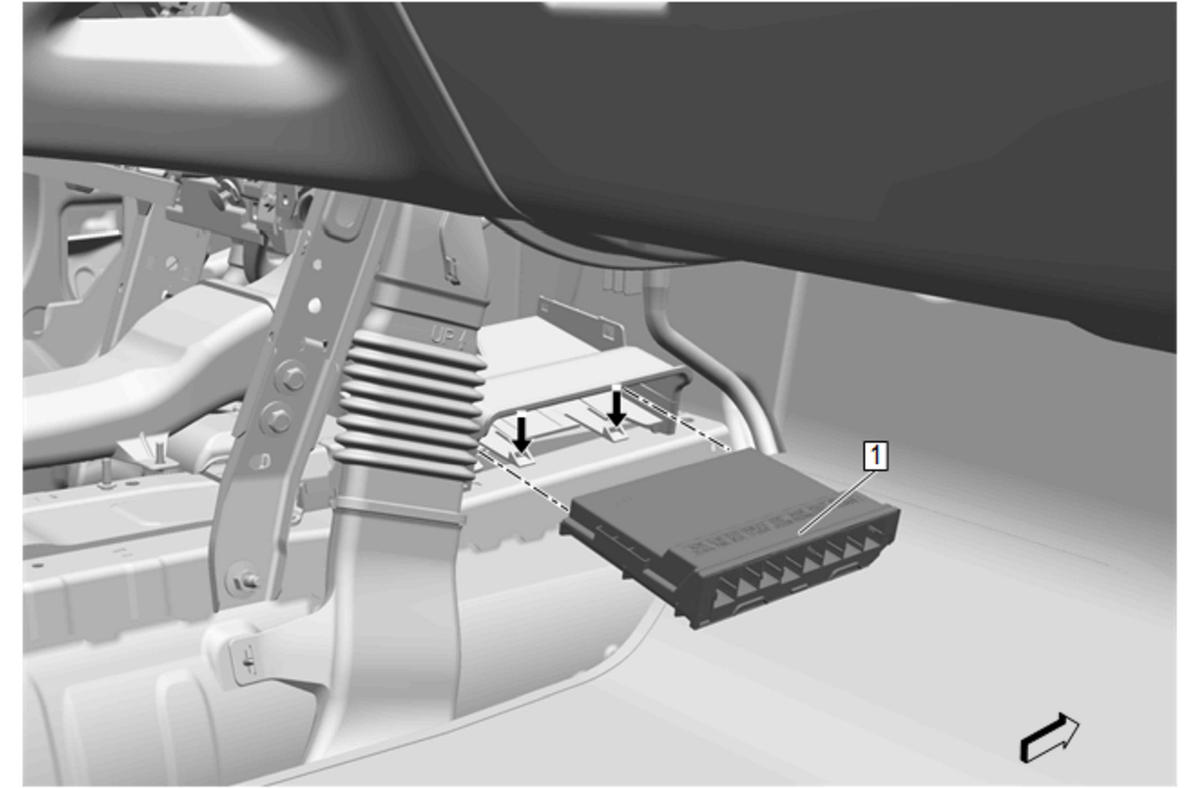

Callout	Component Name
Preliminary Procedures NOTE: Only remove the upper right instrument panel center trim panel bolt, not necessary to remove instrument panel lower center trim panel. Remove the upper right instrument panel center trim panel bolt. Instrument Panel Lower Center Trim Panel Replacement - Left Side Instrument Panel Lower Center Trim Panel Replacement - Right Side Front Floor Console Extension Panel Replacement - Right Side Remove the passenger side front seat bolts and reposition passenger side front seat. Front Seat Removal and Installation
1	Body Control Module Procedure Reposition the front floor panel carpet as necessary. Floor Rear Air Outlet Duct Adapter Replacement - Right Side Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedures

NOTE:

Only remove the upper right instrument panel center trim panel bolt, not necessary to remove instrument panel lower center trim panel.

Remove the upper right instrument panel center trim panel bolt. Instrument Panel Lower Center Trim Panel Replacement - Left Side
Instrument Panel Lower Center Trim Panel Replacement - Right Side
Front Floor Console Extension Panel Replacement - Right Side
Remove the passenger side front seat bolts and reposition passenger side front seat. Front Seat Removal and Installation

Body Control Module

Procedure

Reposition the front floor panel carpet as necessary.
Floor Rear Air Outlet Duct Adapter Replacement - Right Side
Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
