Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Air Conditioning Condenser (2) - Install
Air Conditioning Condenser Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

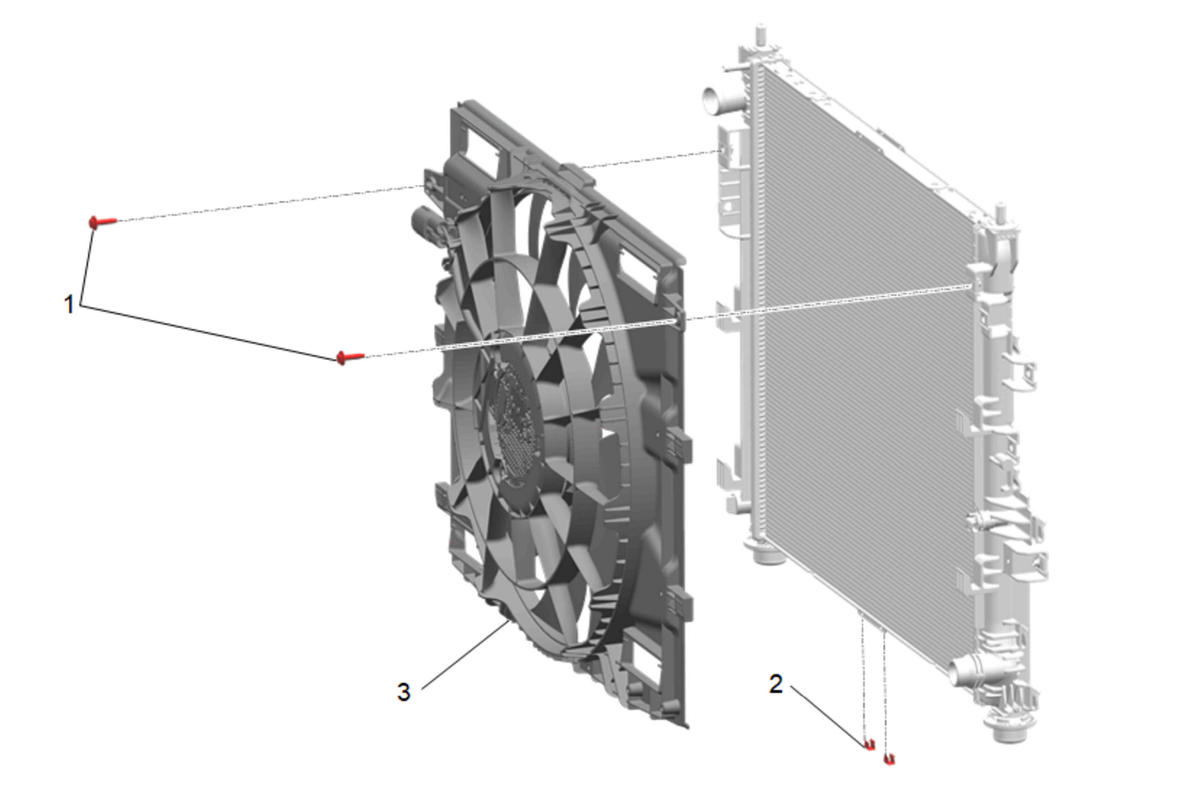

Engine Coolant Fan (3) - Install
Engine Coolant Fan Shroud Clip (2) - Install [2x]
Engine Coolant Fan Bolt (1) - Install and tighten [2x] 5.1 N.m (45 lb in)
Courtesy of GENERAL MOTORS COMPANY

Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Left Side (1) - Install - Radiator Upper Bracket Replacement - Left Side
Radiator Upper Bracket - Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (1) @ Radiator - Install - Radiator Inlet Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Air Bleed Hose (1) @ Radiator - Install - Engine Coolant Air Bleed Hose Replacement (Radiator to Radiator Surge Tank to Engine Coolant Thermostat Housing Pipe) ,
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Wiring Harness Clip (2) @ Radiator - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (1) @ Radiator - Install - Radiator Outlet Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser and Air Conditioning Evaporator Tube (1) @ Air Conditioning Condenser - Install - Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose (1) @ Air Conditioning Condenser - Install - Air Conditioning Compressor Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler (2) - Install - Charge Air Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the front head lamp (2) on both side. Front Headlamp Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Upper Baffle - Right Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Upper Baffle - Left Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (1) - Install - Front Bumper Impact Bar Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Lower Baffle (3) - Install - Radiator Air Lower Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Seal (2) - Install - Radiator Air Upper Seal Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
Recharge the refrigerant. Refrigerant Recovery and Recharging
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
