Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Retaining Tab (1) - Disengage [2x]
- Fuse Block Cover (2) - Remove

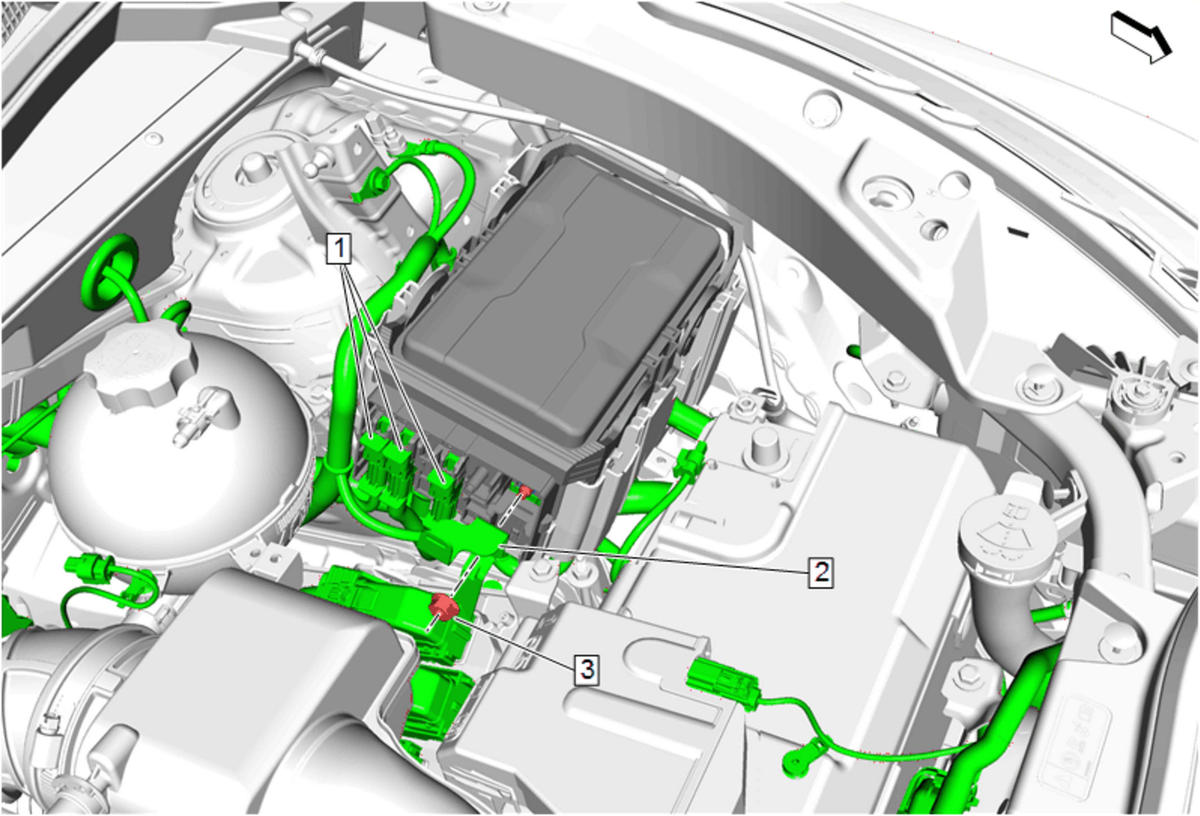

Electrical Connector (1) - Disconnect [3x]
- Battery Positive Cable Nut (3) @Engine Wiring Harness Junction Block - Remove
- Battery Positive Junction Block Cable (2) - Remove

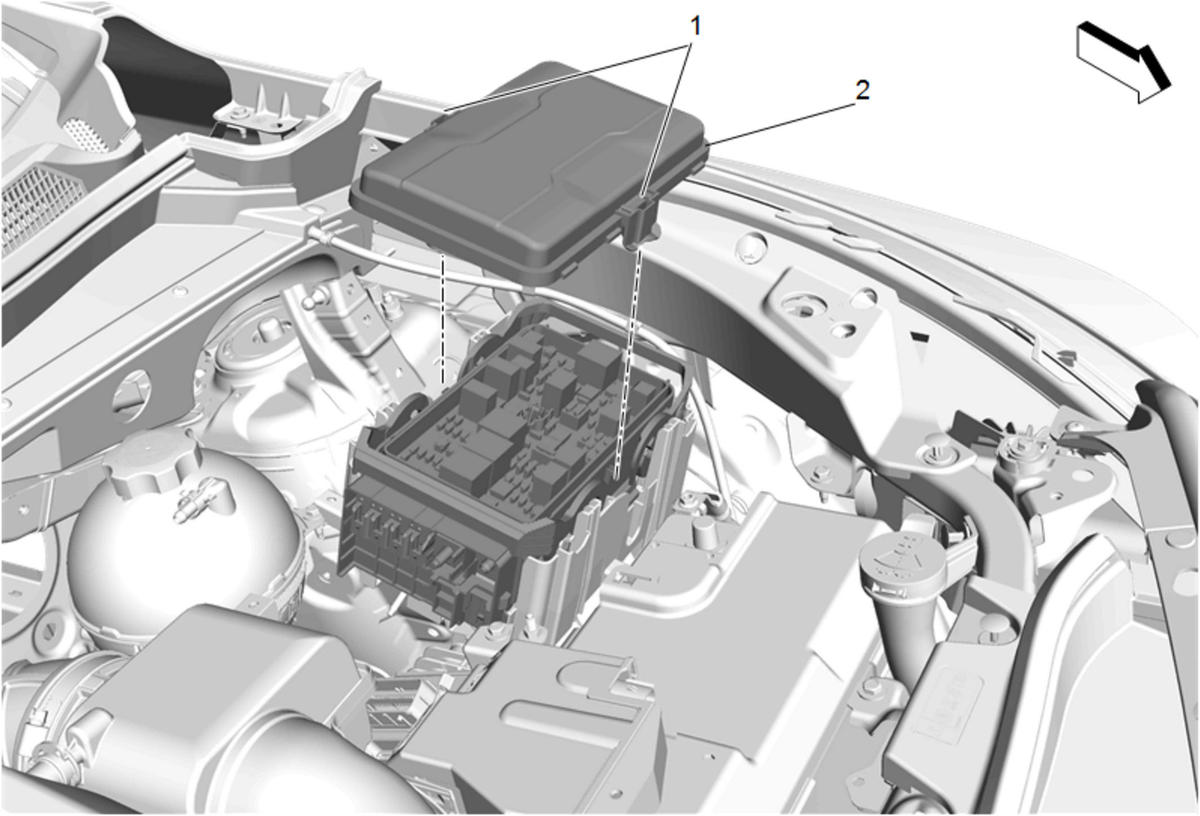

Retaining Tab (1) - Disengage [2x]
- Engine Wiring Harness Junction Block Cover (2) - Remove
Release the 4 retainer tabs using a suitable hook-like tool to release the locking levers.
- Rotate the locking levers upwards, to release the engine wiring harness junction block (1) from the electrical connectors.
