Removal Procedure

  1. GM5053730Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (2) - Remove - Battery Distribution Engine Compartment Fuse Block Replacement

  2. GM5053332Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Strap (4) - Remove - Battery Hold Down Strap Replacement

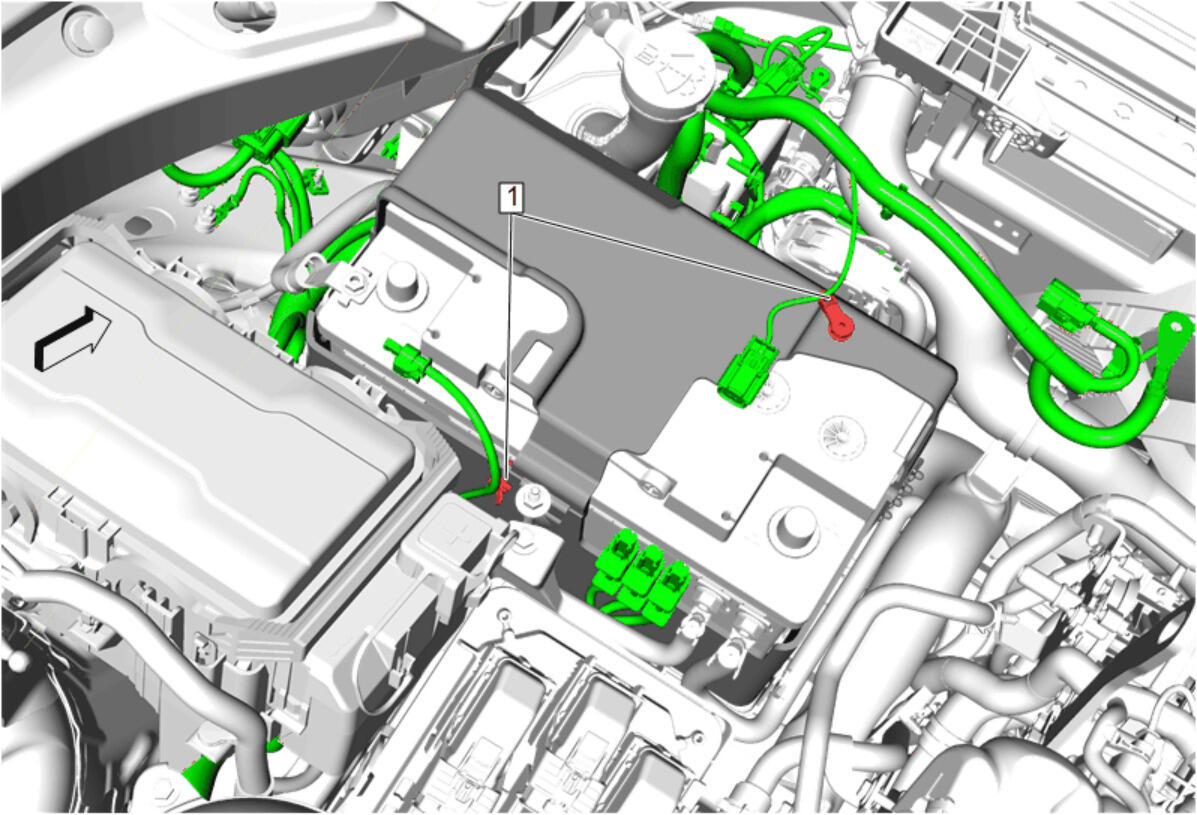

  3. GM5125537Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage [2x]

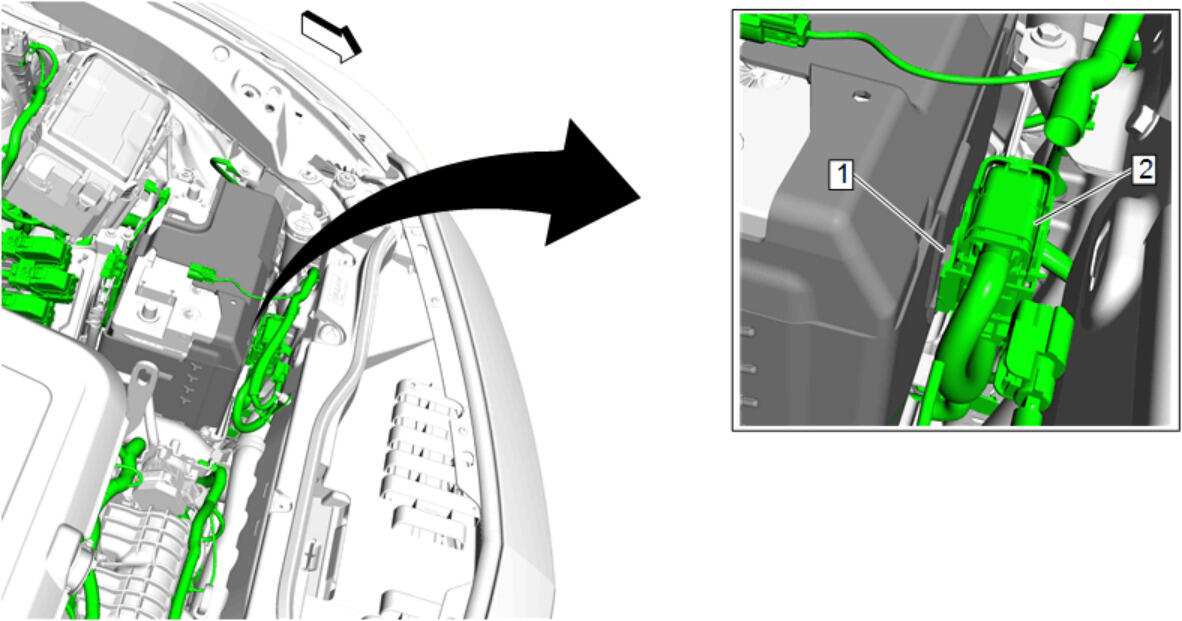

  4. GM5053768Courtesy of GENERAL MOTORS COMPANY

    Disengage the inline harness connector (2) from the battery upper cover retaining tab (1).

  5. GM5053769Courtesy of GENERAL MOTORS COMPANY

    Battery Upper Cover (1) - Remove
