Installation Procedure

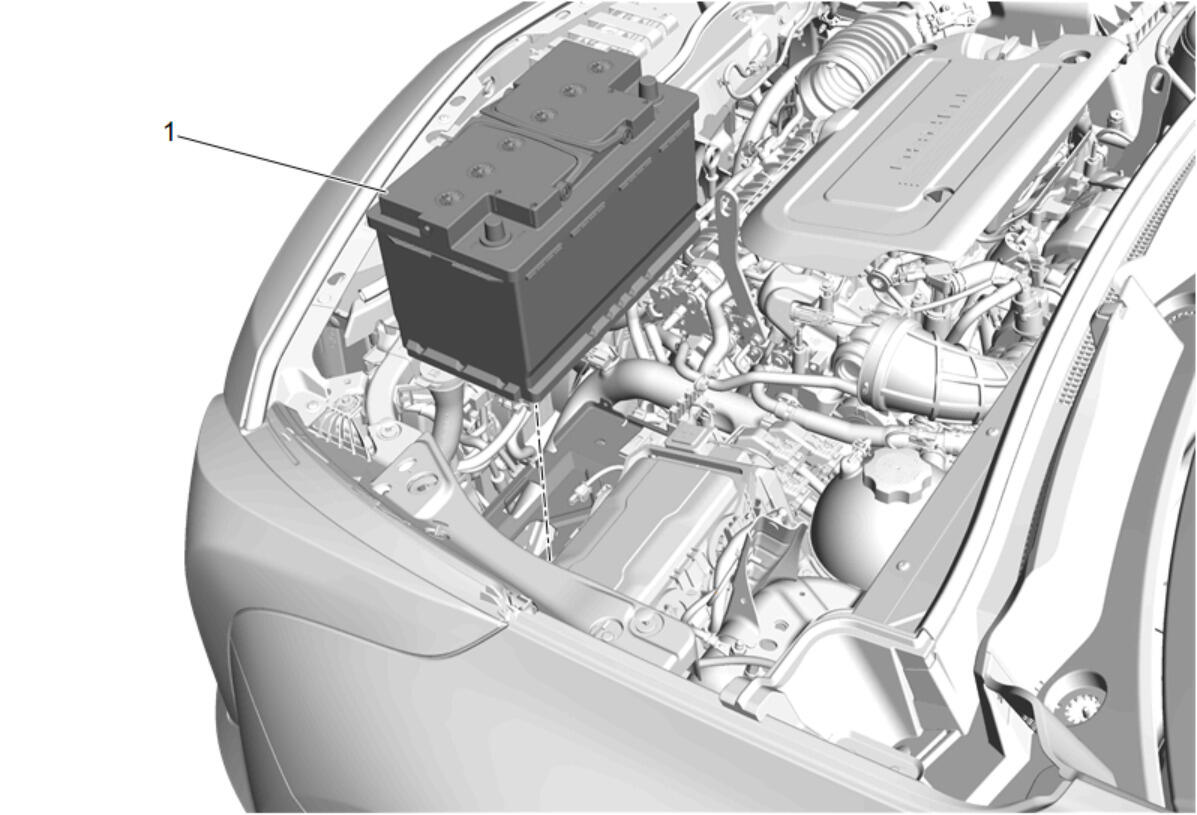

  1. GM5053824Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

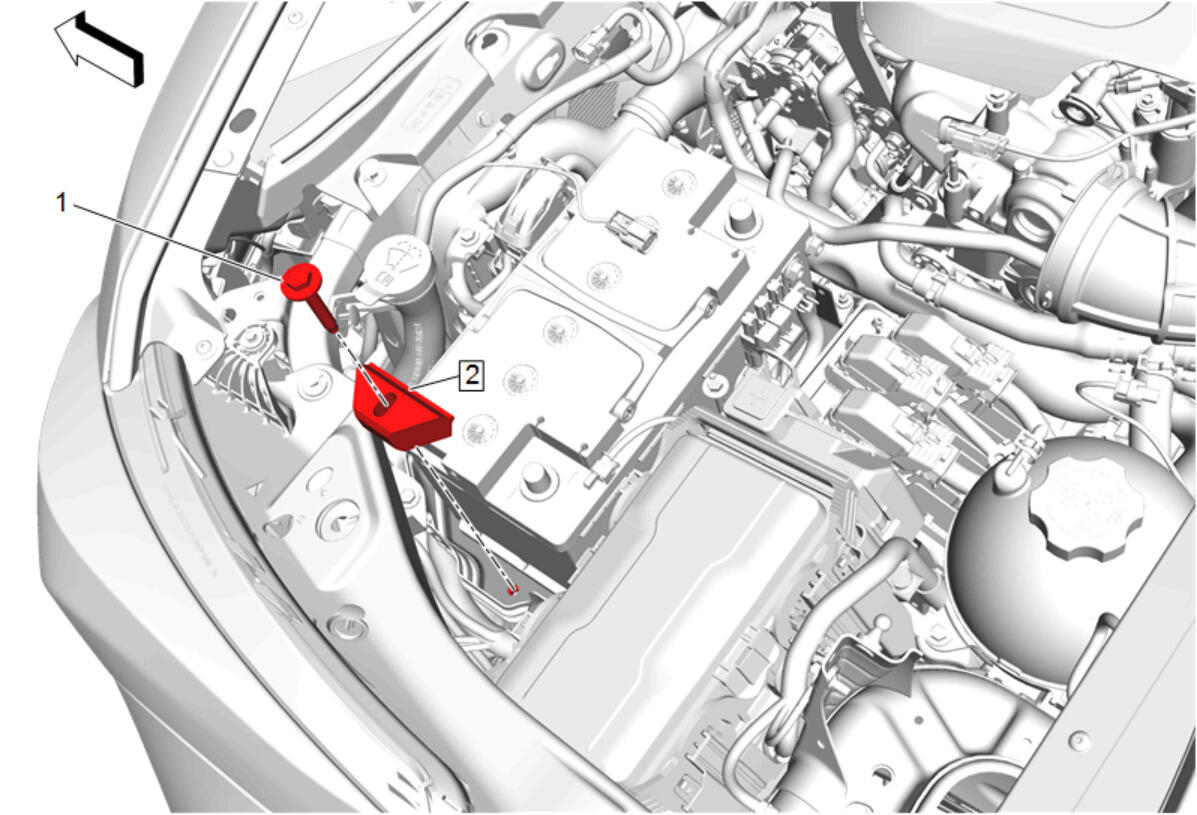

  2. GM5053823Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Bolt (1) - Install and Tighten 22 N.m (16 lb ft)

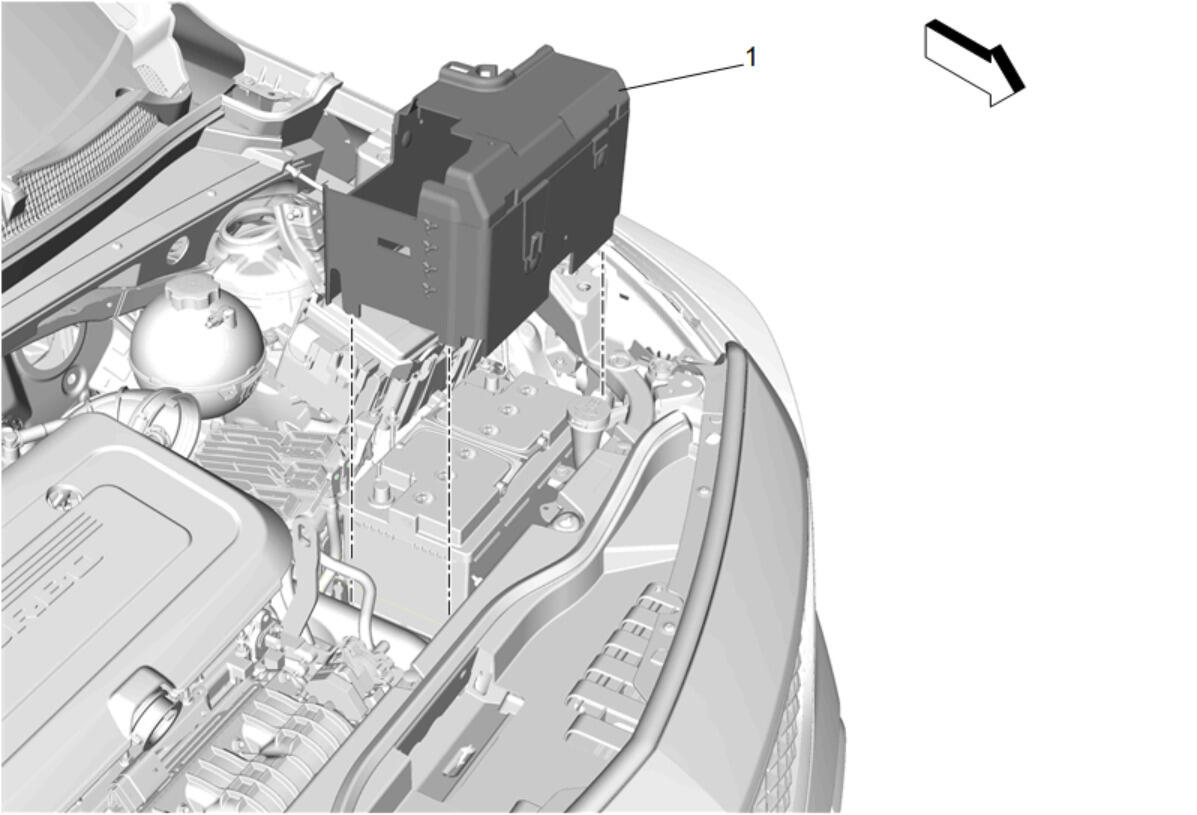

  4. GM5053769Courtesy of GENERAL MOTORS COMPANY

    Battery Upper Cover (1) - Install - Battery Upper Cover Replacement

  5. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
