Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM4963048Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Remove - Intake Manifold Replacement

  3. GM5055925Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Remove - Battery Tray Replacement

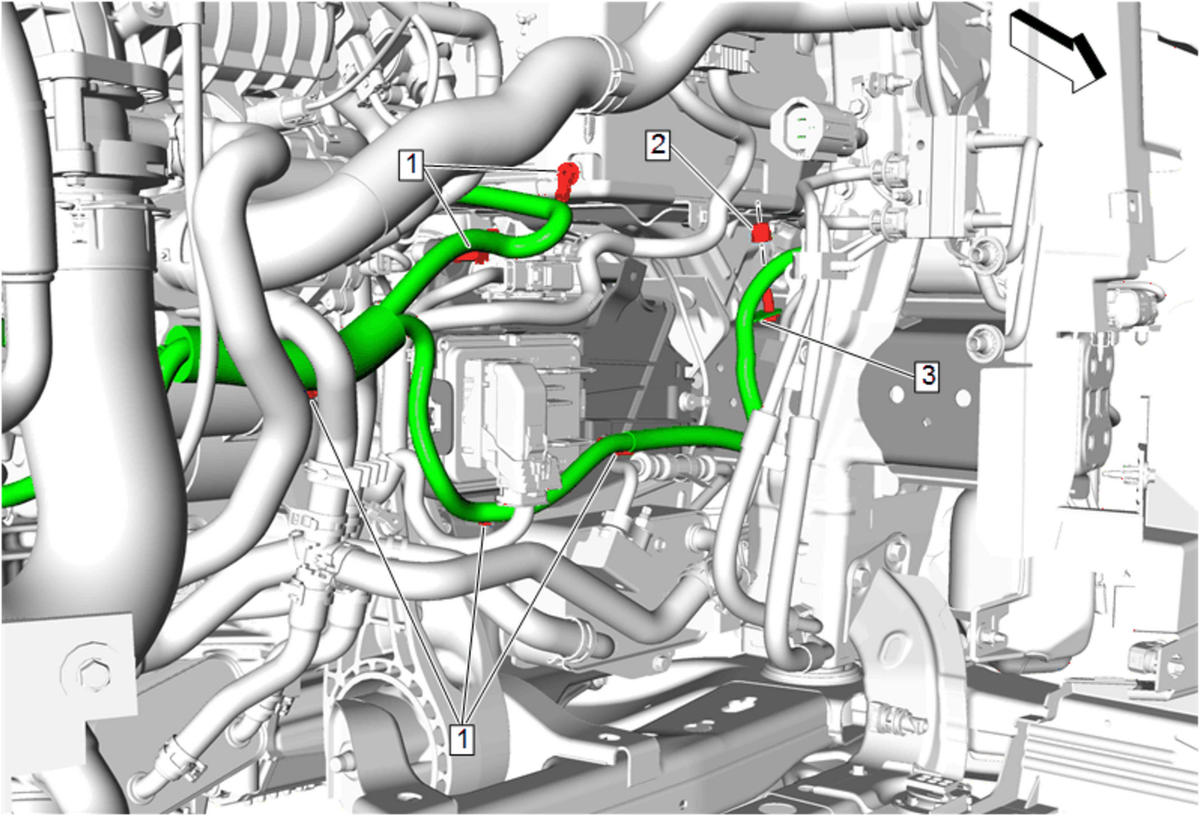

  4. GM5063366Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Nut (2) - Remove

  5. Battery Negative Cable (3) - Remove
  6. Retainer (1) - Disengage [5x]
  7. GM5609720Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage

  8. Battery Positive Cable Nut (2) @Starter Solenoid - Remove
  9. Battery Negative Cable Ground Bolt (3) - Remove
  10. Battery Positive Cable Nut (4) @Generator - Remove

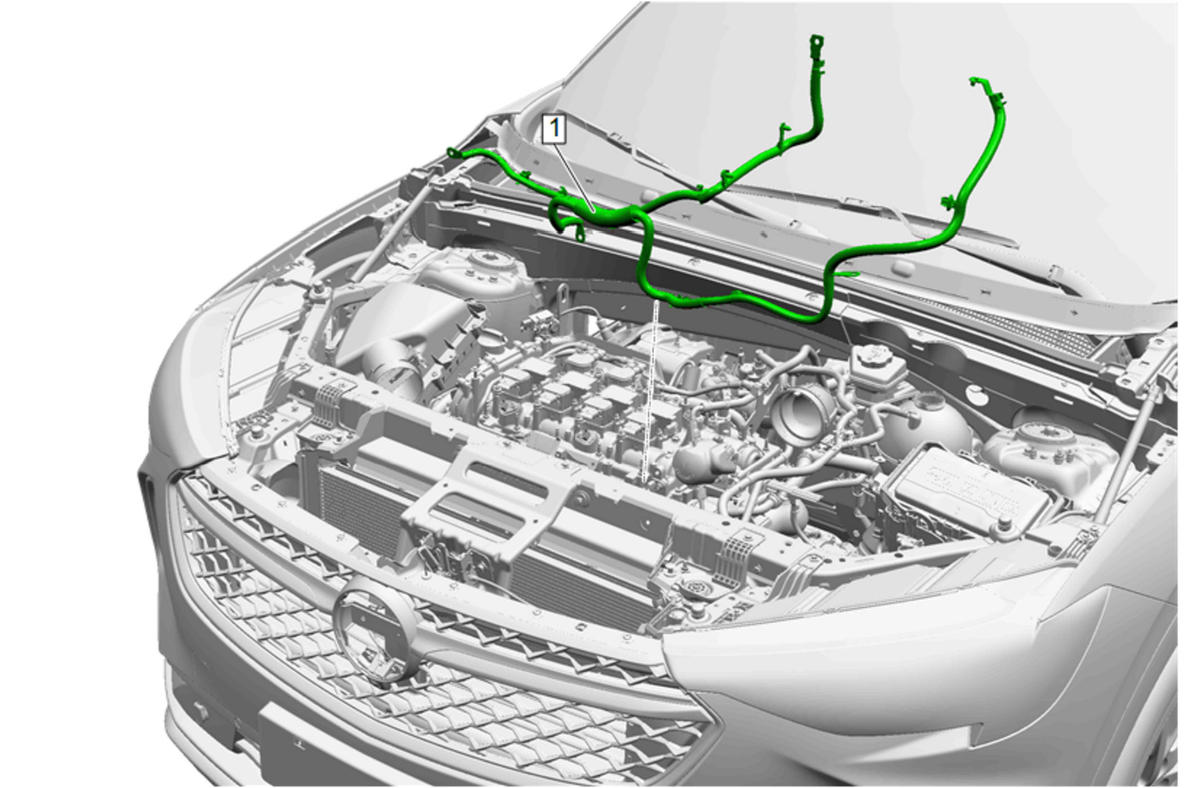

  11. GM5626972Courtesy of GENERAL MOTORS COMPANY

    Battery Positive and Negative Cable (1) - Remove
