Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

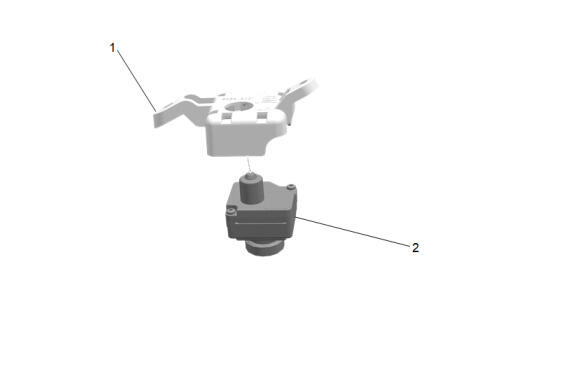

Install the side view driver information camera (2) to the side view driver information camera bracket (1).

Courtesy of GENERAL MOTORS COMPANY

Install the side view driver information camera and the bracket (1) together.

Courtesy of GENERAL MOTORS COMPANY

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

Courtesy of GENERAL MOTORS COMPANY

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

Courtesy of GENERAL MOTORS COMPANY

Side View Driver Information Camera Harness Connector (1) - Connect

Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Housing Upper Cover (1) - Install - Outside Rearview Mirror Housing Upper Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Inner Actuator (2) - Install - Outside Rearview Mirror Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement
