Installation Procedure

  1. GM5579616Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Insulator (1) - Install [2x]

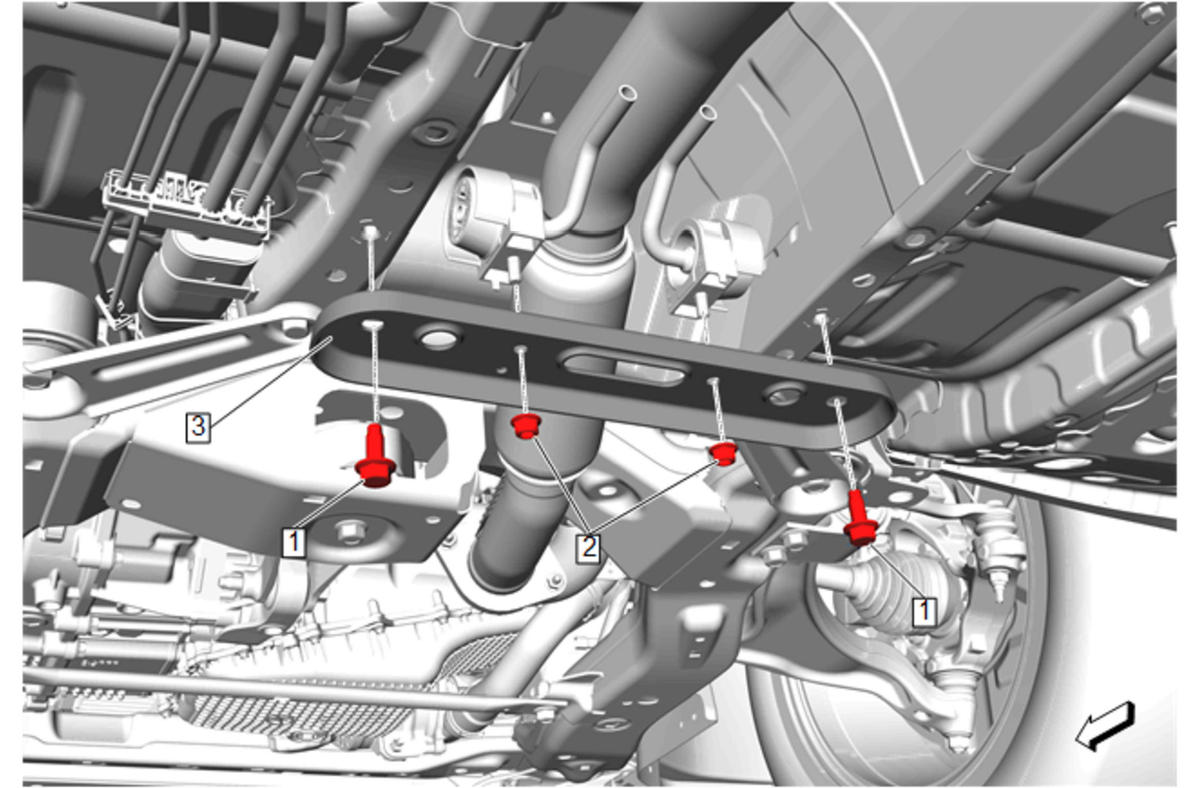

  2. GM5579615Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Bracket (3) - Install - Exhaust Front Bracket Replacement (FWD)
