Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

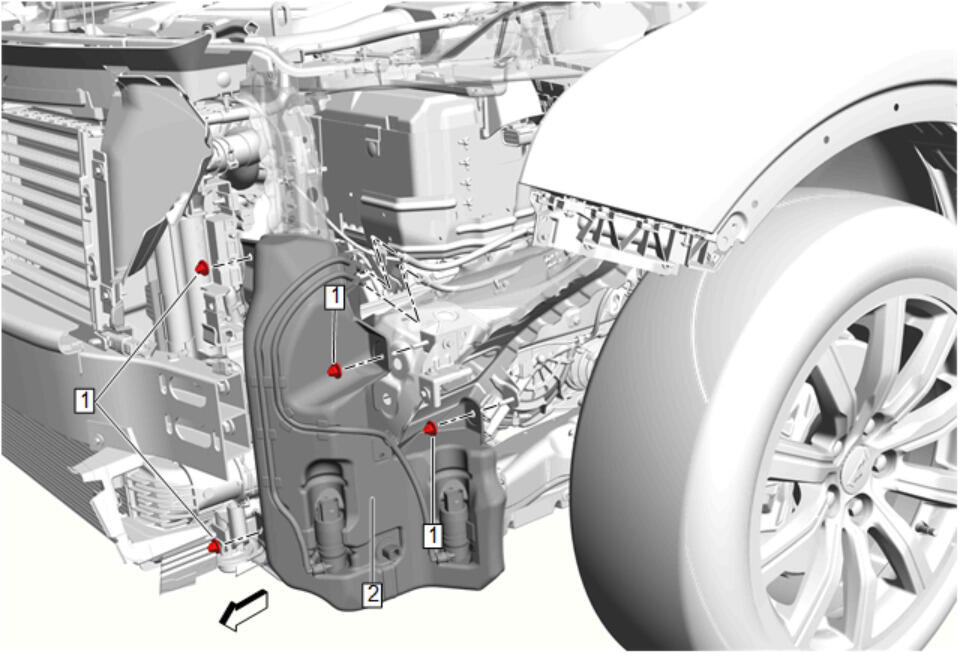

GM5051660Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Washer Solvent Container Filler Tube Replacement
  2. Front Bumper Fascia Removal and Installation
  3. Front Headlamp Replacement
1 Windshield Washer Solvent Container Nut [4x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Windshield Washer Solvent Container

Procedure

  1. Disconnect all electrical connectors.
  2. Transfer components as necessary.
