Low Frequency Rear Compartment Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

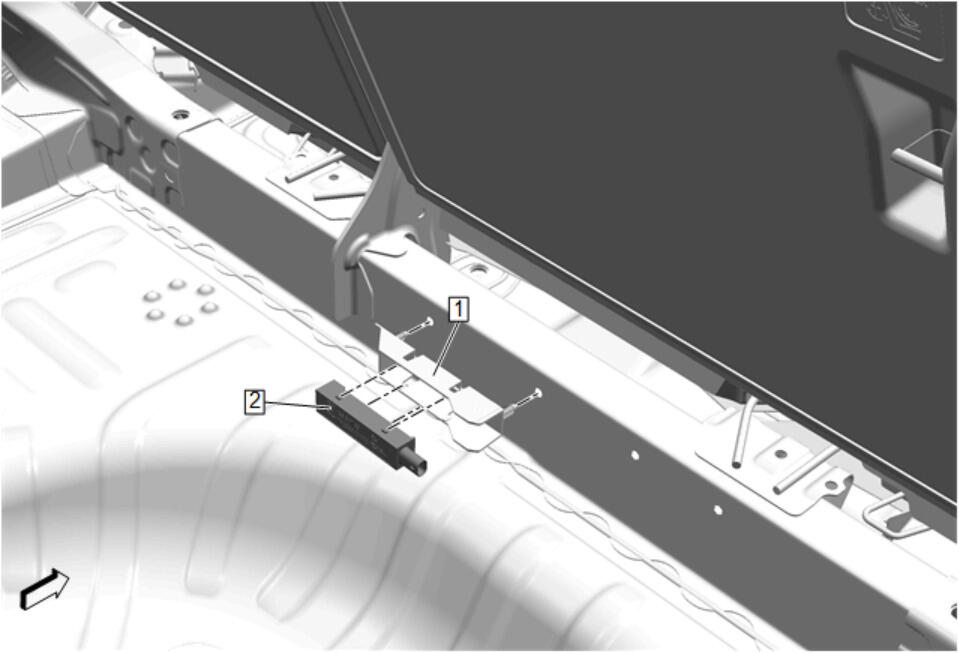

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Panel Trim Replacement
1	Low Frequency Rear Compartment Antenna Bracket
2	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Using a suitable tool, release the retaining tabs and remove the low frequency antenna.

Callout

Component Name

Low Frequency Rear Compartment Antenna Bracket

Low Frequency Rear Compartment Antenna

Procedure

Disconnect the electrical connector.
Using a suitable tool, release the retaining tabs and remove the low frequency antenna.
