Turbocharger/Supercharger Boost Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

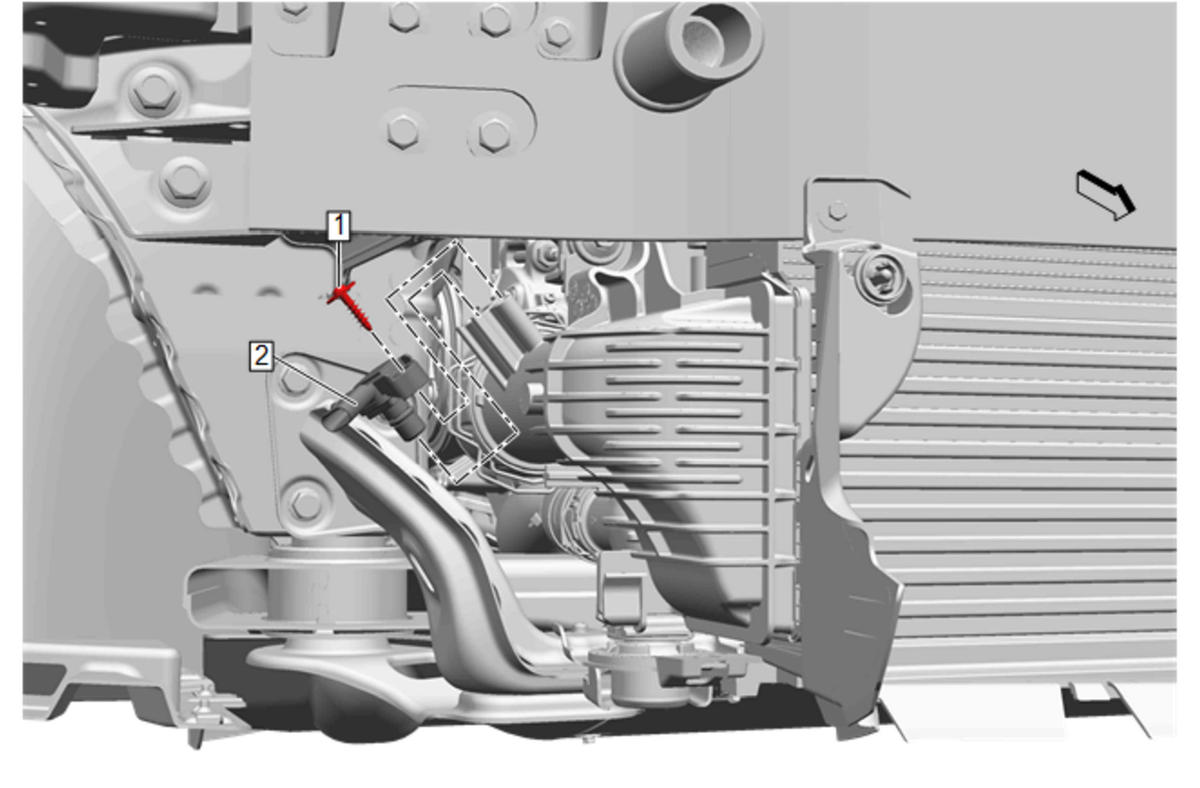

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Turbocharger Air Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3.2 N.m (28 lb in)
2	Turbocharger Air Pressure Sensor Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Turbocharger Air Pressure Sensor Bolt

CAUTION:

Tighten
3.2 N.m (28 lb in)

Turbocharger Air Pressure Sensor

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
