Fuel Tank Filler Hose Replacement

Courtesy of GENERAL MOTORS COMPANY

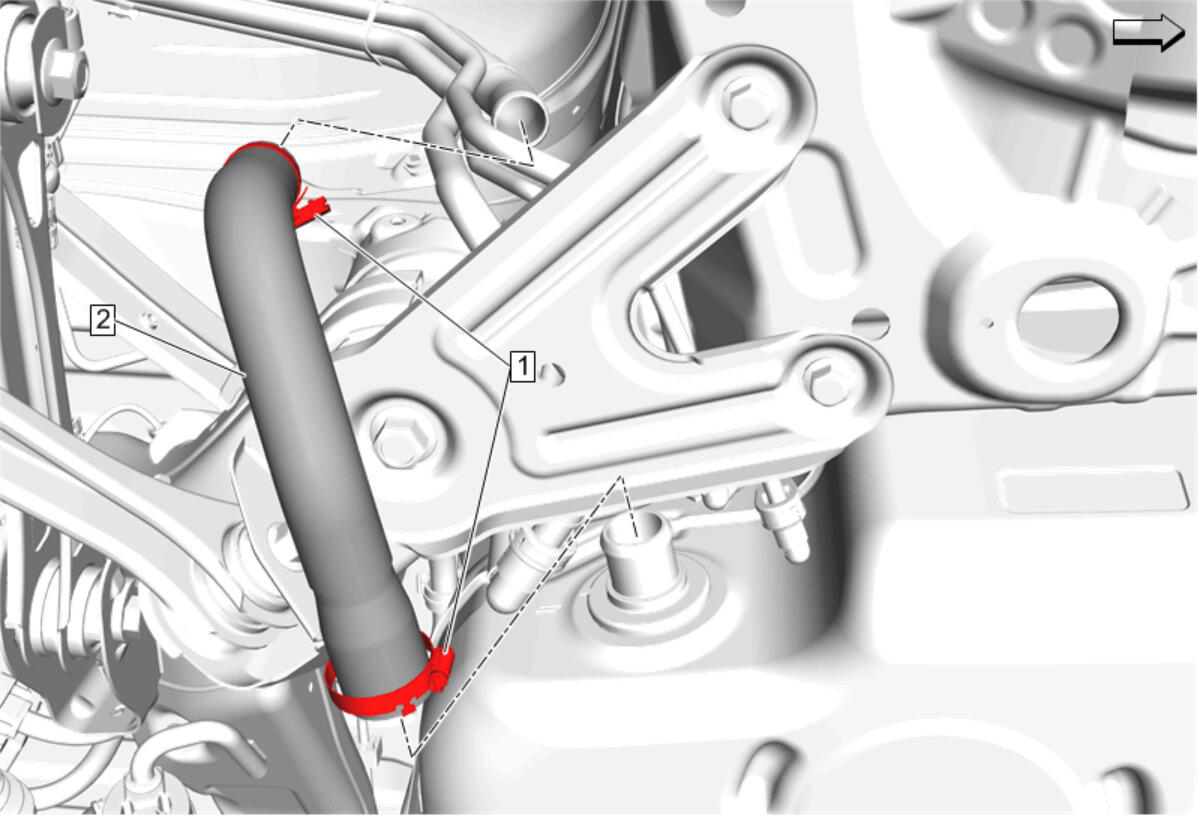

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Fuel Tank Draining Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Fuel Tank Filler Hose Clamp [2x]

CAUTION:

Tighten
3.5 N.m (31 lb in)

Fuel Tank Filler Hose
