Installation Procedure

  1. Fuel Feed Front Pipe Bracket (1) - Install

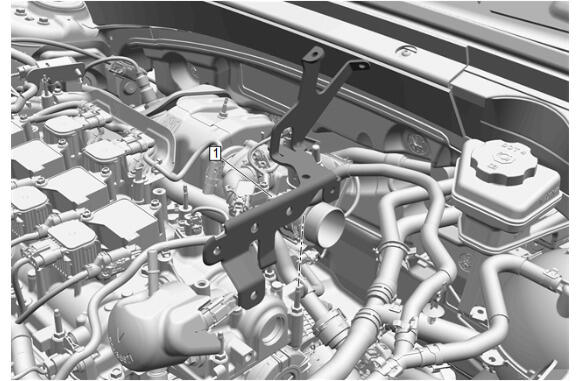

    GM5612820Courtesy of GENERAL MOTORS COMPANY
  2. Engine Coolant Thermostat Housing Pipe Bolt (4) - Install and Tighten 9 N.m (80 lb in)

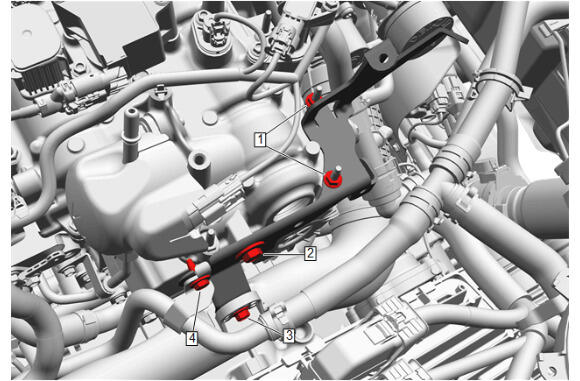

    GM5612819Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Charge Air Cooler Inlet Air Tube Bolt (3) - Install and Tighten 9 N.m (80 lb in)
  4. Fuel Injection Fuel Feed Pipe Bolt (2) - Install and Tighten 22 N.m (16 lb ft)
  5. Fuel Injection Fuel Feed Front Pipe Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
  6. Retainer (1) - Install [4x]

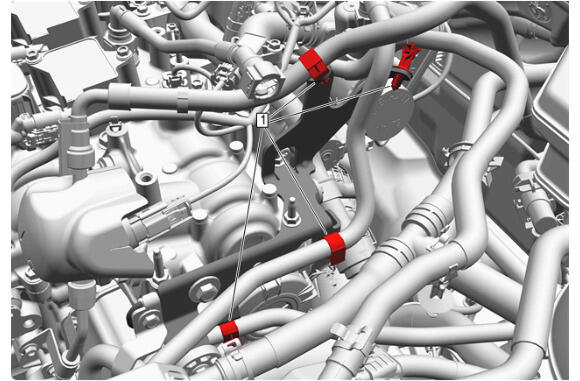

    GM5612818Courtesy of GENERAL MOTORS COMPANY
  7. Turbocharger Outlet Duct Connector - Install - Turbocharger Outlet Duct Connector Replacement
  8. Air Cleaner Outlet Intermediate Duct - Install - Air Cleaner Outlet Intermediate Duct Replacement
