Installation Procedure

  1. Charge Air Cooler (2) - Install
    GM5607739Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Charge Air Cooler Bolt (1) - Install and tighten [2x] 5.1 N.m (45 lb in)

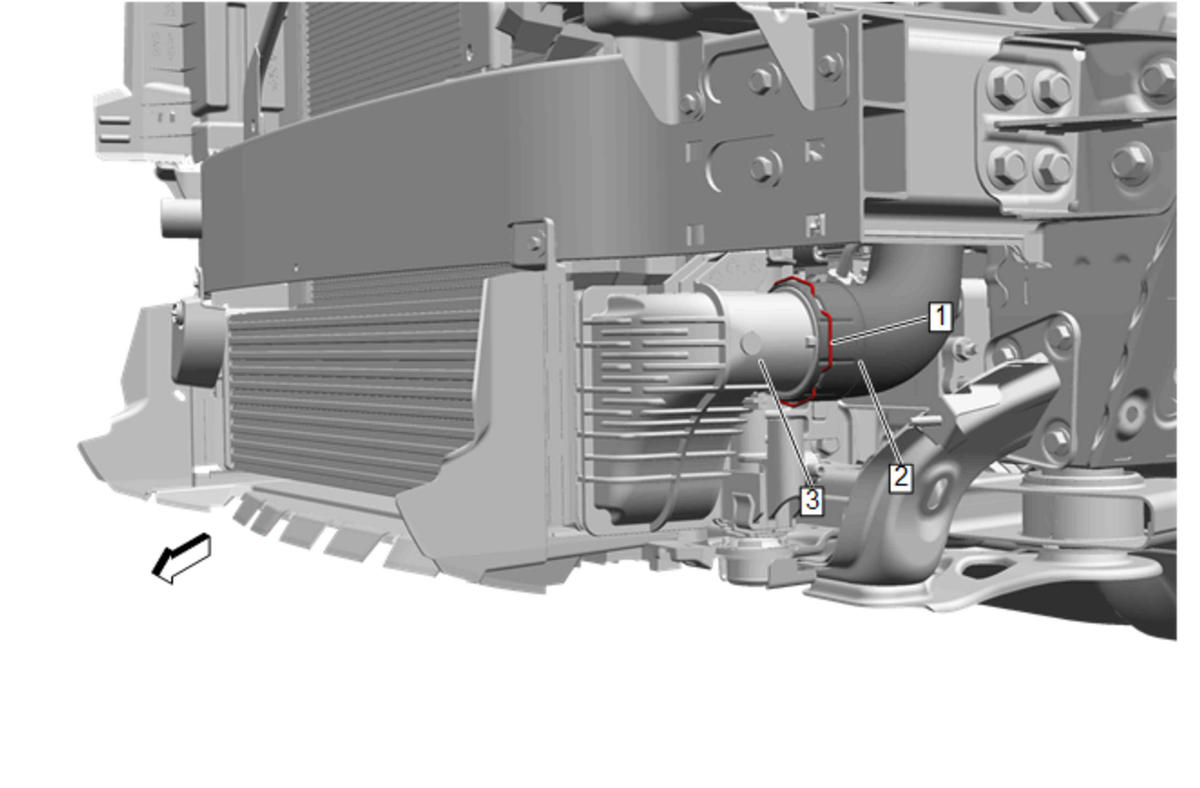

  3. Charge Air Cooler Inlet Air Tube (2) @Charge Air Cooler (3) - Install
    GM5607741Courtesy of GENERAL MOTORS COMPANY
  4. Retainer Spring (1) - Engage

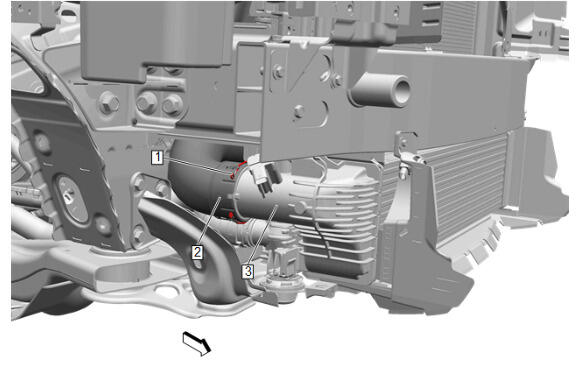

  5. Charge Air Cooler Outlet Air Hose (2) @Charge Air Cooler (3) - Install
    GM5607740Courtesy of GENERAL MOTORS COMPANY
  6. Retainer Spring (1) - Engage
  7. Connect the electrical connector.
  8. Radiator Air Side Upper Baffle - Right Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Right Side
    GM5607735Courtesy of GENERAL MOTORS COMPANY
  9. Radiator Air Side Upper Baffle - Left Side (2) - Install - Radiator Air Side Upper Baffle Replacement - Left Side
    GM5607736Courtesy of GENERAL MOTORS COMPANY
  10. Front Bumper Impact Bar (1) - Install - Front Bumper Impact Bar Replacement
    GM5591548Courtesy of GENERAL MOTORS COMPANY
  11. Radiator Air Lower Baffle (3) - Install - Radiator Air Lower Baffle Replacement
    GM5607737Courtesy of GENERAL MOTORS COMPANY
