Installation Procedure

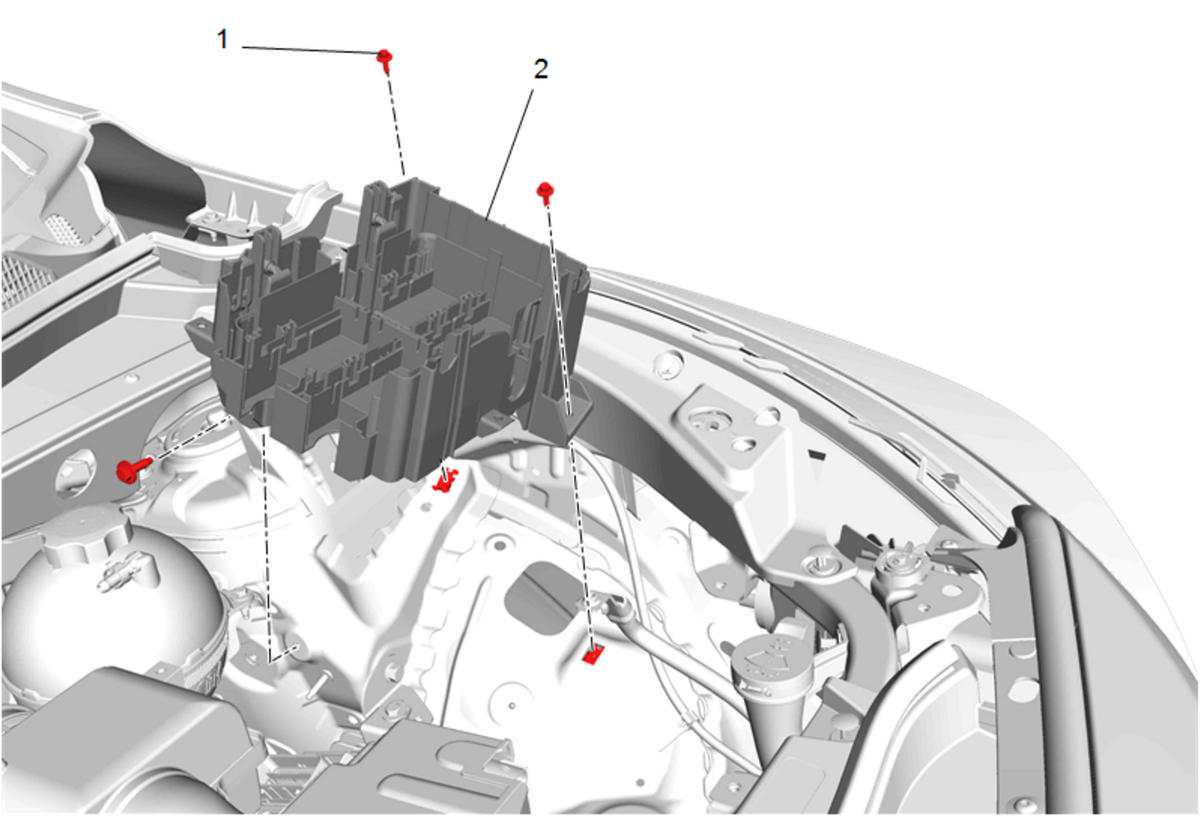

  1. Engine Wiring Harness Fuse Block Bracket (2) - Install
    GM5061346Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

  2. Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
  3. Retainer (1) - Engage [2x]
    GM5061345Courtesy of GENERAL MOTORS COMPANY
  4. Electrical Connector (2) - Install [4x]
  5. Engine Wiring Harness Junction Block (1) - Install - Engine Wiring Harness Junction Block Replacement
    GM4279613Courtesy of GENERAL MOTORS COMPANY
  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
