Installation Procedure

  1. Battery Tray (1) - Install
    GM5055925Courtesy of GENERAL MOTORS COMPANY
  2. Battery Tray Brace Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
    GM5055924Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  3. Battery Tray Support Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)
    GM5055919Courtesy of GENERAL MOTORS COMPANY

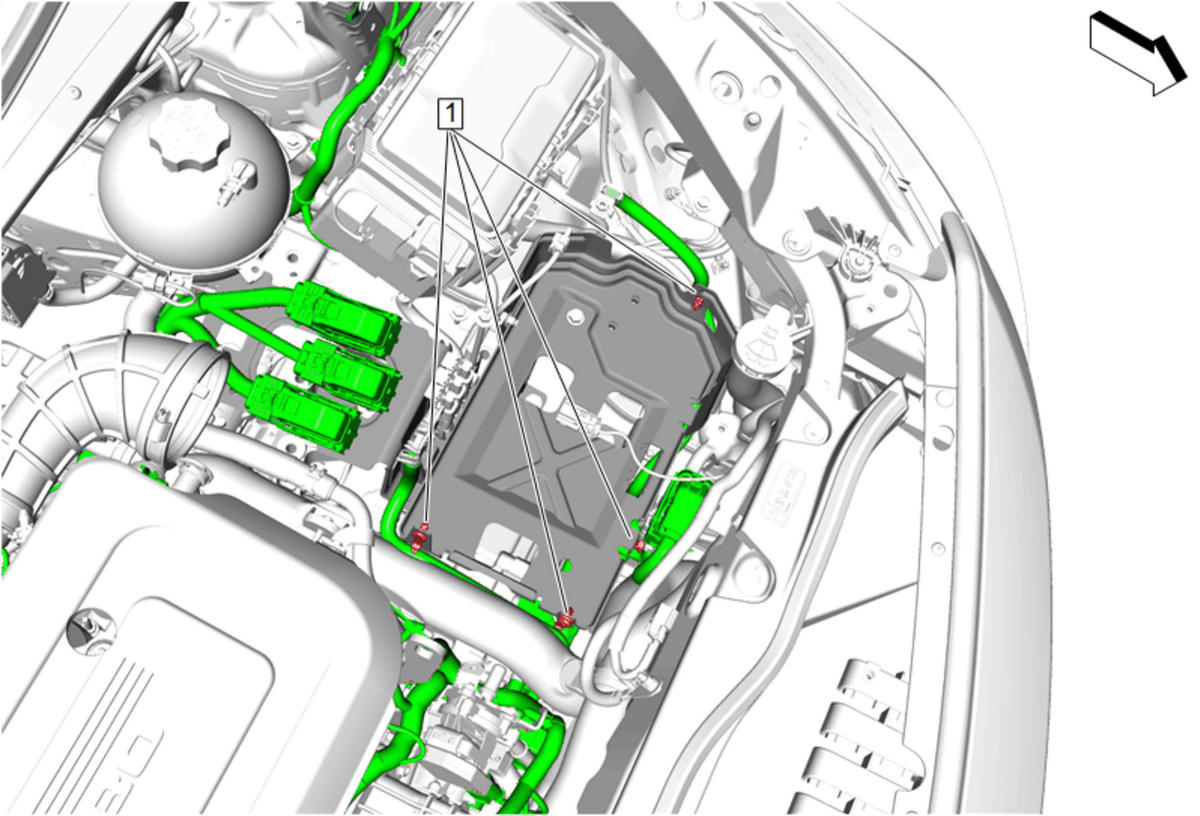

  4. Retainer (1) - Engage [4x]
    GM5055916Courtesy of GENERAL MOTORS COMPANY
  5. Engine Control Module Bracket (2) - Install - Engine Control Module Bracket Replacement
    GM5207075Courtesy of GENERAL MOTORS COMPANY
  6. Battery (1) - Install - Battery Replacement
    GM5053824Courtesy of GENERAL MOTORS COMPANY
  7. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
