Installation Procedure

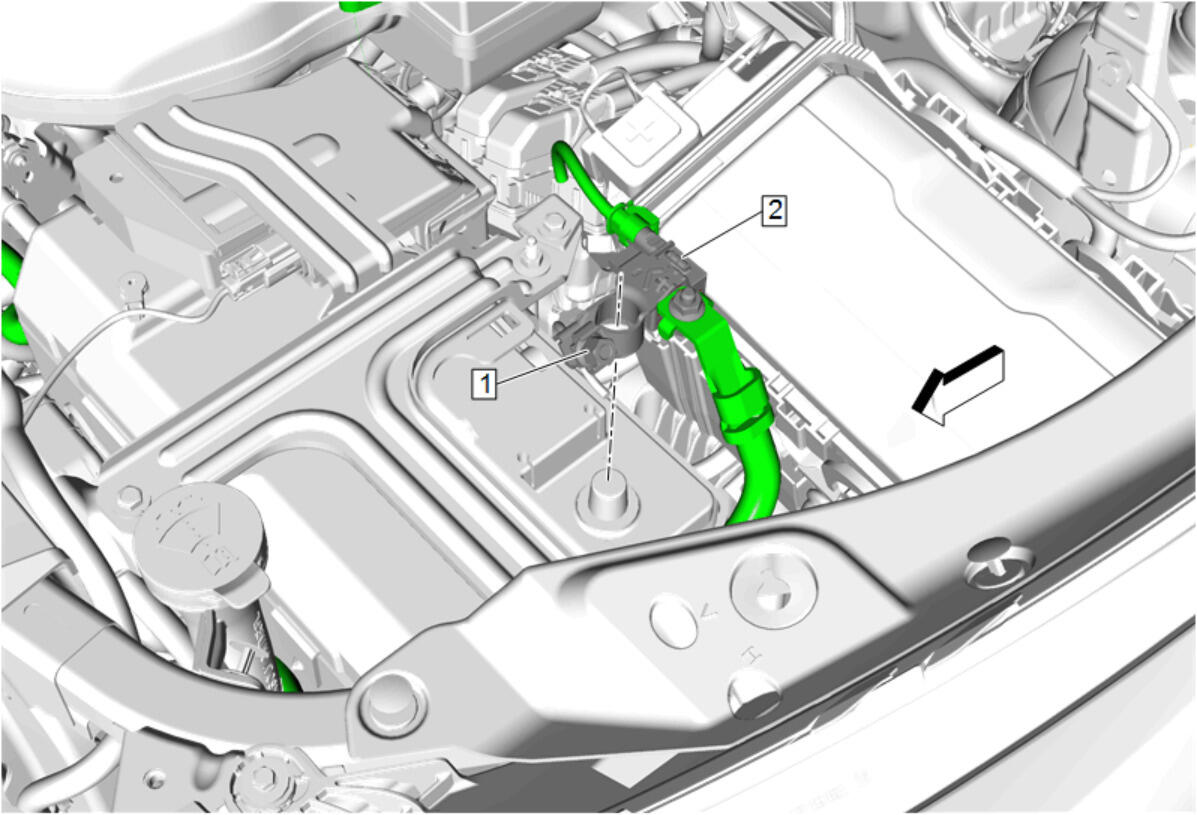

  1. Battery Sensor (2) - Install
    GM5050103Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut (1) - tighten 4.5 N.m (40 lb in)
  3. Battery Negative Cable Terminal Cover (1) - Install
    GM5052693Courtesy of GENERAL MOTORS COMPANY
