Installation Procedure

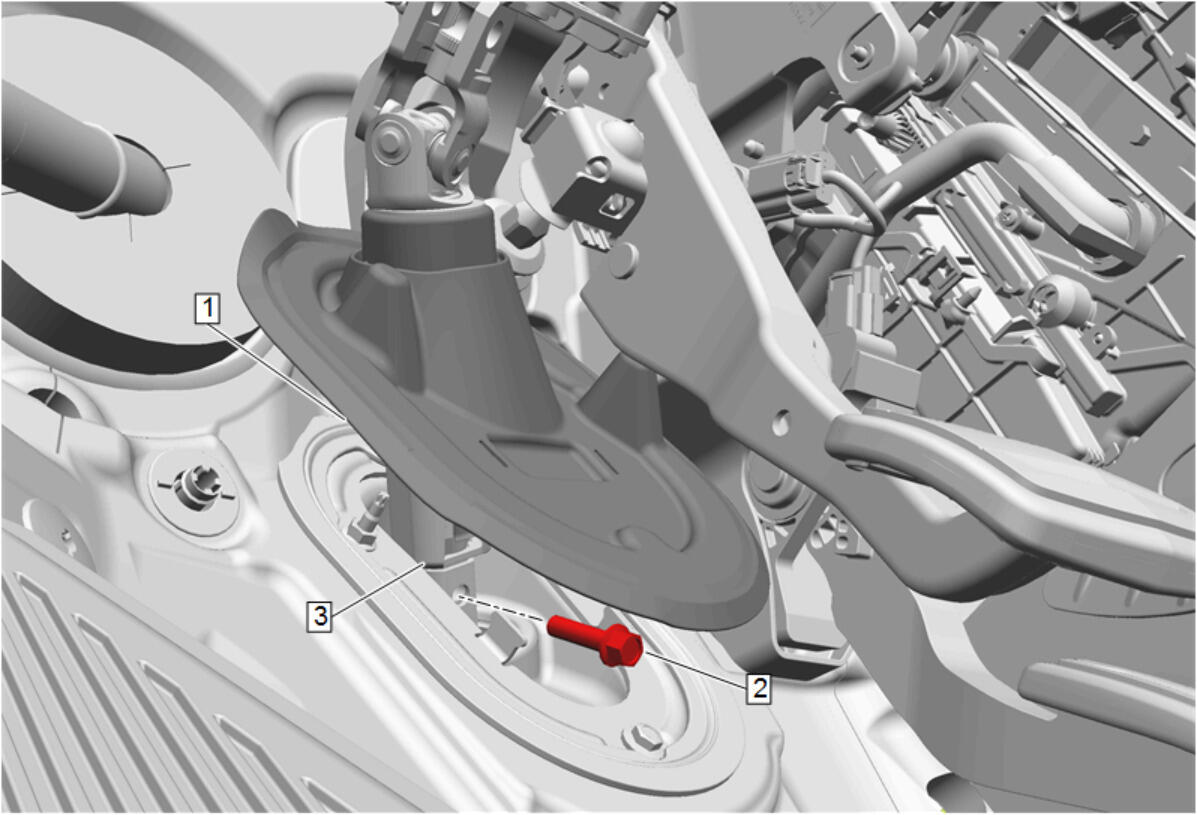

  1. Install the upper intermediate steering shaft and upper intermediate steering shaft boot as an assembly.
    GM5043322Courtesy of GENERAL MOTORS COMPANY
  2. Upper Intermediate Steering Shaft (3) - Install
  3. Prepare the intermediate steering shaft upper bolt (2) for installation.
    1. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (2)
    2. Apply thread locking adhesive to the external threads of the component. (2) Adhesives, Fluids, Lubricants, and Sealers
    4. CAUTION:

    Fastener Caution .

  4. Intermediate Steering Shaft Upper Bolt (2) - Install and tighten 39 N.m (29 lb ft)

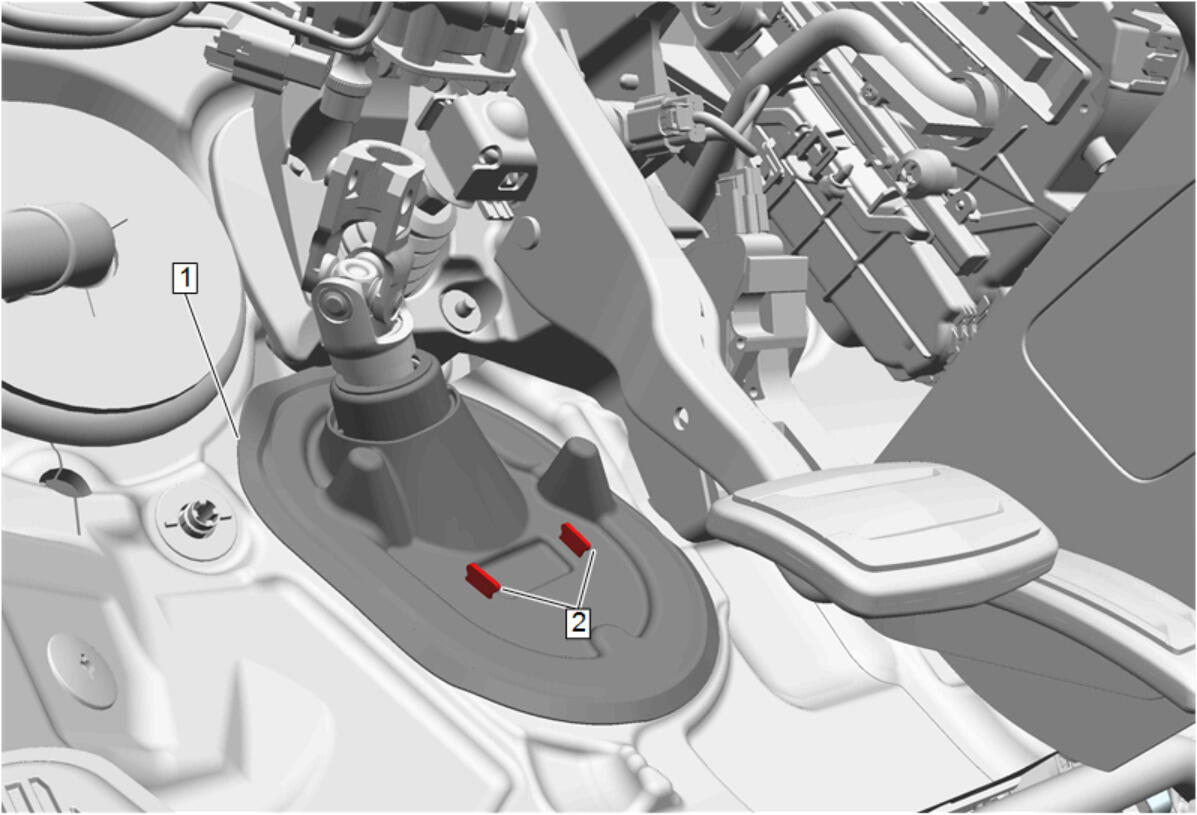

  5. Slide the upper intermediate steering shaft boot (1) downwards and align the boot to the intermediate steering shaft inner boot.
  6. Secure the upper intermediate steering shaft boot (1) with the retaining tabs (2) on the intermediate steering shaft inner boot.
    GM5043321Courtesy of GENERAL MOTORS COMPANY
  7. Upper Intermediate Steering Shaft (1) - Install
    GM5043320Courtesy of GENERAL MOTORS COMPANY
  8. Prepare the intermediate steering shaft upper bolt (1) for installation.
    GM5043316Courtesy of GENERAL MOTORS COMPANY
    1. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (1)
    2. Apply thread locking adhesive to the external threads of the component. (1) Adhesives, Fluids, Lubricants, and Sealers
  9. Upper Intermediate Steering Shaft Upper Bolt (1) - Install and tighten 42 N.m (31 lb ft)
  10. Instrument Panel Knee Bolster - Install - Instrument Panel Knee Bolster Replacement
  11. Remove the CH-42640  Steering Column Anti-Rotation Pin (1) from the steering column lower access hole.
    GM5034927Courtesy of GENERAL MOTORS COMPANY
