Turn Signal Switch Bracket Replacement
Turn Signal Switch Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY
NOTE:

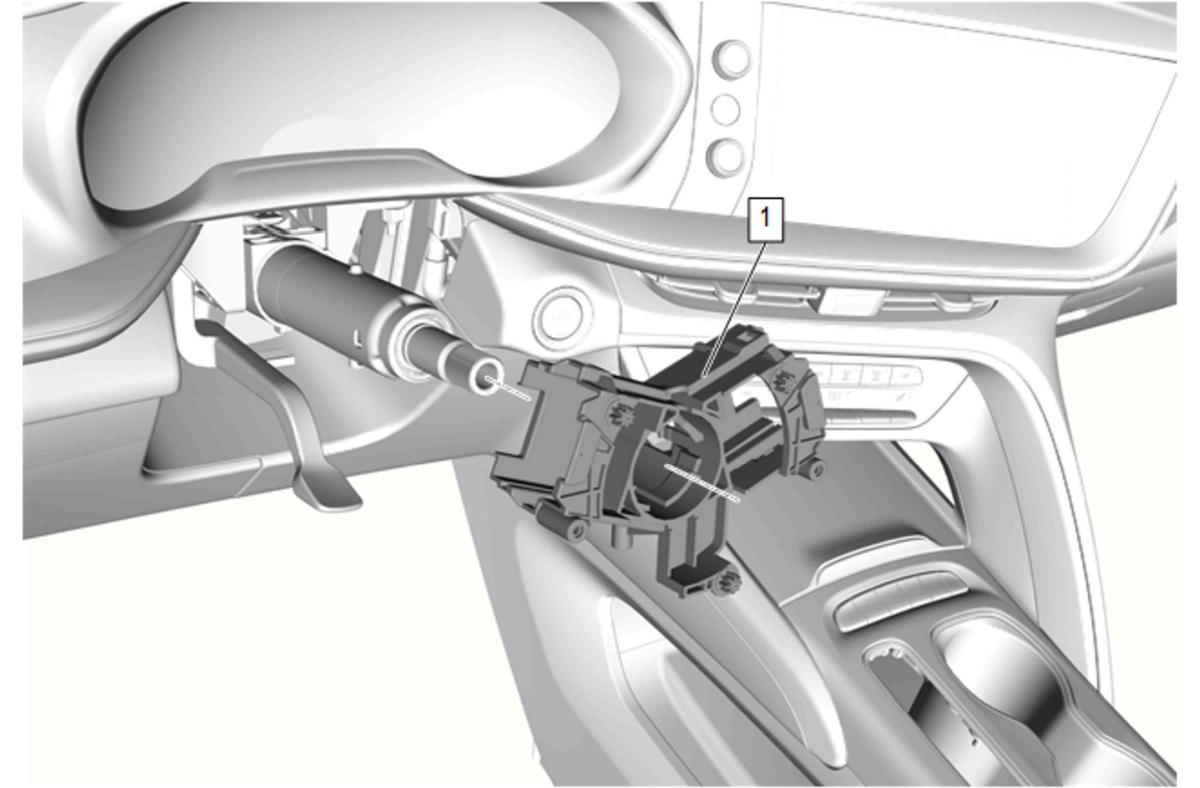

Callouts in the following chart represent components shown in graphic above.
Callout
Component Name
Preliminary Procedures
Steering Wheel Airbag Coil Replacement
Turn Signal Switch Replacement
Windshield Wiper and Windshield Washer Switch Replacement
1
Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
