Removal Procedure
- Install the CH-42640
Steering Column Anti-Rotation Pin (1) in the steering column lower access hole.CAUTION:
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
- The steering column
- The intermediate shaft(s)
- The steering gear
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
- Floor Front Air Outlet Duct - Left Side - Remove - Floor Front Air Outlet Duct Replacement - Left Side
- Upper Intermediate Steering Shaft - Remove - Upper Intermediate Steering Shaft Replacement
- Intermediate Steering Shaft Inner Boot (1) - Remove - Intermediate Steering Shaft Inner Boot Replacement NOTE:
The Intermediate steering shaft inner boot MUST be removed BEFORE removing the intermediate steering shaft boot.
- Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation
- Front Compartment Air Deflector (1) - Remove - Front Compartment Air Deflector Replacement (Base)Front Compartment Air Deflector Replacement (Oil Filter Access)

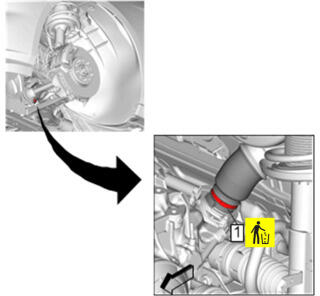

- Cut the intermediate steering shaft boot clamp (1).
DISCARD the clamp.
- Intermediate Steering Shaft (1) - Remove - Intermediate Steering Shaft Replacement
- Remove the intermediate steering shaft boot (1) from the vehicle.
