Installation Procedure

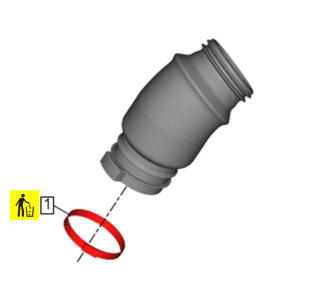

  1. Position a NEW intermediate steering shaft boot clamp (1) onto the intermediate steering shaft boot.
    GM4254411Courtesy of GENERAL MOTORS COMPANY

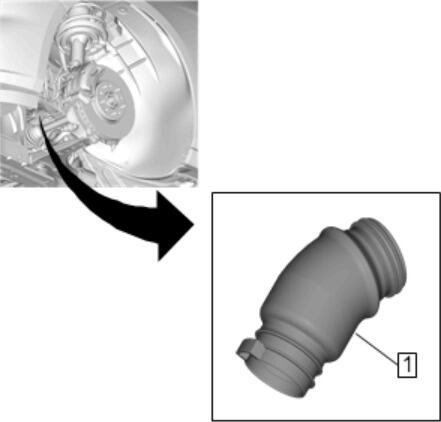

  2. Intermediate Steering Shaft Boot (1) - Install
    GM4249198Courtesy of GENERAL MOTORS COMPANY

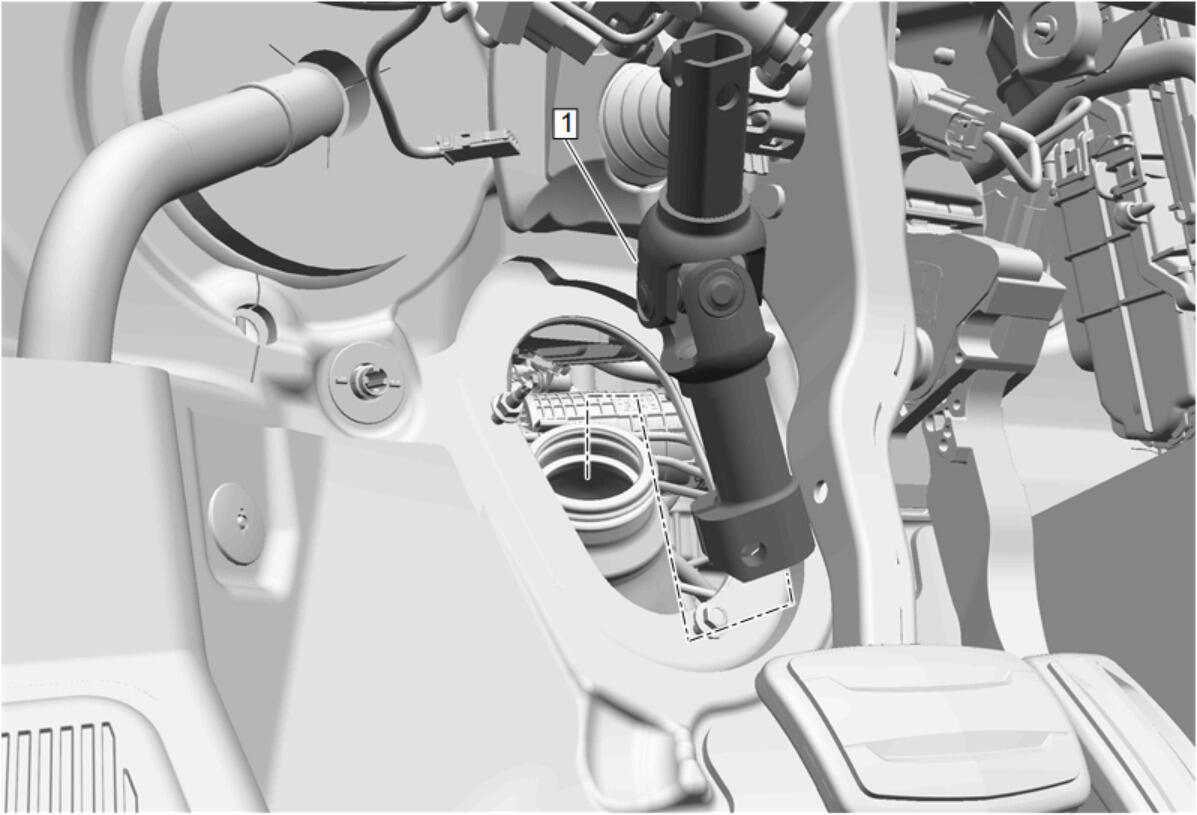

  3. Intermediate Steering Shaft (1) - Install - Intermediate Steering Shaft Replacement
    GM5043366Courtesy of GENERAL MOTORS COMPANY
  4. Slide the intermediate steering shaft boot downwards and onto the steering gear.
    GM4249287Courtesy of GENERAL MOTORS COMPANY

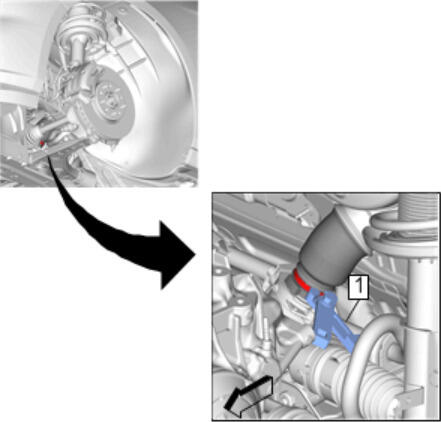

  5. Use the DT-35910  pliers (1) to install the NEW intermediate steering shaft boot clamp.
  6. Front Compartment Air Deflector (1) - Install - Front Compartment Air Deflector Replacement (Base)Front Compartment Air Deflector Replacement (Oil Filter Access)
    GM5583929Courtesy of GENERAL MOTORS COMPANY
  7. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation

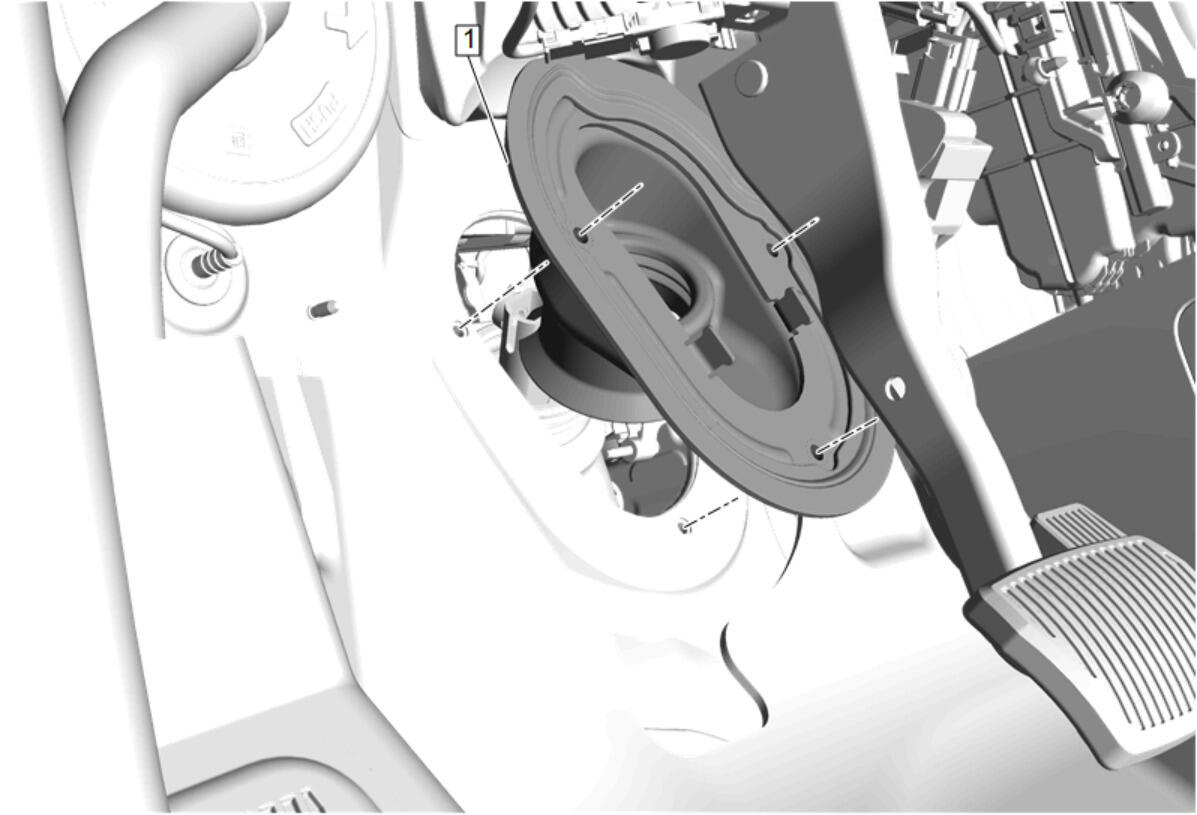

  8. Intermediate Steering Shaft Inner Boot (1) - Install - Intermediate Steering Shaft Inner Boot Replacement
    GM5043350Courtesy of GENERAL MOTORS COMPANY
  9. Upper Intermediate Steering Shaft - Install - Upper Intermediate Steering Shaft Replacement
  10. Floor Front Air Outlet Duct - Left Side - Install - Floor Front Air Outlet Duct Replacement - Left Side

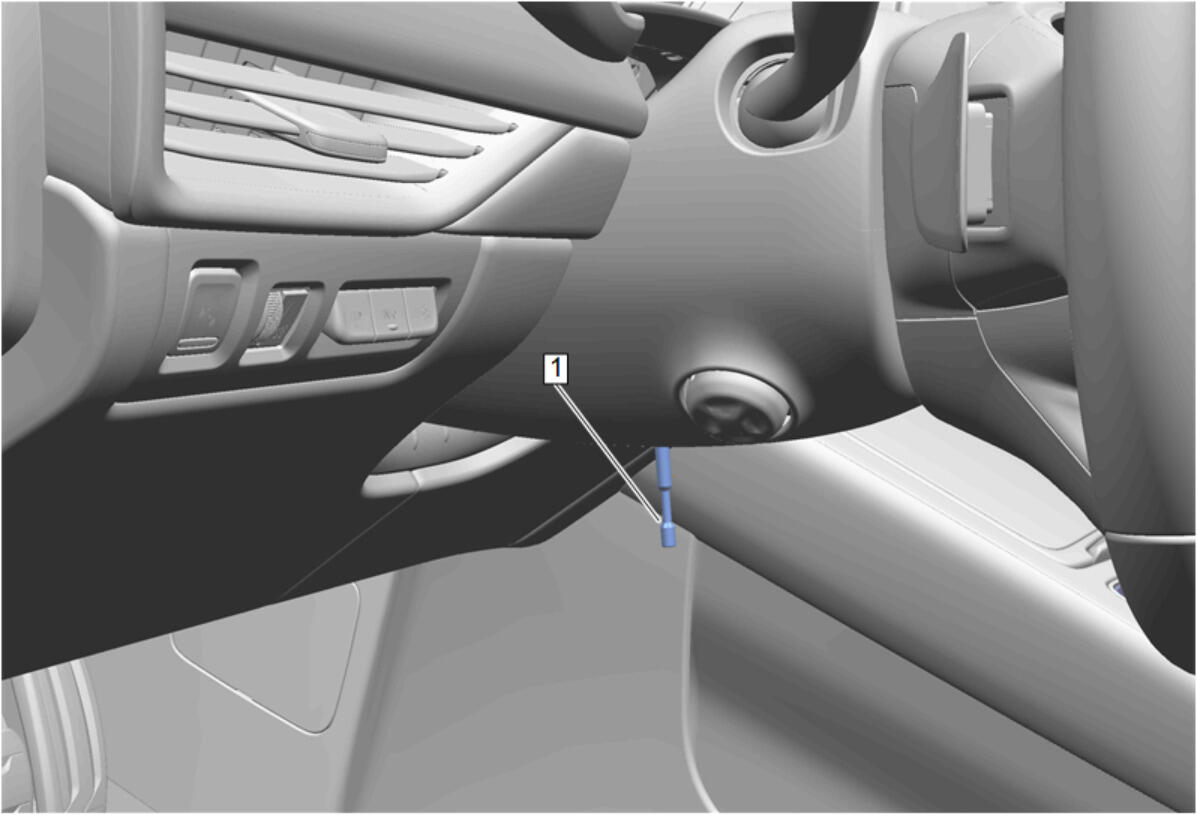

  11. Remove the CH-42640  Steering Column Anti-Rotation Pin (1) from the steering column lower access hole.
    GM5034927Courtesy of GENERAL MOTORS COMPANY
