Column Lock Module Replacement

Courtesy of GENERAL MOTORS COMPANY

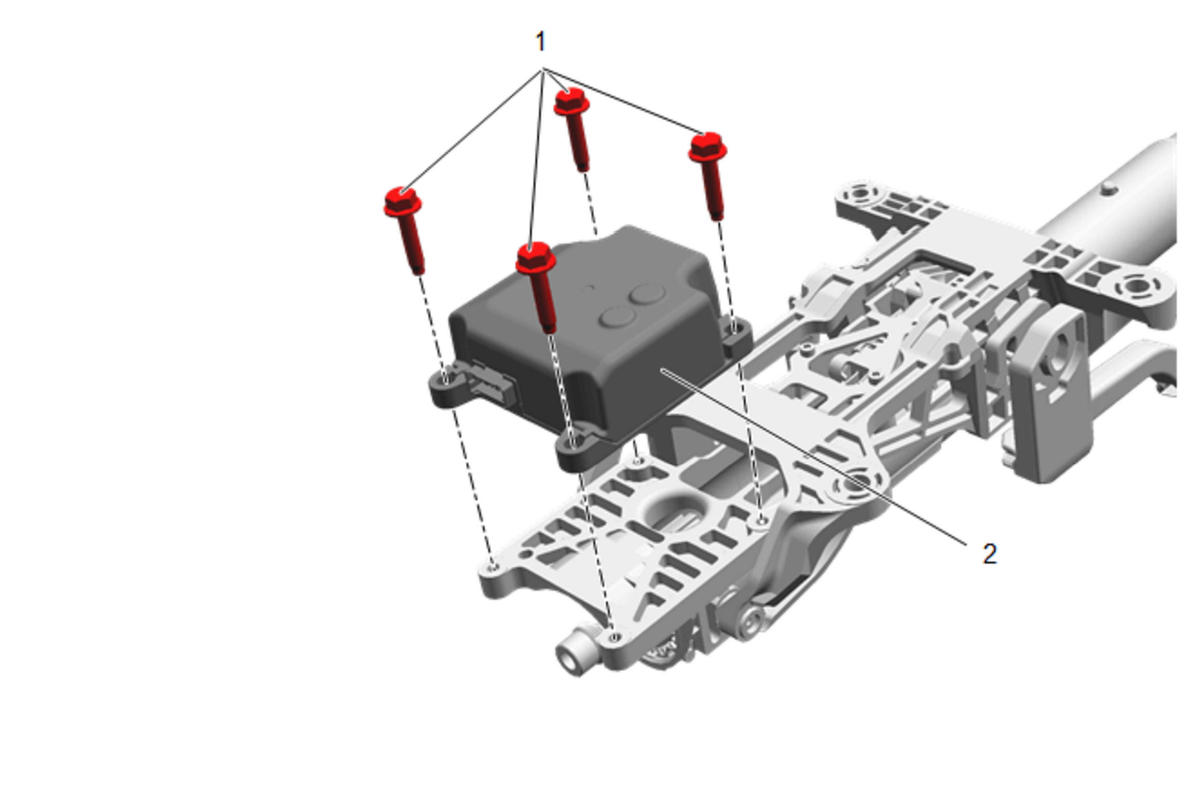

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - FUSE BLOCK VIEWS (1 OF 2) or FUSE BLOCK VIEWS (2 OF 2) Steering Column Replacement
1	Steering Column Lock Control Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References

Callout

Component Name

Preliminary Procedure

With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - FUSE BLOCK VIEWS (1 OF 2) or FUSE BLOCK VIEWS (2 OF 2)
Steering Column Replacement

Steering Column Lock Control Module Bolt [4x]

CAUTION:

Tighten
9 N.m (80 lb in)

Steering Column Lock Control Module
Procedure
Program the steering column lock control module. Control Module References
