Installation Procedure

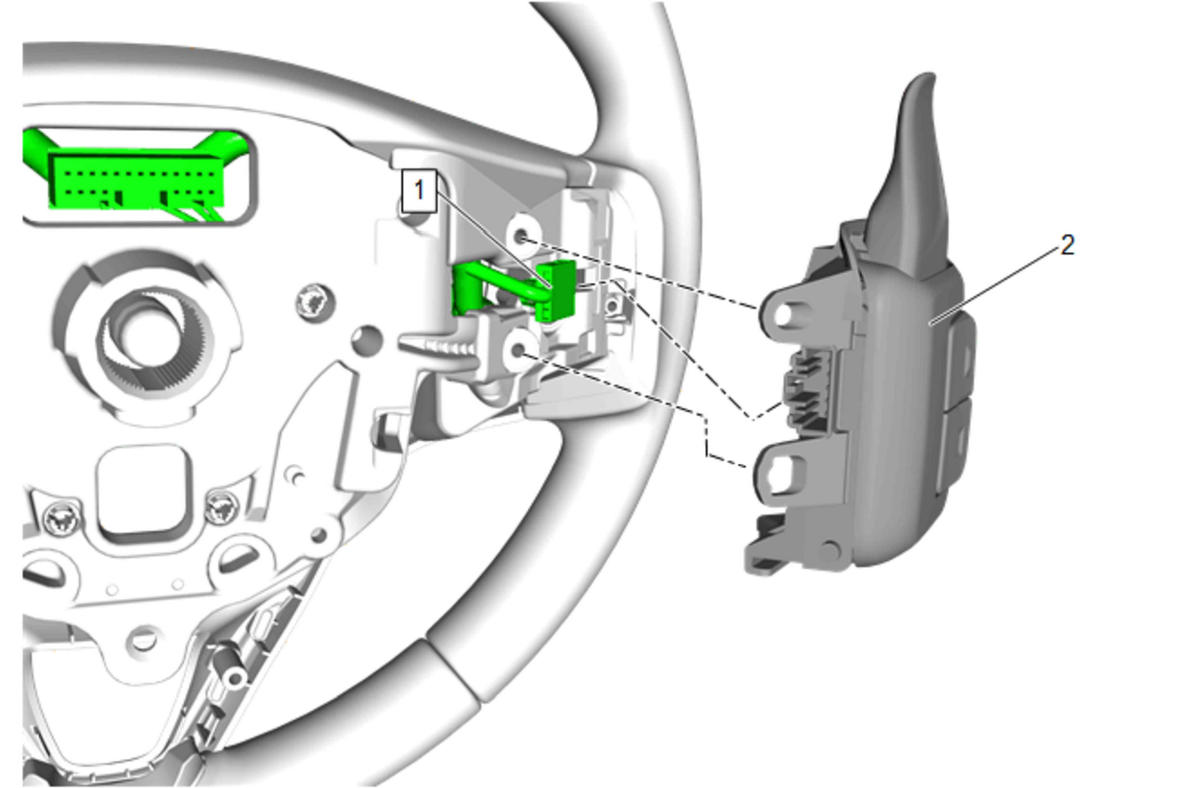

GM5548997Courtesy of GENERAL MOTORS COMPANY
  1. Automatic Transmission manual Shift Auxiliary Position Switch (2) - Instal
  2. Connect the electrical connector. (1)

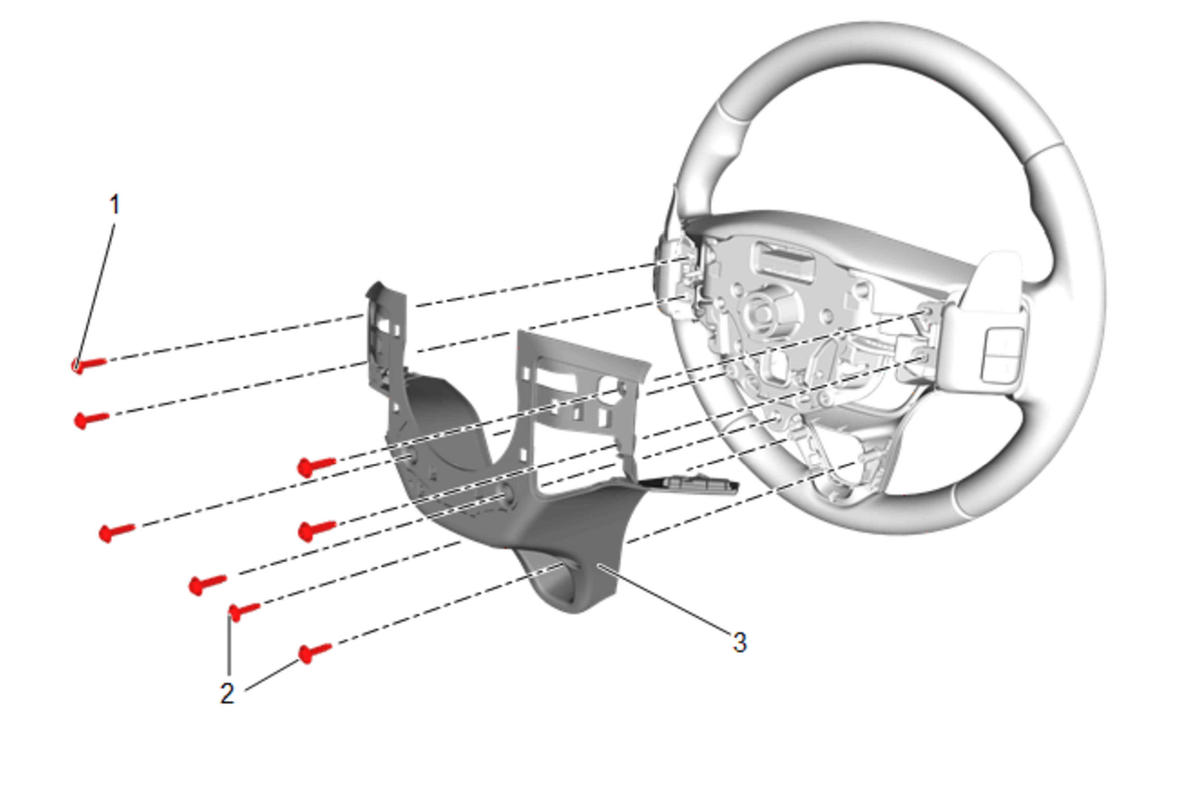

    GM5548996Courtesy of GENERAL MOTORS COMPANY
  3. Steering Wheel Shroud (3) Install - Steering Wheel Shroud Replacement
    GM5548847Courtesy of GENERAL MOTORS COMPANY
  4. Steering Wheel (1) Install - Steering Wheel Replacement

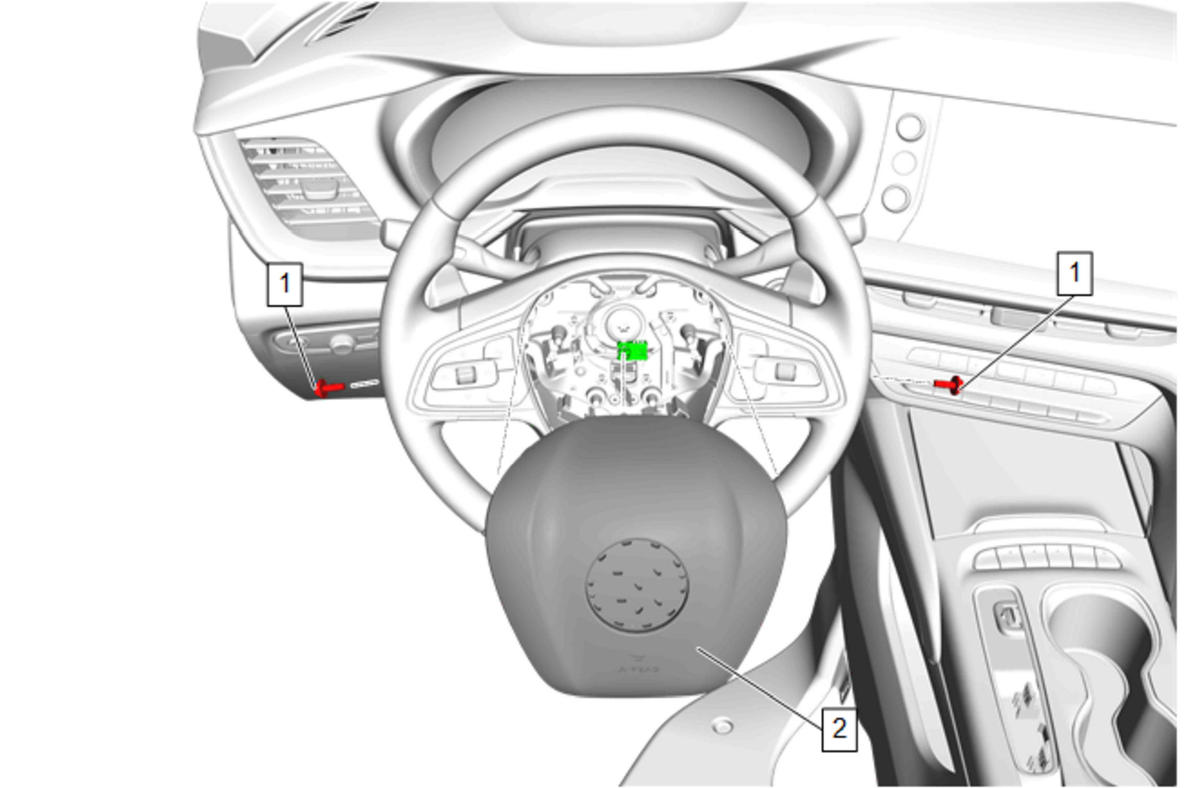

    GM5548842Courtesy of GENERAL MOTORS COMPANY
  5. Steering Wheel Airbag (2) Install - Steering Wheel Replacement
    GM5548842Courtesy of GENERAL MOTORS COMPANY

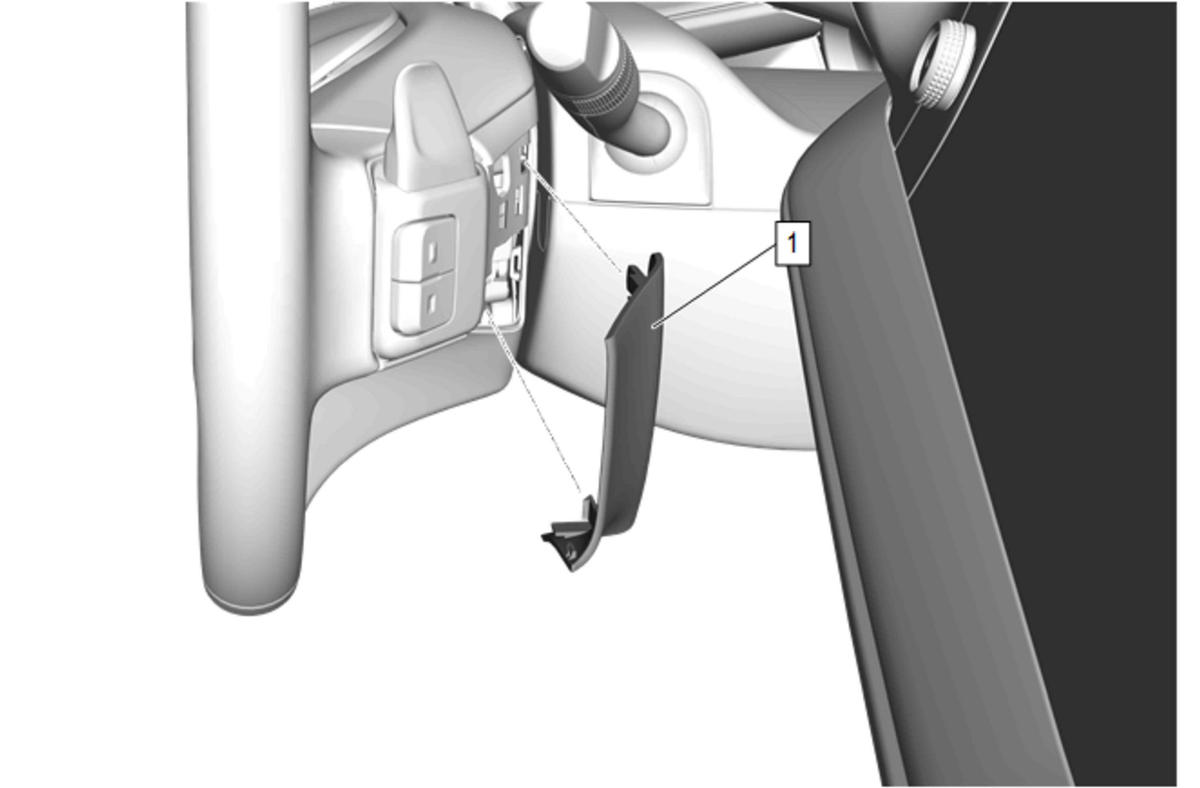

    GM5548843Courtesy of GENERAL MOTORS COMPANY
  6. Install the left and right side of steering wheel airbag access hole covers (1). - Steering Wheel Airbag Access Hole Cover Replacement
