Removal Procedure

WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Disable the SIR system. SIR Disabling and Enabling
Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement
Turn the steering wheel to the straight ahead position.
Steering Wheel - Remove - Steering Wheel Replacement
Steering Column Control Module - Remove - Steering Column Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY

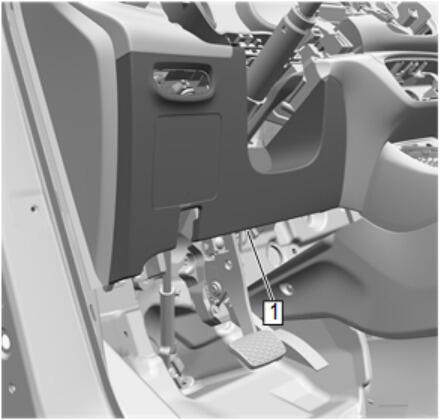

Instrument Panel Knee Bolster (1) - Remove - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

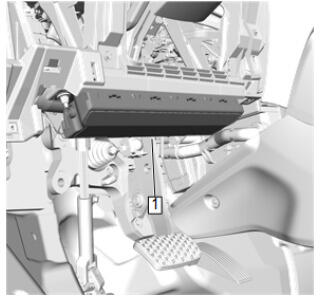

Instrument Panel Lower Airbag - Driver Side (1) - Remove - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

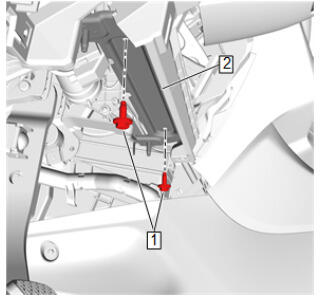

Instrument Panel Lower Airbag Bracket Bolt (1) - Remove [2x]
Instrument Panel Lower Airbag Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

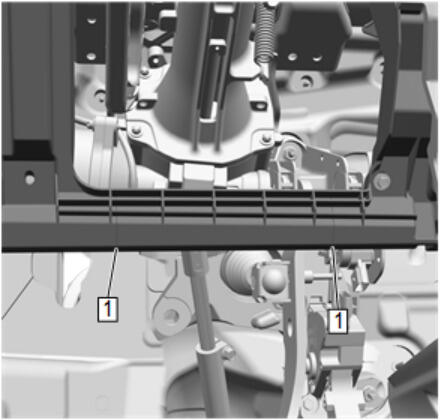

NOTE:
The cut line is marked on the instrument panel brace for the removal or installation of steering column.

Cut out the instrument panel brace along the cut line (1) and DISCARD the brace.
Intermediate Steering Shaft @ Vehicle - Remove - Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

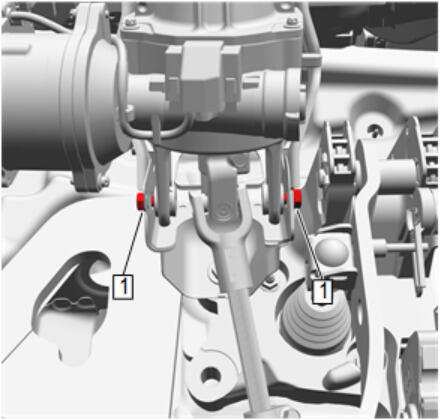

Steering Column Lower Support Bracket Bolt (1) - Loosen [2x]
Courtesy of GENERAL MOTORS COMPANY

Steering Column Nut (1) - Remove [2x]
Swing down the steering column to disconnect the electric connectors.
Courtesy of GENERAL MOTORS COMPANY

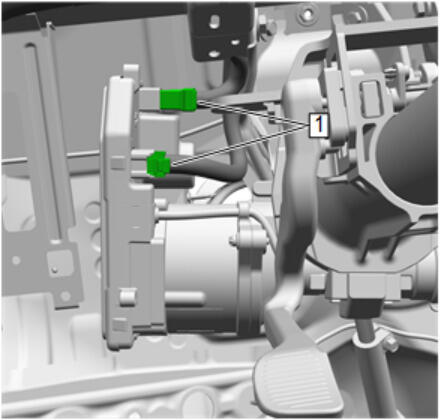

Electrical Connector (1) - Disconnect [2x]
Courtesy of GENERAL MOTORS COMPANY

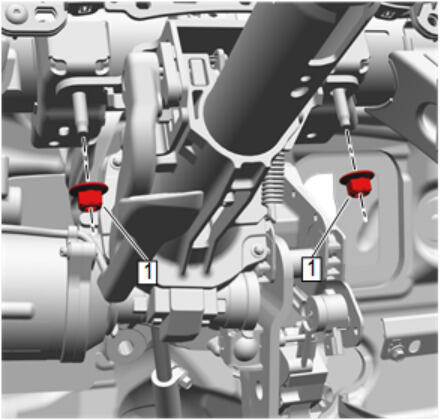

Steering Column Lower Support Bracket Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

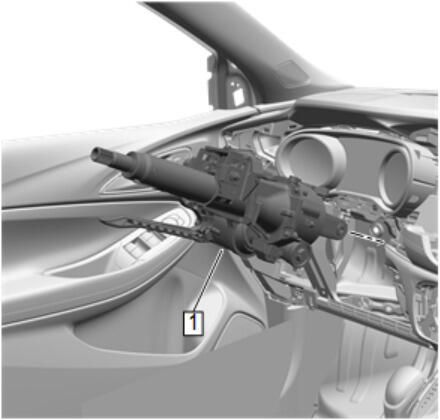

Steering Column (1) @ Vehicle - Remove
