Sunroof Window Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

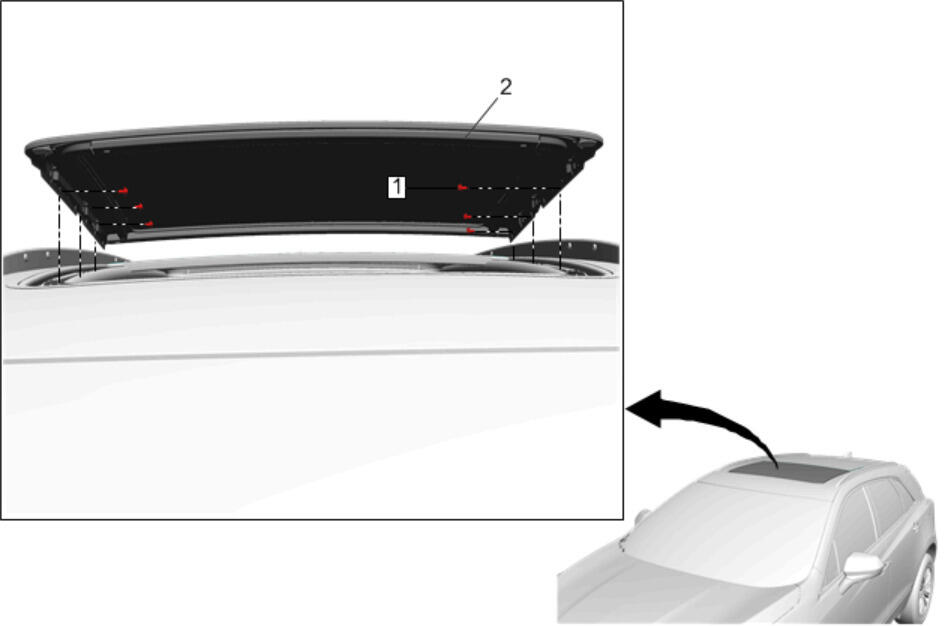

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Sunroof Window Screw [6x] CAUTION: Refer to Fastener Caution . Procedure Pull down on the inner sunroof window seal to gain access to the screws. Tighten 1.8 N.m (16 lb in)
2	Sunroof Window Procedure Lift the sunroof window out of the frame. Sunroof Window Height and Opening Fit Adjustment Water test and inspect sunroof for proper operation.

Callout

Component Name

Sunroof Window Screw [6x]

CAUTION:

Refer to Fastener Caution .

Procedure
Pull down on the inner sunroof window seal to gain access to the screws.
Tighten
1.8 N.m (16 lb in)

Sunroof Window

Procedure

Lift the sunroof window out of the frame.
Sunroof Window Height and Opening Fit Adjustment
Water test and inspect sunroof for proper operation.
