Removal Procedure
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Front Compartment Air Deflector (1) - Remove - Front Compartment Air Deflector Replacement (Base)
, or Front Compartment Air Deflector Replacement (Oil Filter Access)

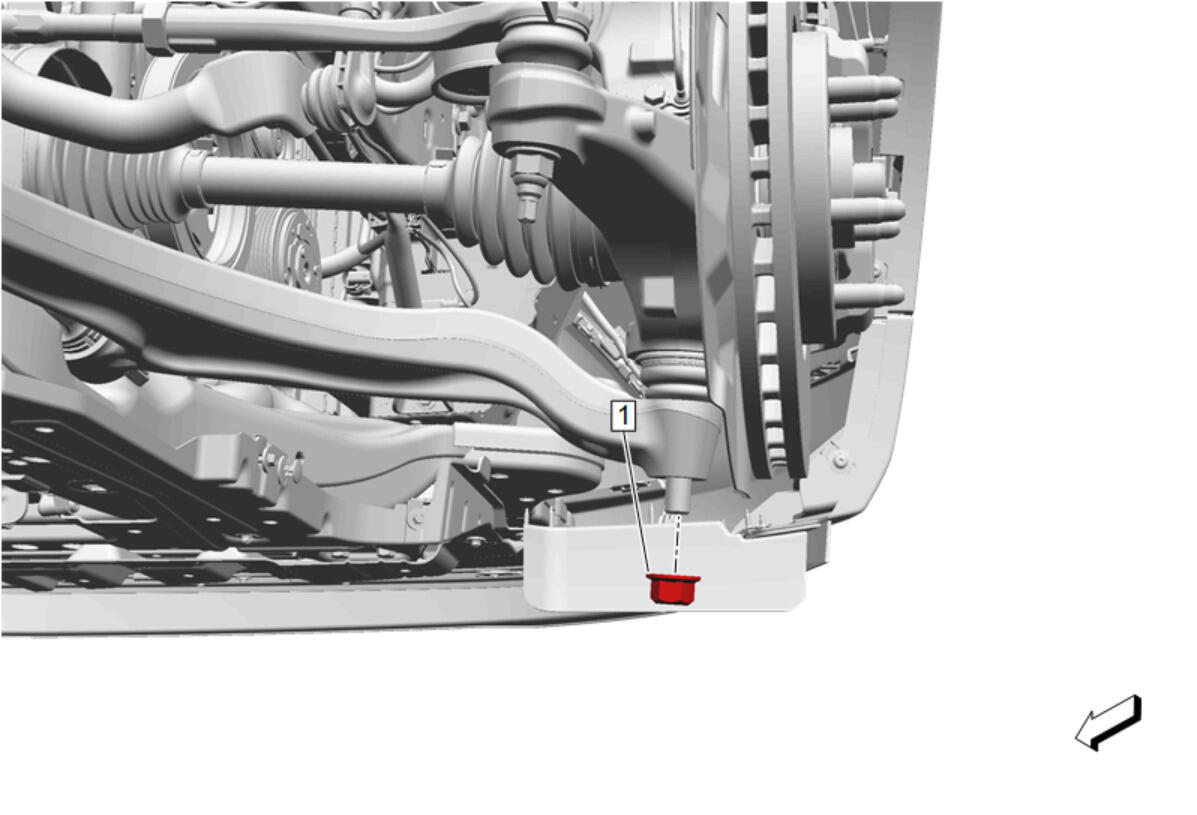

- Steering Knuckle Nut (1) - Remove

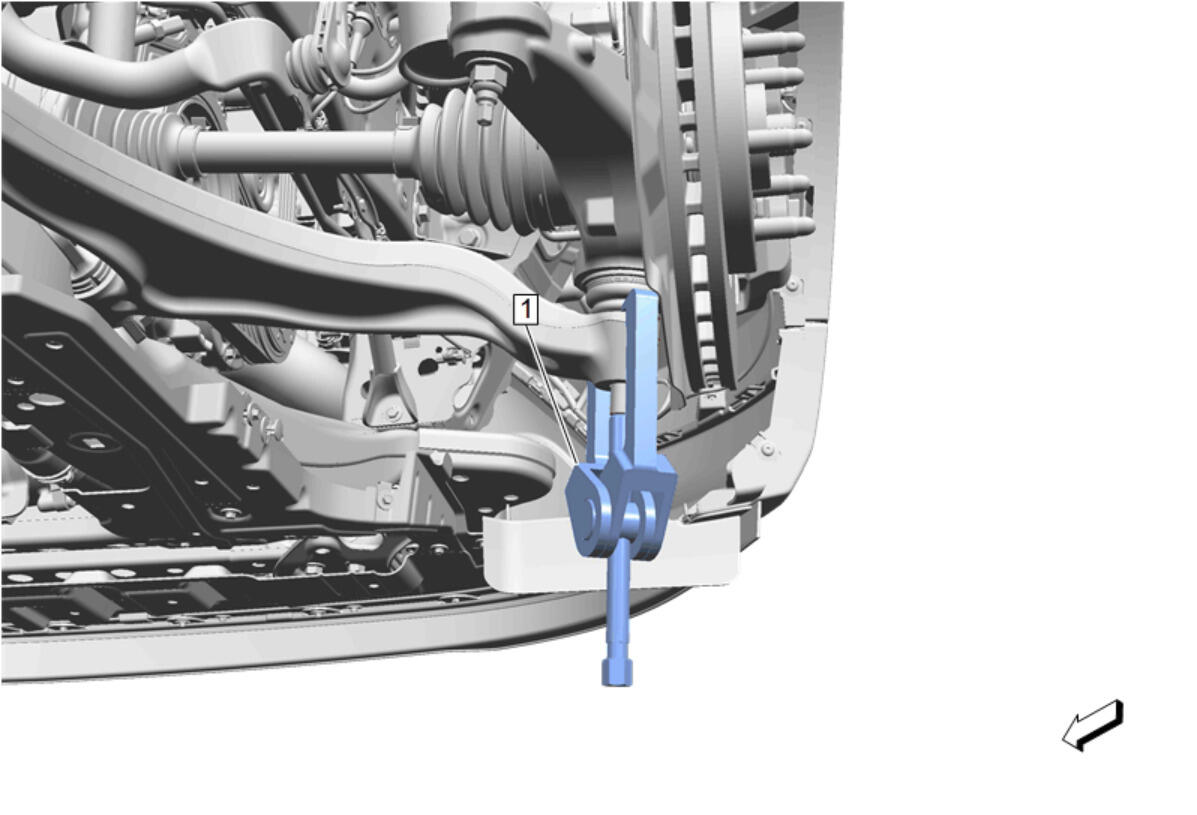

- Use the CH-24319-B
Universal Steering Linkage and Tie Rod Puller (1) to separate the front lower control arm from the steering knuckle.

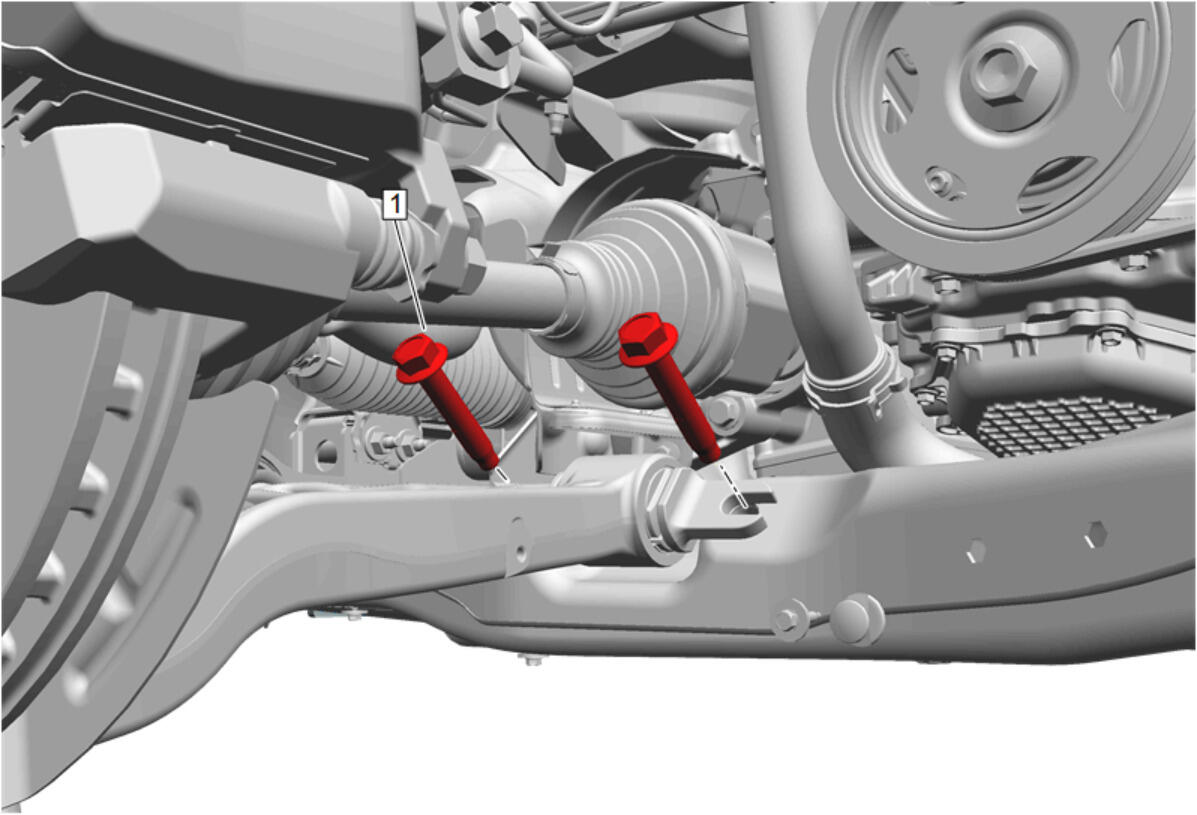

- Front Lower Control Arm Front Bolt (1) - Remove and DISCARD [2x]

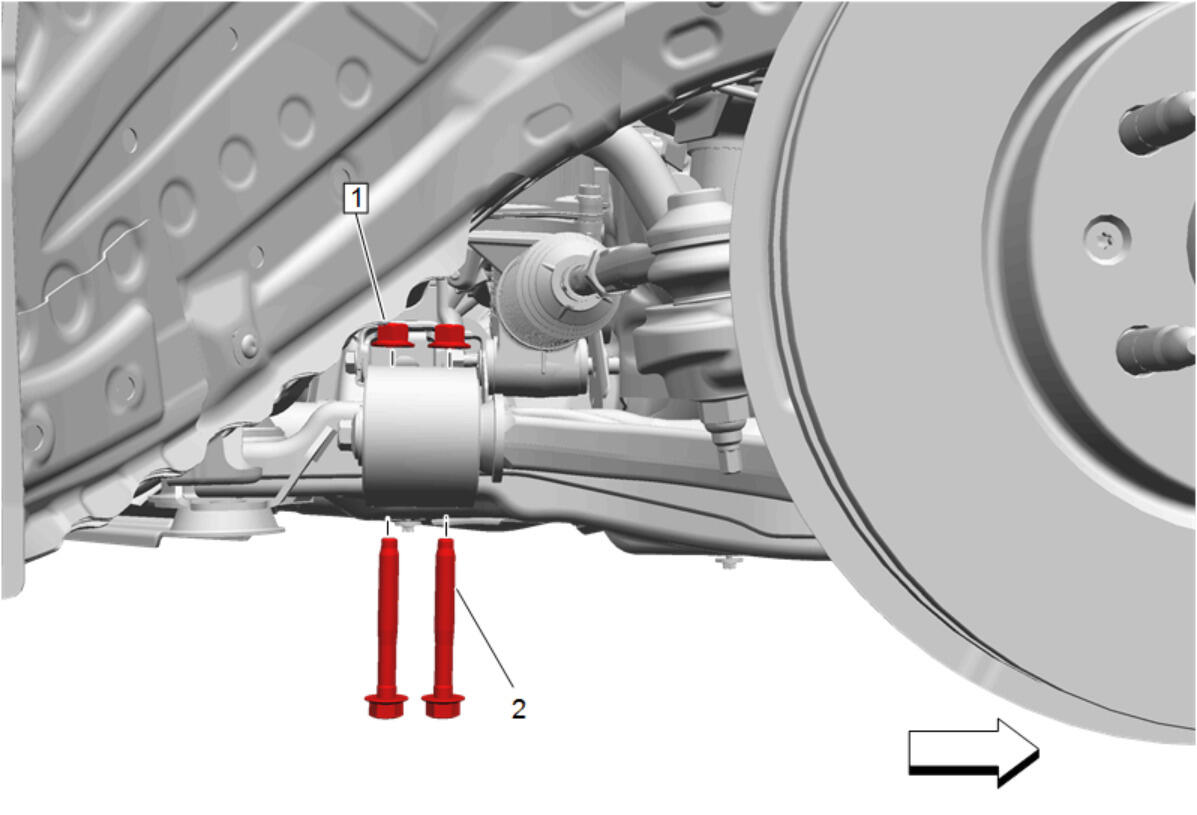

- Front Lower Control Arm Rear Nut (1) - Remove [2x]
- Front Lower Control Arm Rear Bolt (2) - Remove and DISCARD [2x]

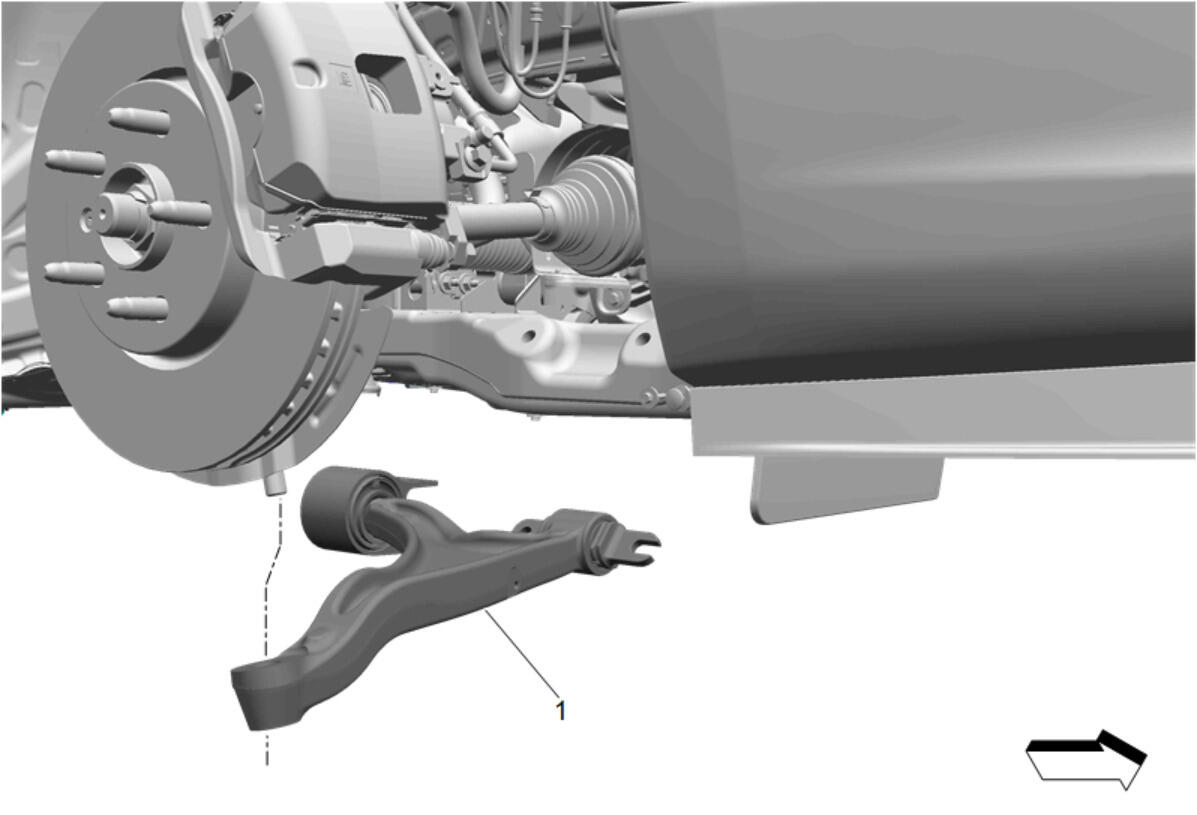

- Remove the front lower control arm (1).
