Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

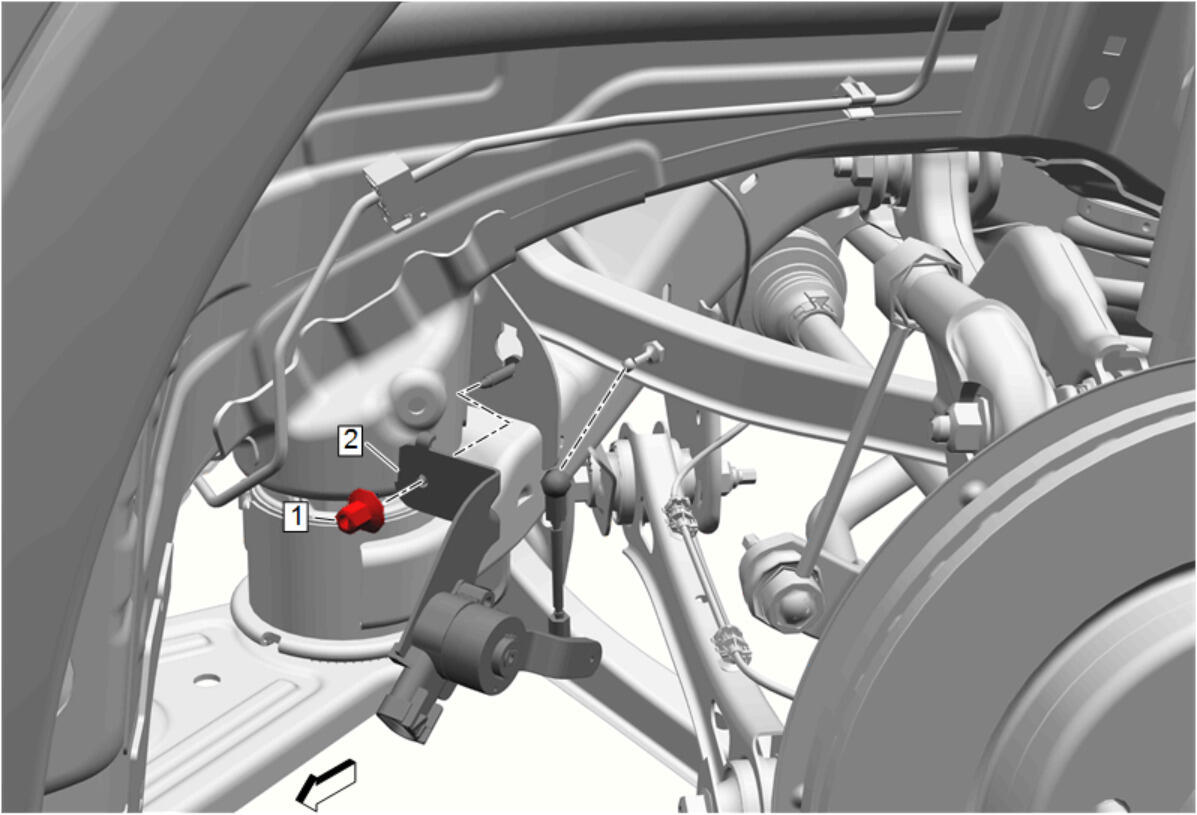

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Lifting and Jacking the Vehicle Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation Rear Wheelhouse Liner Replacement
1	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Procedure Disconnect the electrical connector. Using a suitable tool, separate the ball and socket. Lower the vehicle.

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Lifting and Jacking the Vehicle
Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Rear Wheelhouse Liner Replacement

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Procedure

Disconnect the electrical connector.
Using a suitable tool, separate the ball and socket.
Lower the vehicle.
