Rear Combination Lamp Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

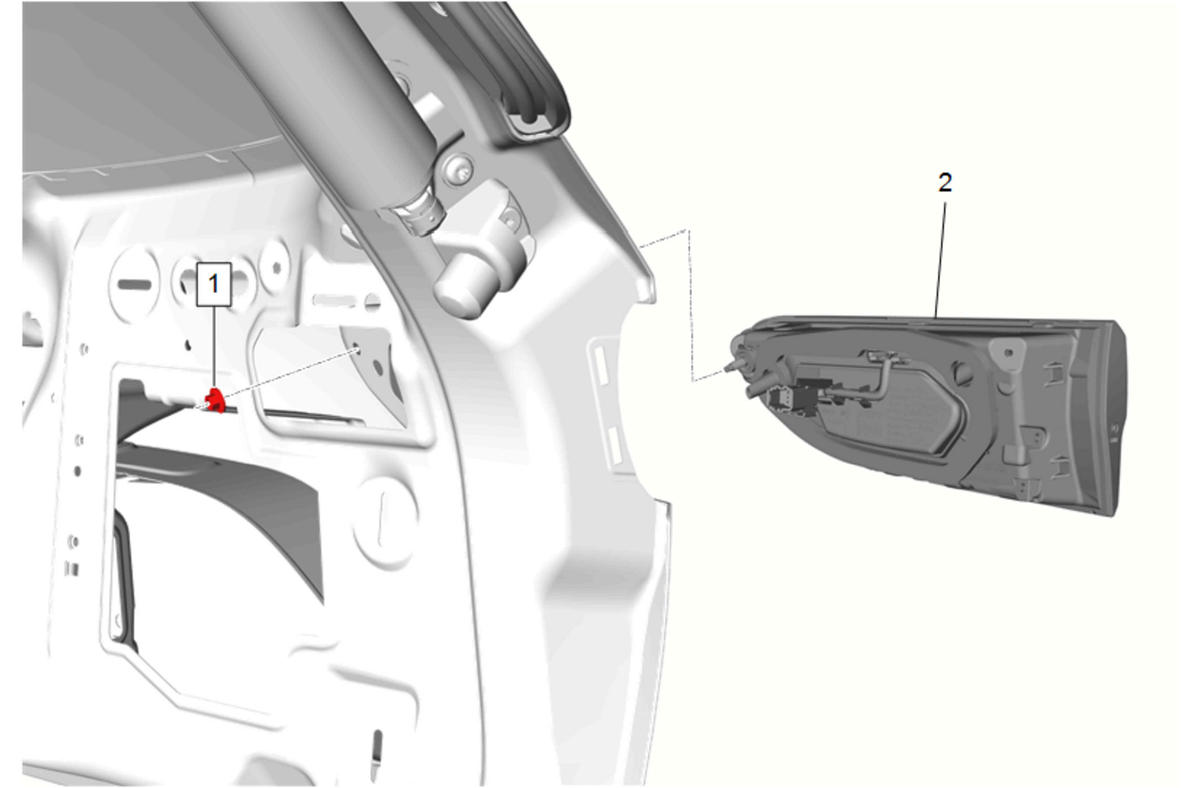

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Liftgate Lower Trim Finish Panel Replacement Rear Closure Auxiliary Signal Lamp Trim Panel Replacement
1	Rear Combination Lamp Nut CAUTION: Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Rear Combination Lamp Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Liftgate Lower Trim Finish Panel Replacement
Rear Closure Auxiliary Signal Lamp Trim Panel Replacement

Rear Combination Lamp Nut

CAUTION:

Fastener Caution

Tighten
4.7 N.m (42 lb in)

Rear Combination Lamp
Procedure
Disconnect the electrical connectors.
