Rear Body Structure Stop Lamp Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

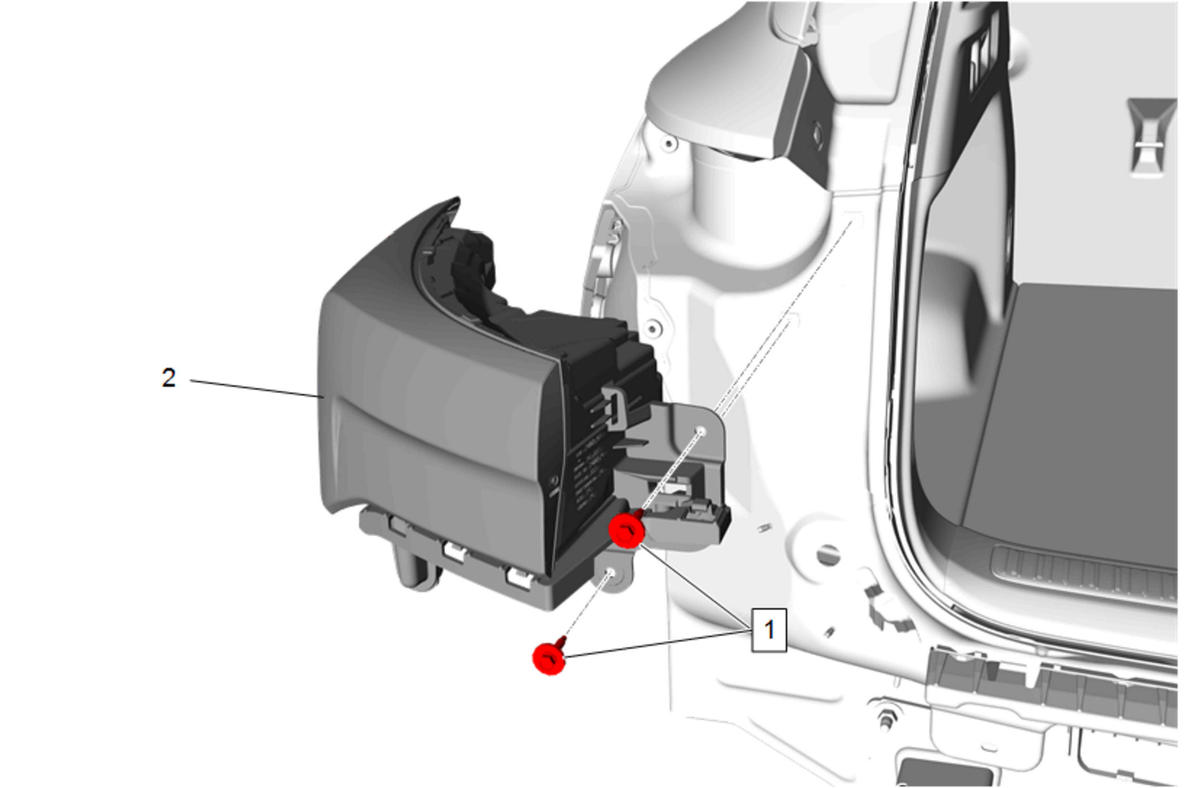

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Back Body Opening Side Gutter Replacement Rear Bumper Fascia Replacement
1	Rear Body Structure Stop Lamp Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Body Structure Stop Lamp Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Back Body Opening Side Gutter Replacement
Rear Bumper Fascia Replacement

Rear Body Structure Stop Lamp Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Rear Body Structure Stop Lamp

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
