Headlamp Bracket Replacement
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

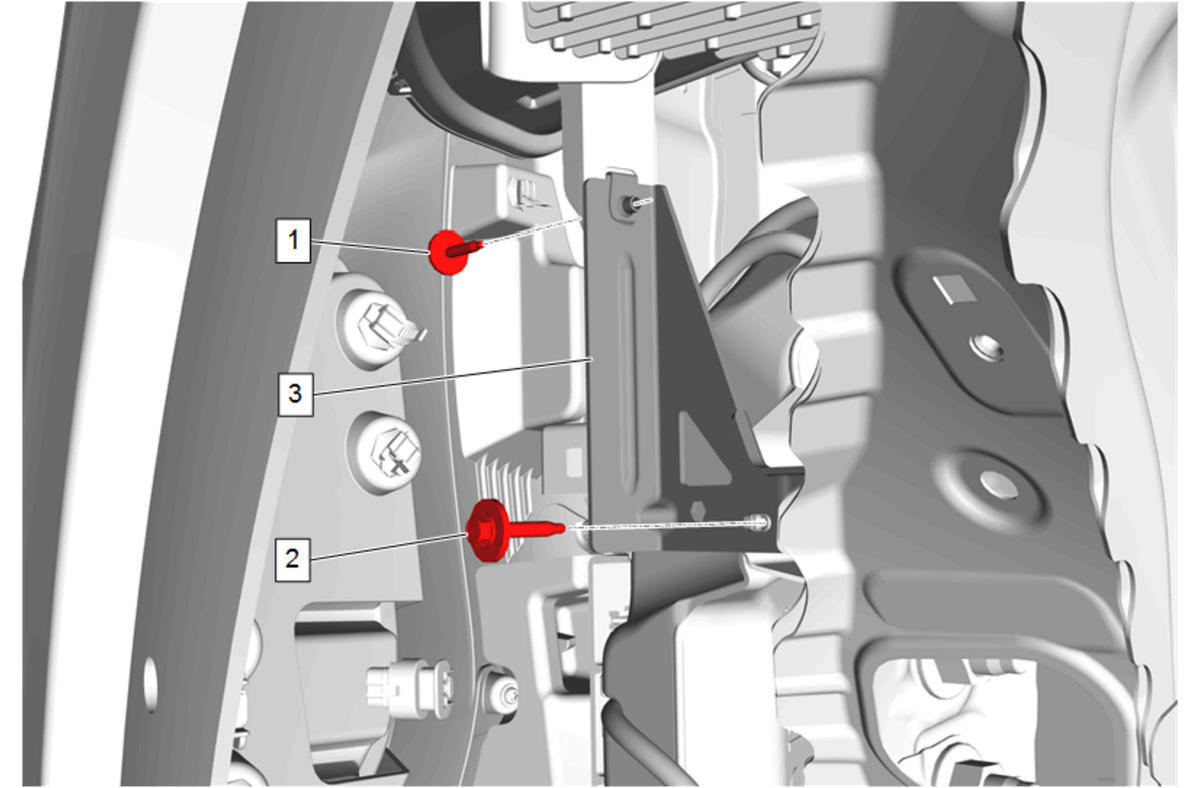

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner Replacement |
|
| 1 | Headlamp Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Headlamp Bracket Bolt Tighten 2.5 N.m (22 lb in) |
| 3 | Headlamp Bracket |
