Front Suspension Automatic Forward Lighting Position Sensor Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

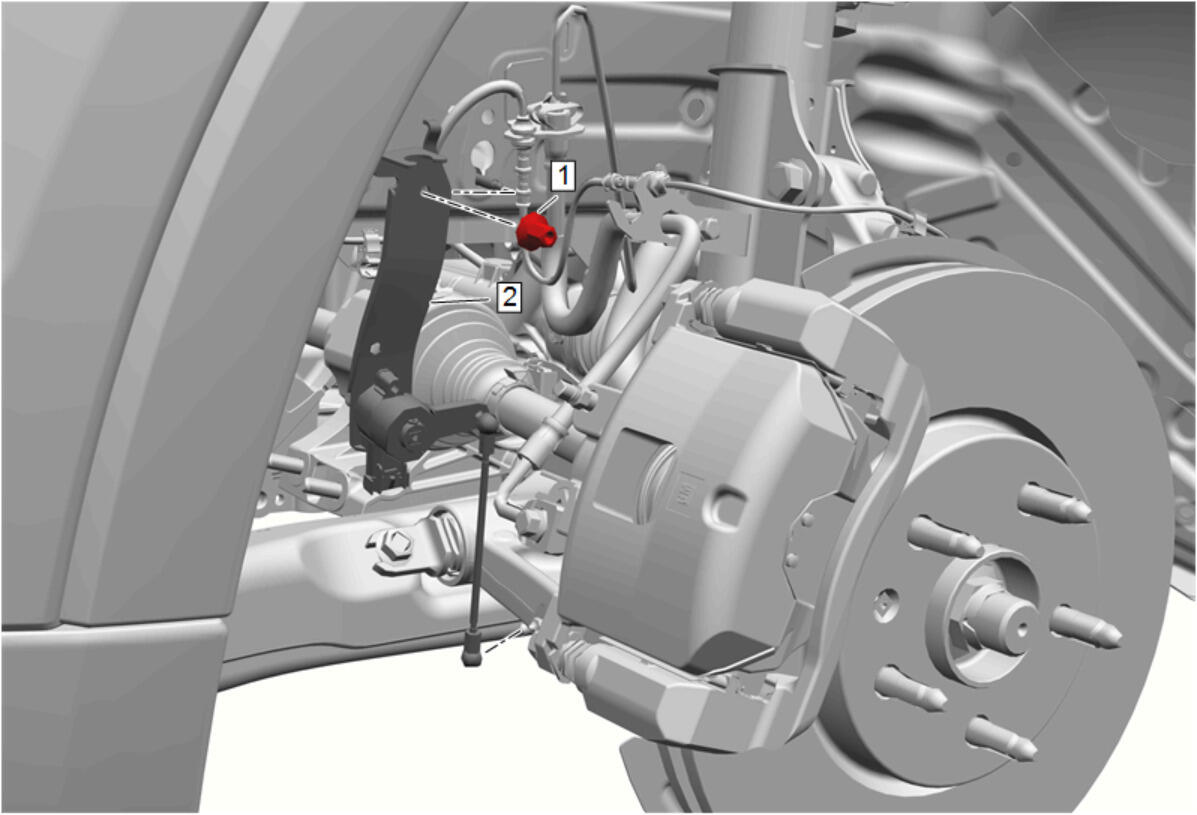

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1	Front Suspension Automatic Forward Lighting Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the electrical connector. Using a suitable tool, separate the ball and socket. Lower the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

Front Suspension Automatic Forward Lighting Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Suspension Automatic Forward Lighting Position Sensor

Procedure

Disconnect the electrical connector.
Using a suitable tool, separate the ball and socket.
Lower the vehicle.
