Removal Procedure

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pedal position sensor electrical connector.
  2. Floor Front Air Outlet Duct - Left Side - Remove - Floor Front Air Outlet Duct Replacement - Left Side

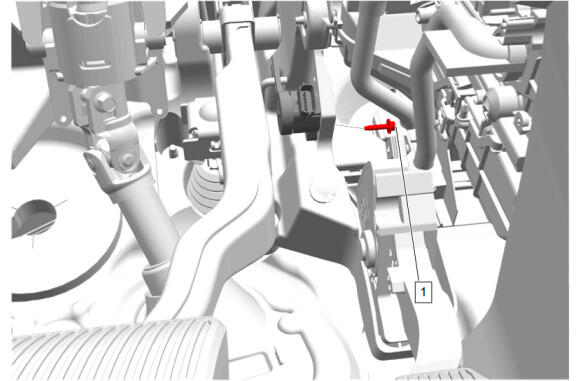

  3. Brake Pedal Position Sensor Bolt (1) - Remove and DISCARD
    GM5913160Courtesy of GENERAL MOTORS COMPANY

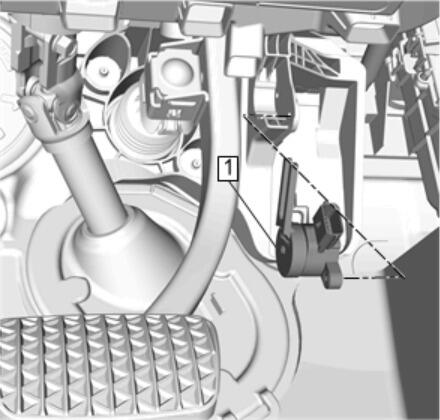

  4. Brake Pedal Position Sensor (1) - Remove
    GM4239779Courtesy of GENERAL MOTORS COMPANY
