Rear Seat Heater Vent Control Module Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

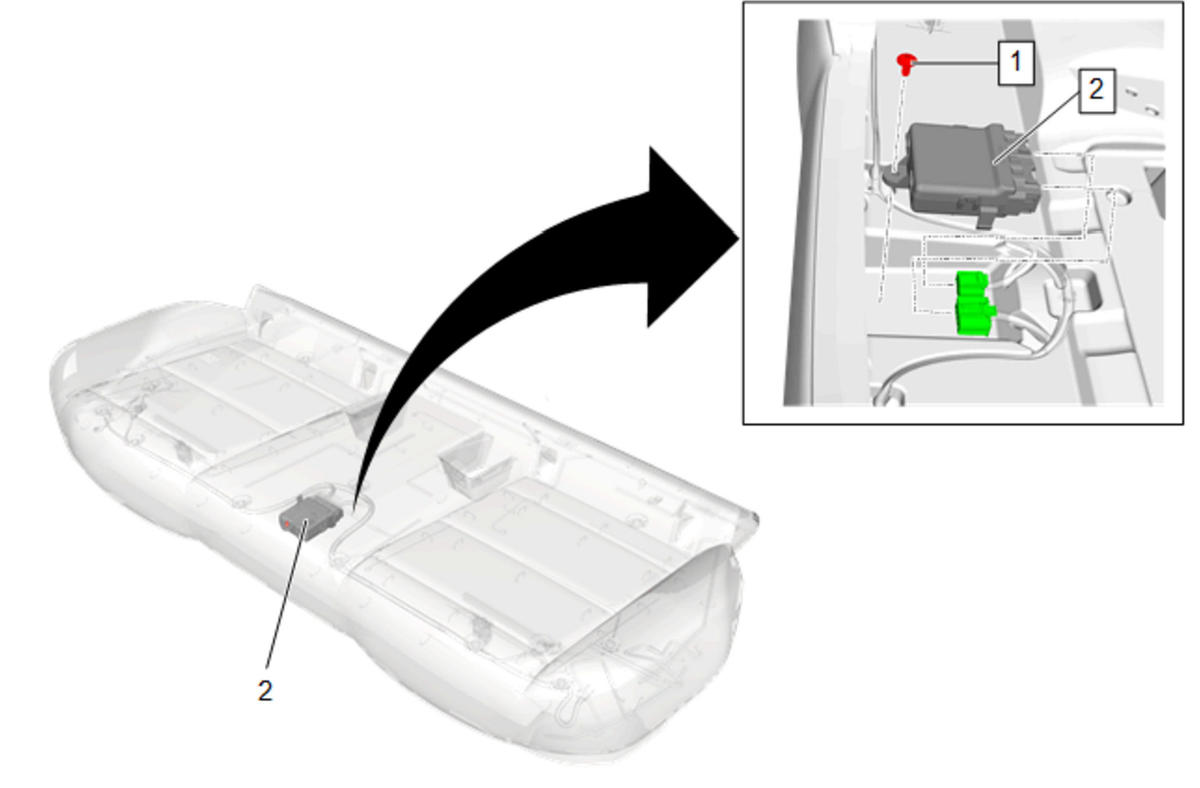

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation (without Heater) , or Rear Seat Cushion Removal and Installation (with Heater)
1	Rear Seat Heater Vent Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Vent Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Seat Cushion Removal and Installation (without Heater) , or Rear Seat Cushion Removal and Installation (with Heater)

Rear Seat Heater Vent Control Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Vent Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
