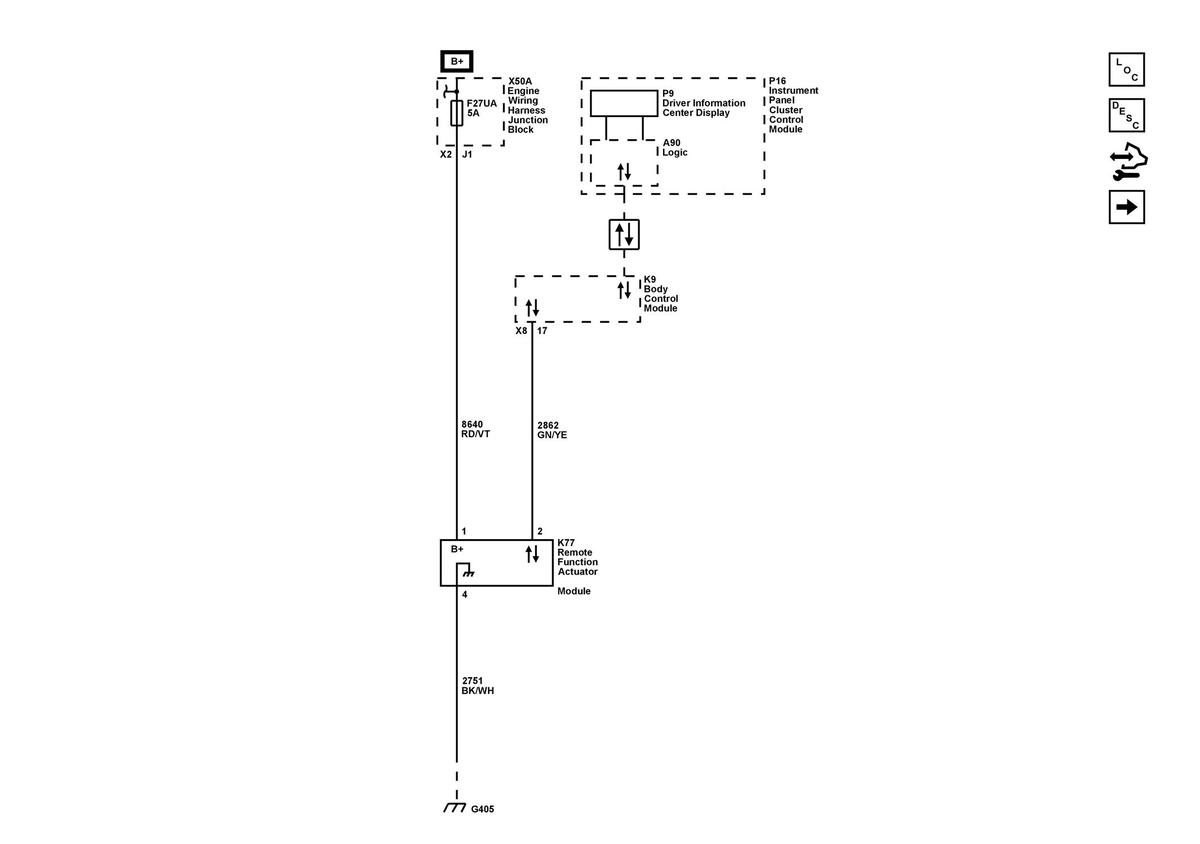

Keyless Entry - Active

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
GM5738274Courtesy of GENERAL MOTORS COMPANY
