Low Frequency Rear Bumper Antenna Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

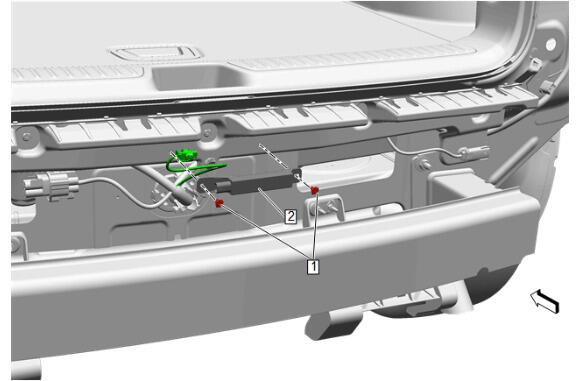

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Low Frequency Rear Bumper Antenna Rivet [2x] WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury. Procedure Disconnect the electrical connector. Drill out the rivet on the low frequency rear bumper antenna.
2	Low Frequency Rear Bumper Antenna

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Replacement

Low Frequency Rear Bumper Antenna Rivet [2x]

WARNING:

Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

Procedure

Disconnect the electrical connector.
Drill out the rivet on the low frequency rear bumper antenna.

Low Frequency Rear Bumper Antenna
