Front Tire Front Air Deflector Replacement
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

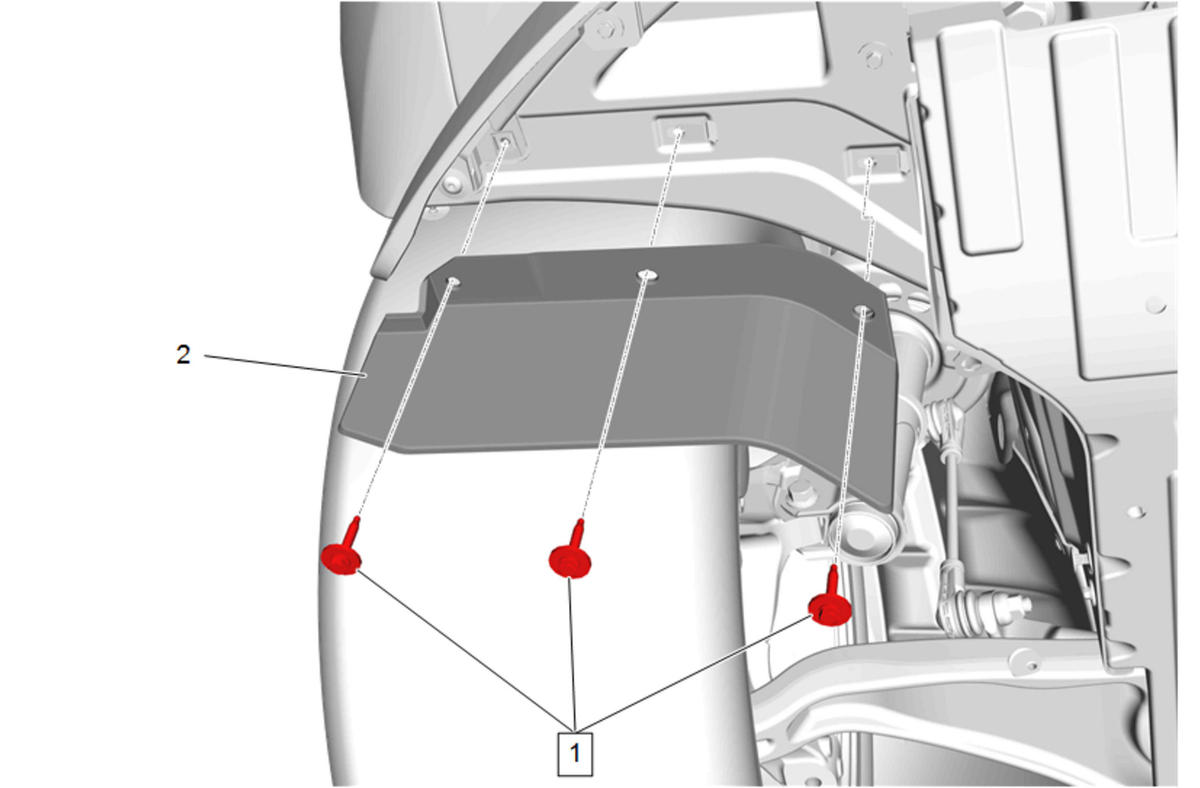

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Front Tire Front Air Deflector Bolt [3x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Front Tire Front Air Deflector Procedure Remove the support and lower the vehicle. Lifting and Jacking the Vehicle |
