Removal Procedure
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
- Using the Global Diagnostic System (GDS) deactivate the brake boost system.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

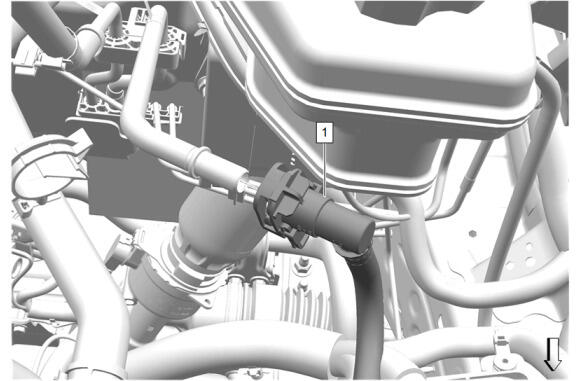

- Evaporative Emission Front Pipe (1)@Evaporative Emission Pipe - Remove - Plastic Collar Quick Connect Fitting Service

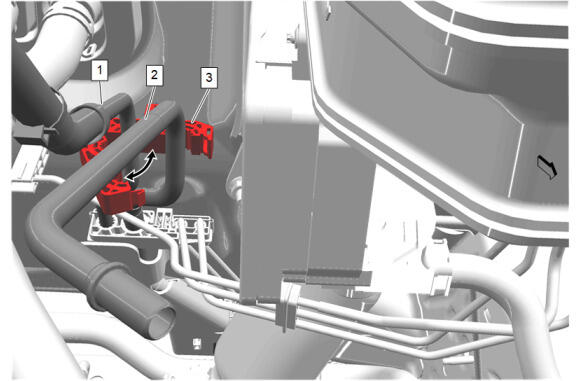

- Fuel Feed and Evaporative Emission and Return Front Pipe Clip (3) - Disengage
- Maneuver the evaporative emission pipe (2) and brake and fuel feed and evaporative emission pipe (1) out of the way to gain clearance to the electronic brake control module.

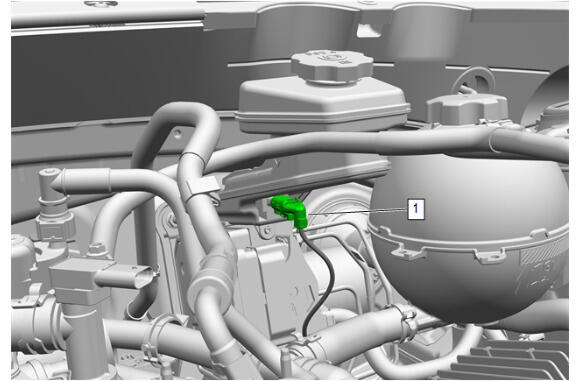

- Electrical Connector (1)@Brake Fluid Level Sensor - Disconnect
- Reposition radiator surge tank without disconnecting or draining any fluid. Radiator Surge Tank Replacement
- Electrical Connector (1) - DisconnectNOTE:
Some components not shown for graphic clarity.

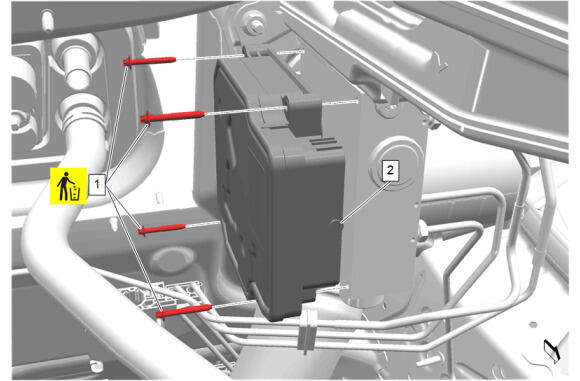

- Electronic Brake Control Module Bolt (1) - Remove and DISCARD [4x]
- Electronic Brake Control Module (2) - Remove
