Removal Procedure
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator Air Upper Baffle (2) - Remove - Radiator Air Upper Baffle Replacement

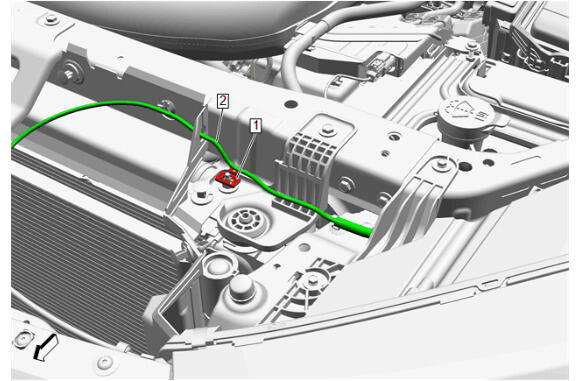

- Wiring Harness Clip (1) - Remove [2x]
- Wiring Harness (2) - Reposition away

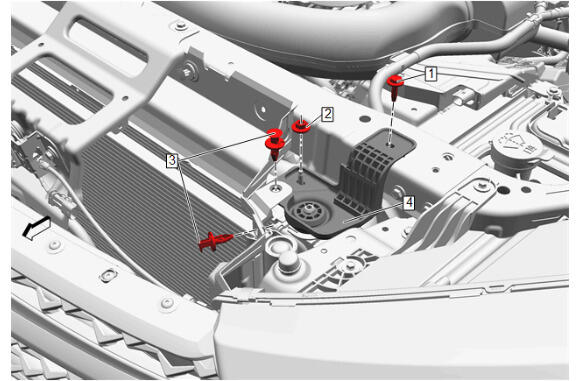

- Radiator Upper Bracket Bolt (1) - Remove
- Radiator Upper Bracket Nut (2) - Remove
- Push Pin (3) - Remove [2x]
- Radiator Upper Bracket - Left Side (4) - Remove
