Removal Procedure

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (Static)
  2. Recover the refrigerant. Refrigerant Recovery and Recharging

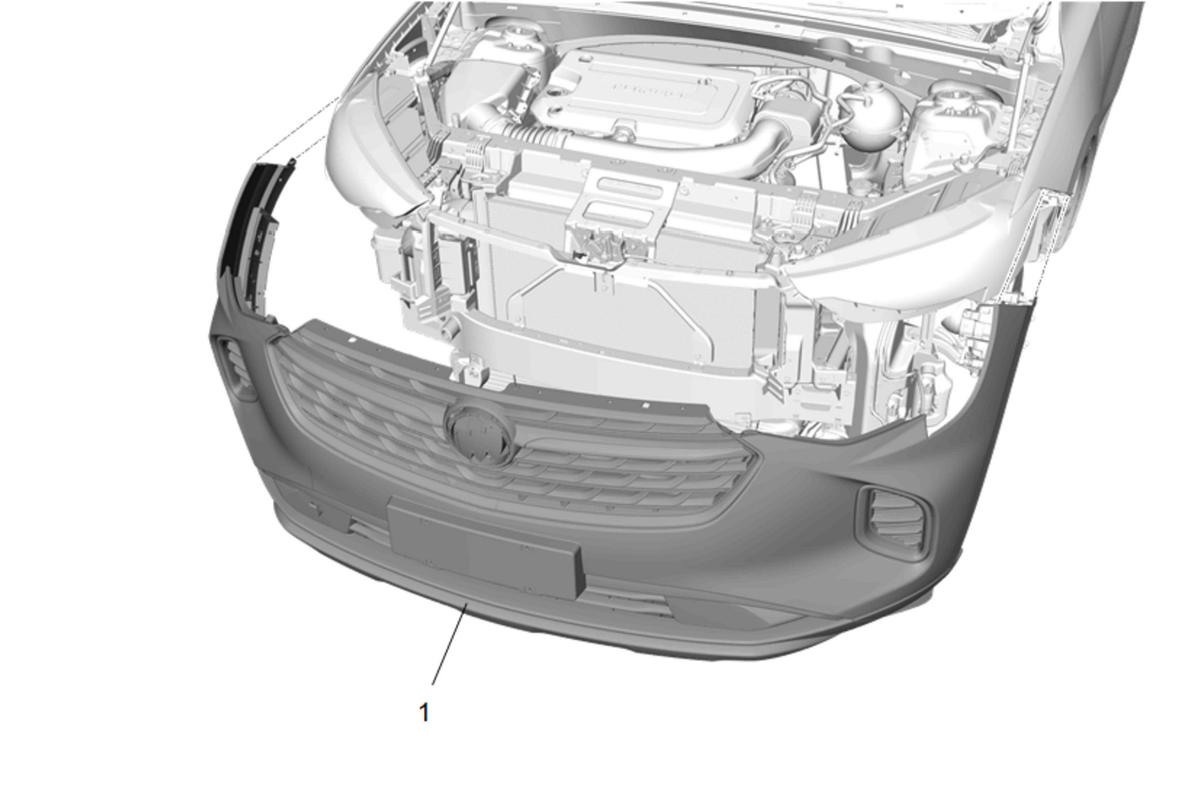

  3. Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation
    GM5591673Courtesy of GENERAL MOTORS COMPANY

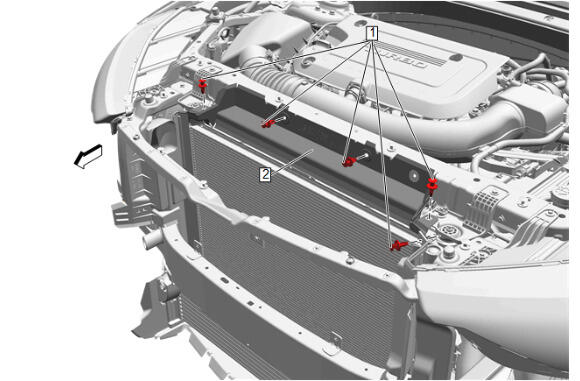

  4. Radiator Air Upper Seal (2) - Remove - Radiator Air Upper Seal Replacement
    GM5611981Courtesy of GENERAL MOTORS COMPANY

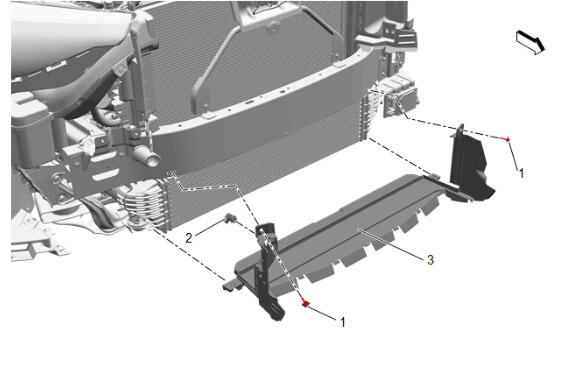

  5. Radiator Air Lower Baffle (3) - Remove - Radiator Air Lower Baffle Replacement
    GM5607737Courtesy of GENERAL MOTORS COMPANY

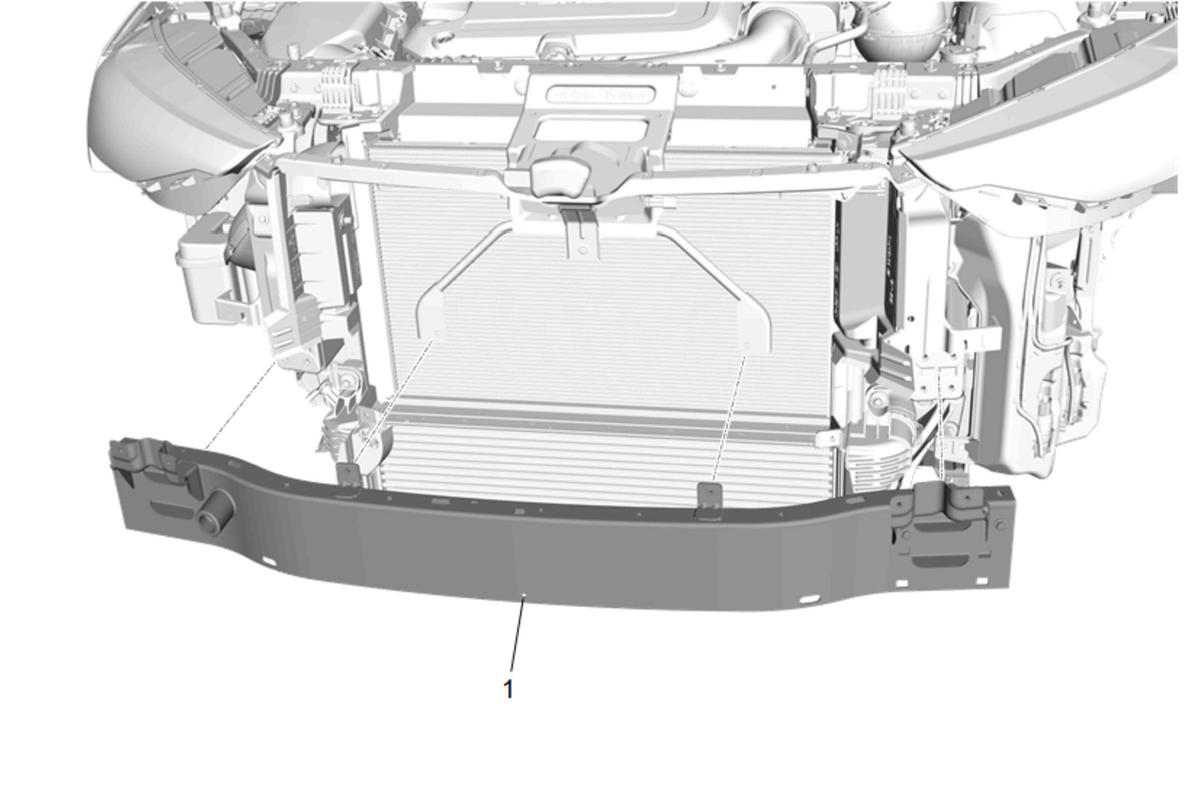

  6. Front Bumper Impact Bar (1) - Remove - Front Bumper Impact Bar Replacement
    GM5591548Courtesy of GENERAL MOTORS COMPANY

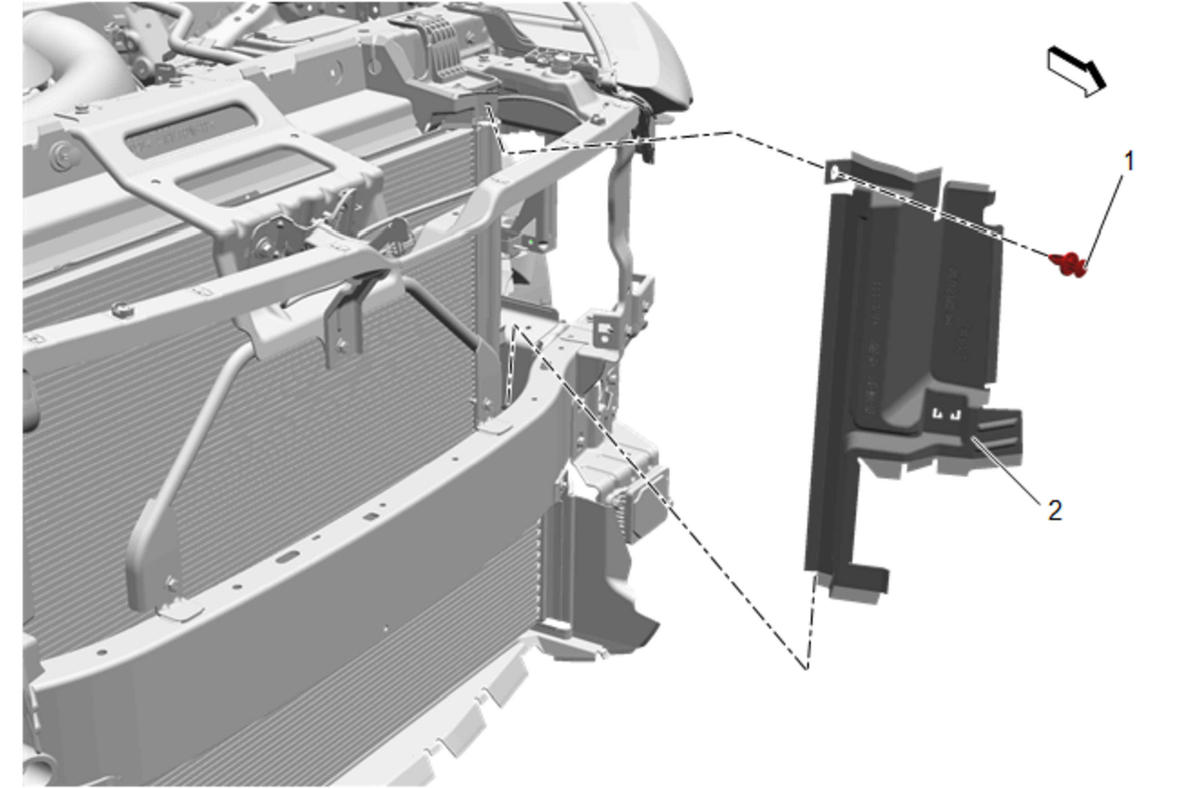

  7. Radiator Air Side Upper Baffle - Left Side (2) - Remove - Radiator Air Side Upper Baffle Replacement - Left Side
    GM5607736Courtesy of GENERAL MOTORS COMPANY

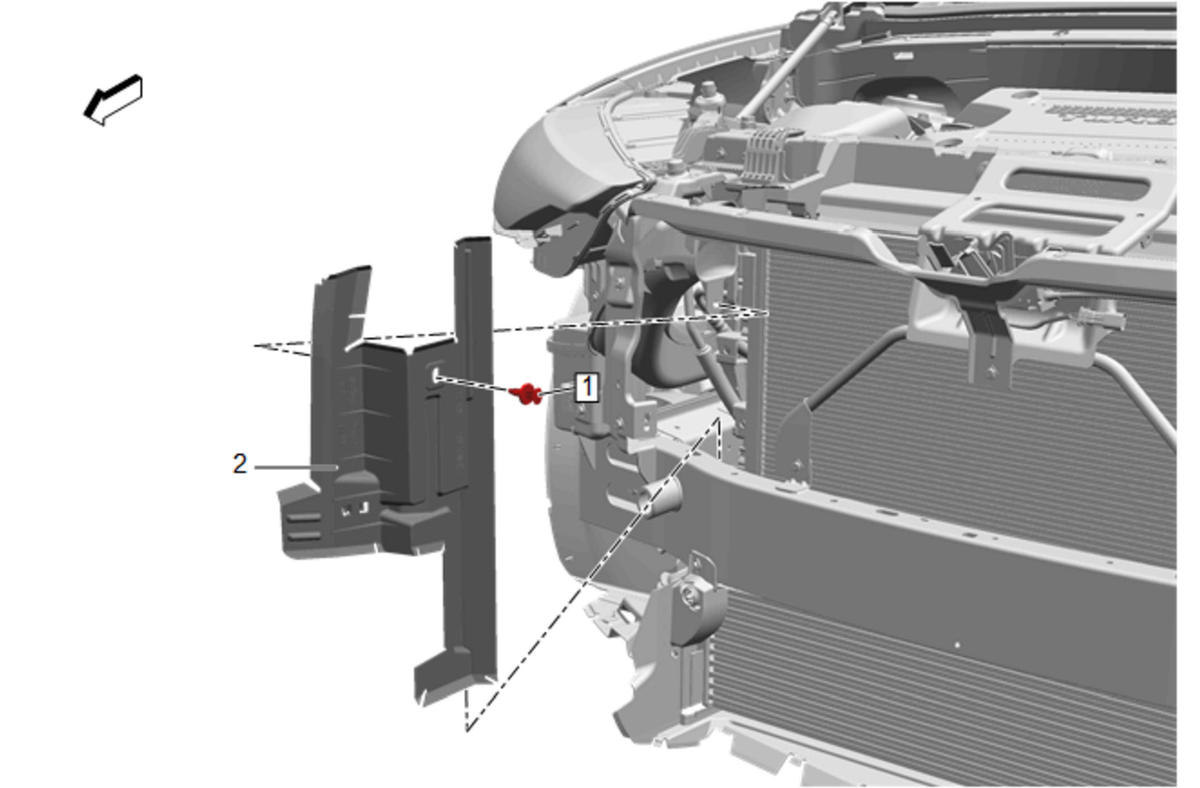

  8. Radiator Air Side Upper Baffle - Right Side (2) - Remove - Radiator Air Side Upper Baffle Replacement - Right Side
    GM5607735Courtesy of GENERAL MOTORS COMPANY

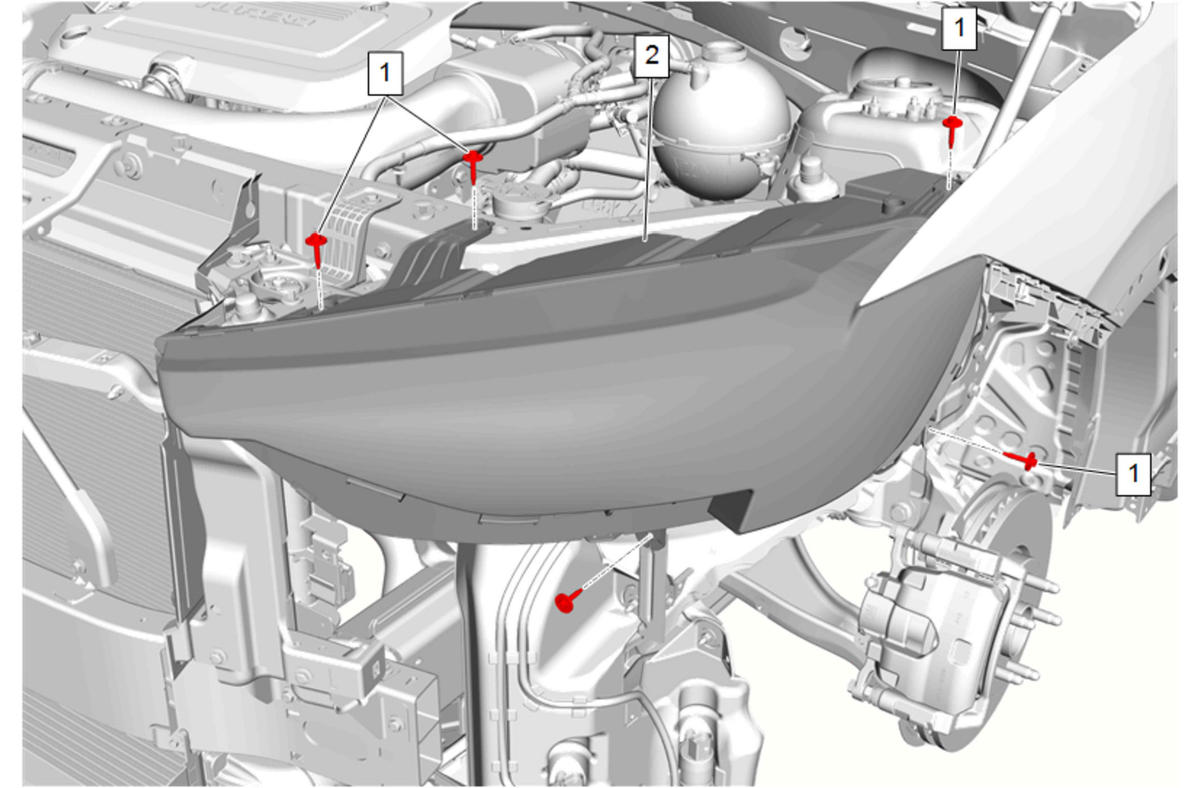

  9. Remove the front head lamp (2) on both side. Front Headlamp Replacement
    GM5591600Courtesy of GENERAL MOTORS COMPANY

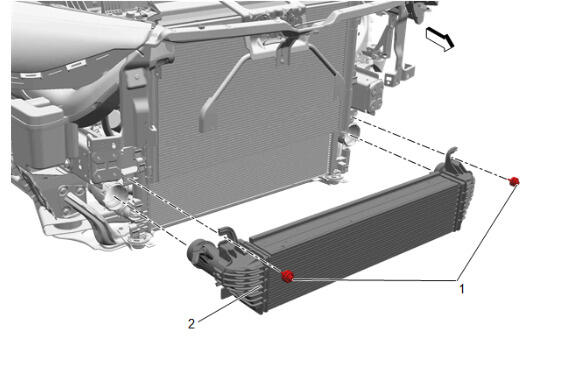

  10. Charge Air Cooler (2) - Remove - Charge Air Cooler Replacement
    GM5607739Courtesy of GENERAL MOTORS COMPANY

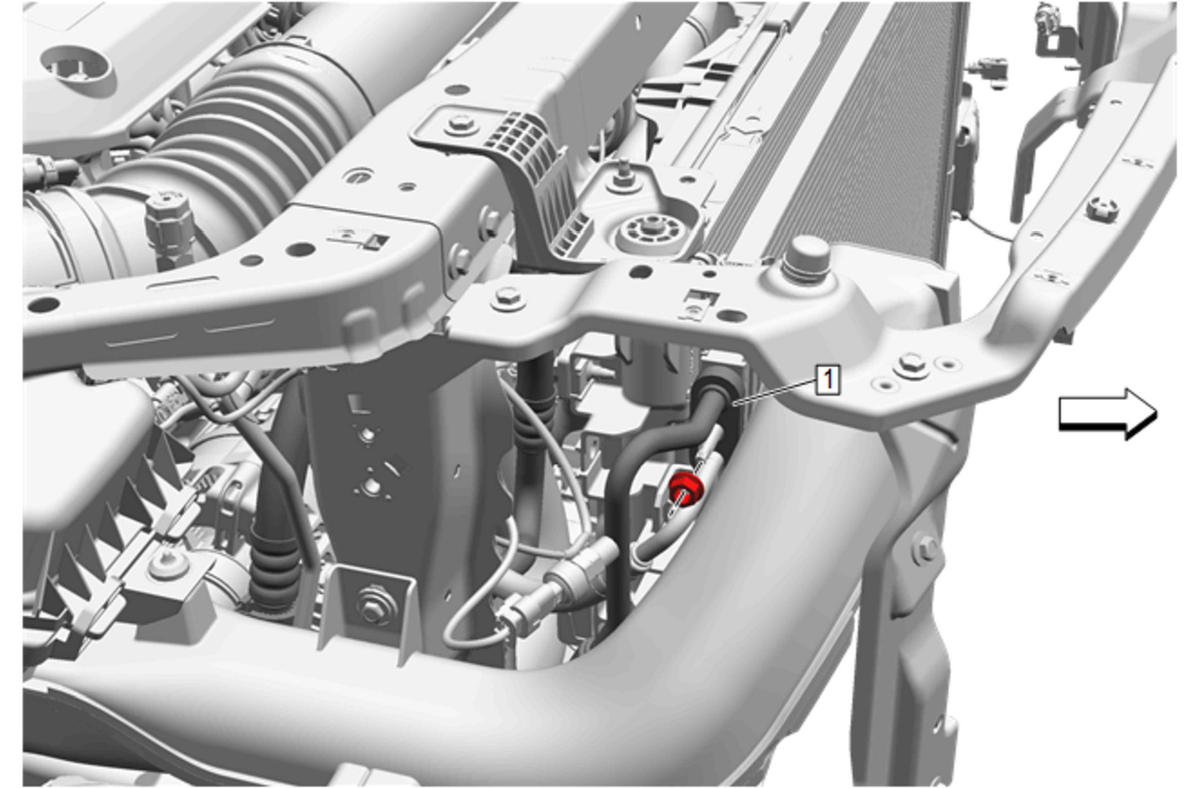

  11. Air Conditioning Compressor Hose (1) @Air Conditioning Condenser - Remove - Air Conditioning Compressor Hose Replacement
    GM5612996Courtesy of GENERAL MOTORS COMPANY

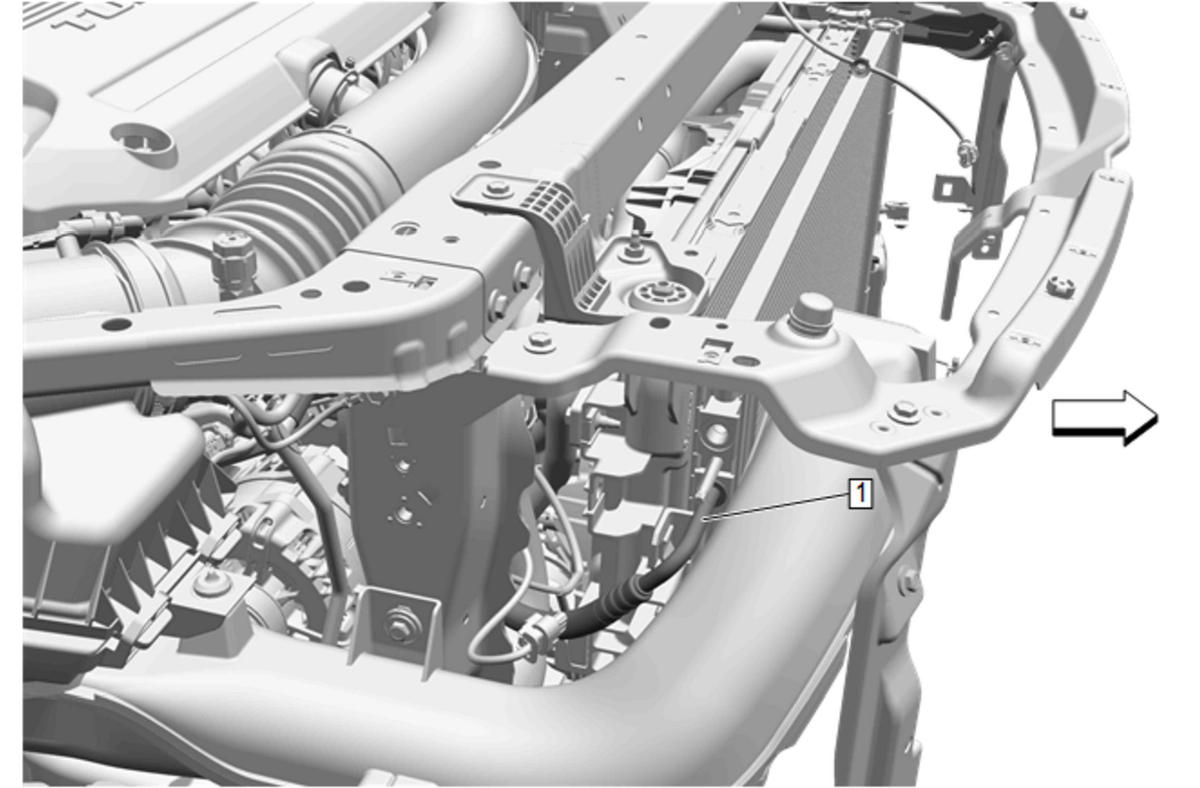

  12. Air Conditioning Condenser and Air Conditioning Evaporator Tube (1) @Air Conditioning Condenser - Remove - Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement
    GM5612997Courtesy of GENERAL MOTORS COMPANY

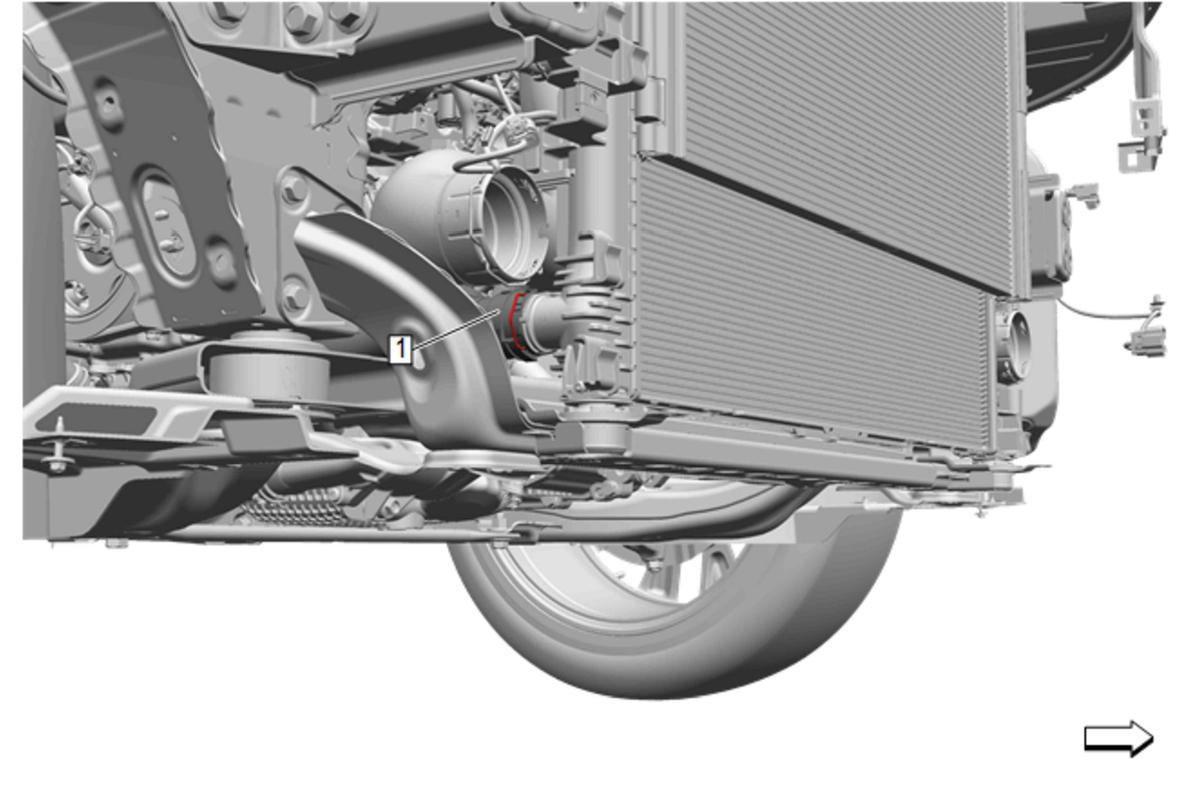

  13. Radiator Outlet Hose (1) @Radiator - Remove - Radiator Outlet Hose Replacement
    GM5612998Courtesy of GENERAL MOTORS COMPANY

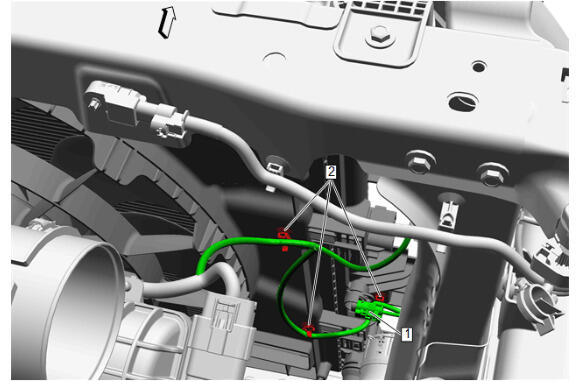

  14. Disconnect the electrical connector. (1)
    GM5613020Courtesy of GENERAL MOTORS COMPANY
  15. Wiring Harness Clip (2) @Radiator - Remove [3x]

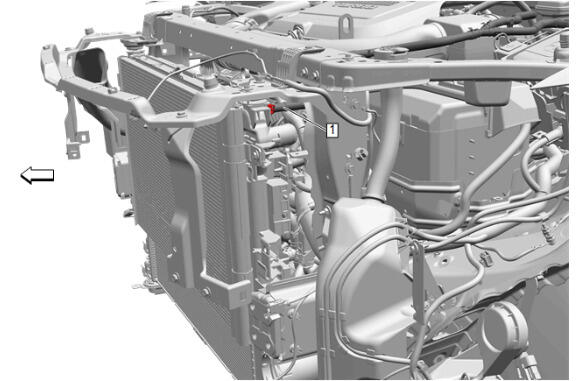

  16. Engine Coolant Air Bleed Hose (1) @Radiator - Remove - Engine Coolant Air Bleed Hose Replacement (Radiator to Radiator Surge Tank to Engine Coolant Thermostat Housing Pipe)
    GM5612999Courtesy of GENERAL MOTORS COMPANY

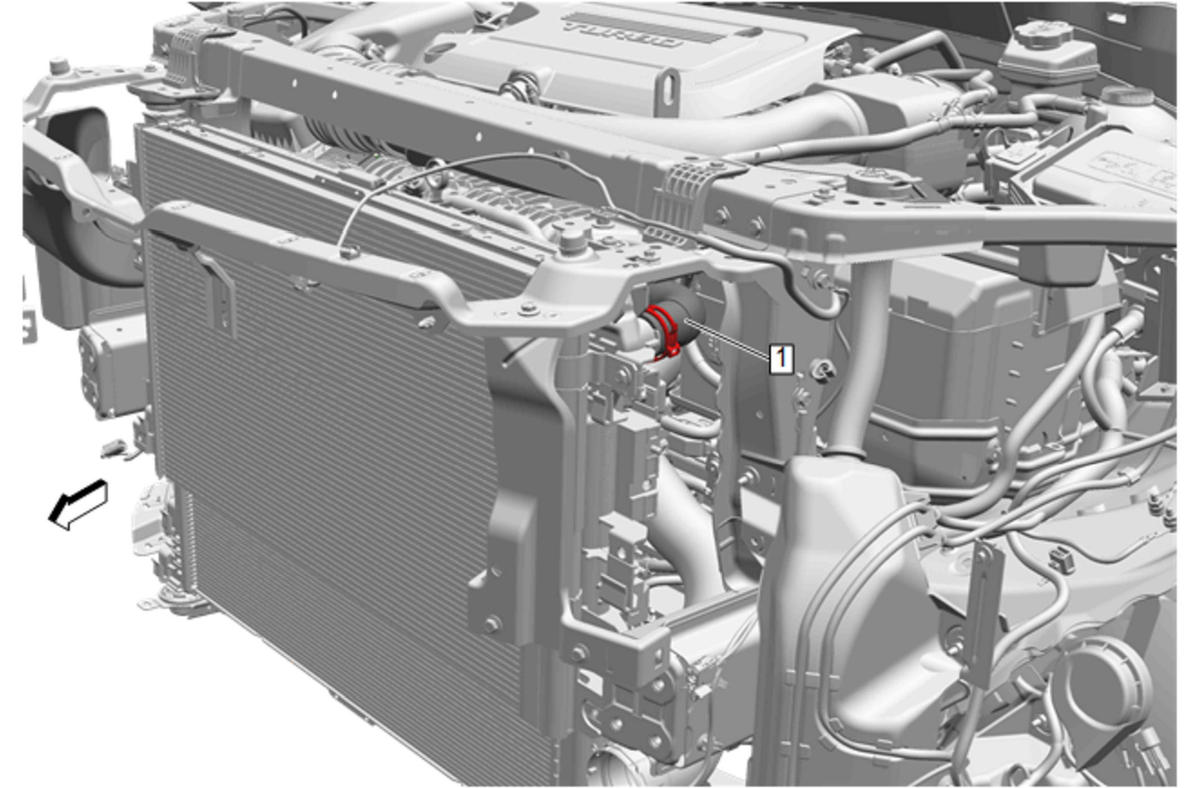

  17. Radiator Inlet Hose (1) @Radiator - Remove - Radiator Inlet Hose Replacement
    GM5613002Courtesy of GENERAL MOTORS COMPANY

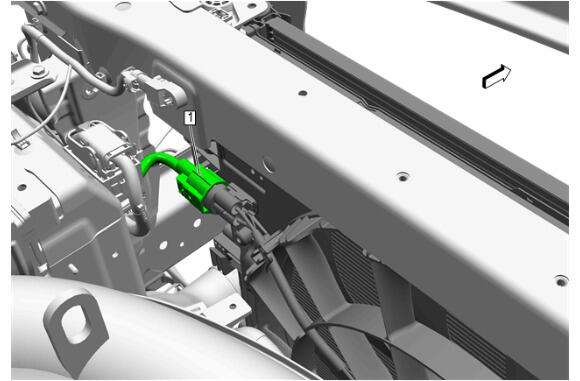

  18. Disconnect the electrical connector. (1)
    GM5613019Courtesy of GENERAL MOTORS COMPANY

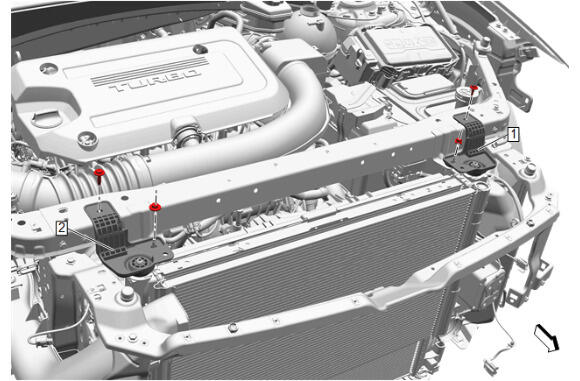

  19. Radiator Upper Bracket - Left Side (1) - Remove - Radiator Upper Bracket Replacement - Left Side
    GM5613000Courtesy of GENERAL MOTORS COMPANY
  20. Radiator Upper Bracket - Right Side (2) - Remove - Radiator Upper Bracket Replacement - Right Side

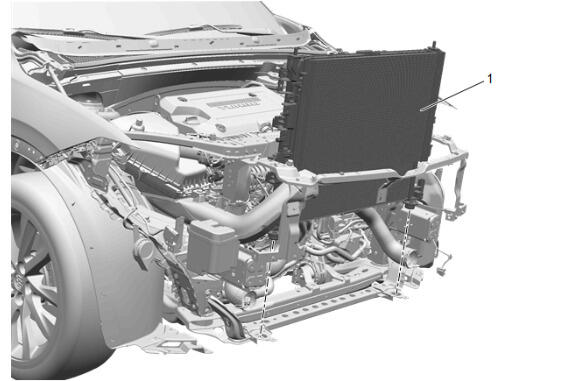

  21. Radiator (1) - Remove
    GM5613006Courtesy of GENERAL MOTORS COMPANY

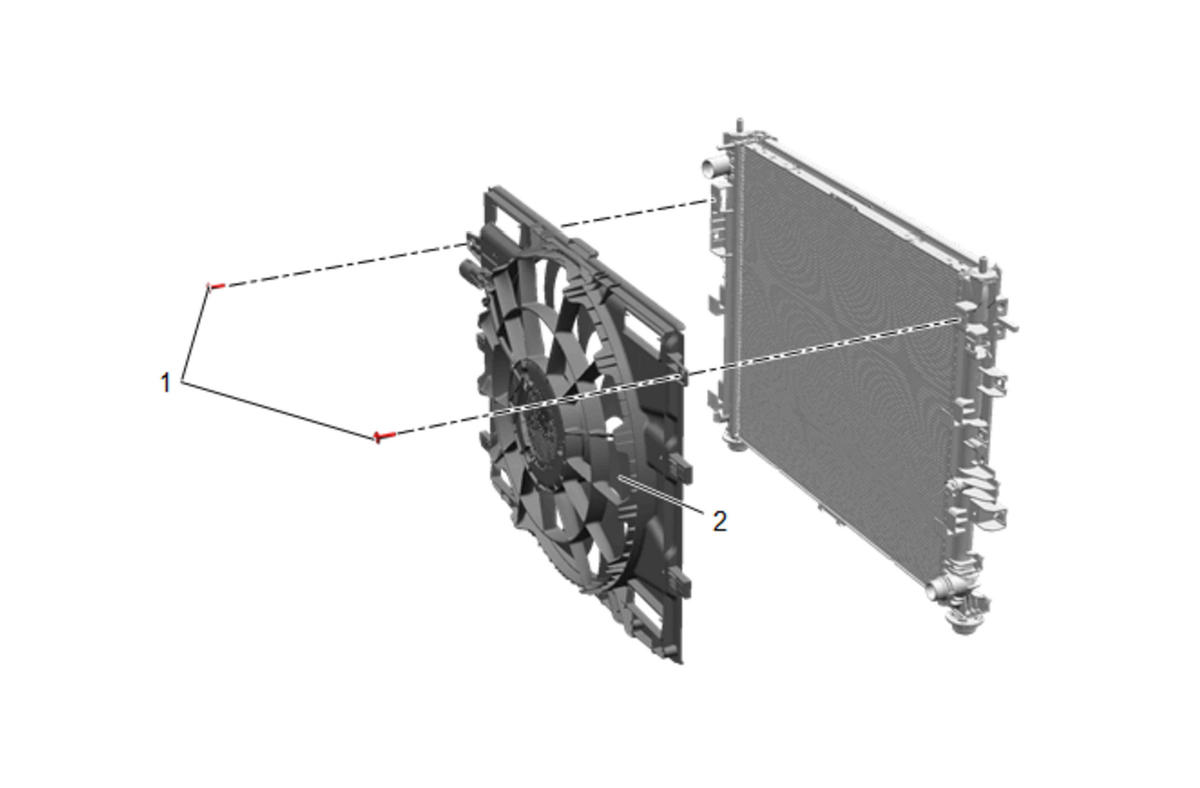

  22. Engine Coolant Fan Bolt (1) - Remove [2x]
    GM5613003Courtesy of GENERAL MOTORS COMPANY
  23. Engine Coolant Fan (2) - Remove
  24. Air Conditioning Condenser Bolt (1) - Remove
    GM5613005Courtesy of GENERAL MOTORS COMPANY
  25. Air Conditioning Condenser (2) - Remove
