Radiator Drain Cock Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

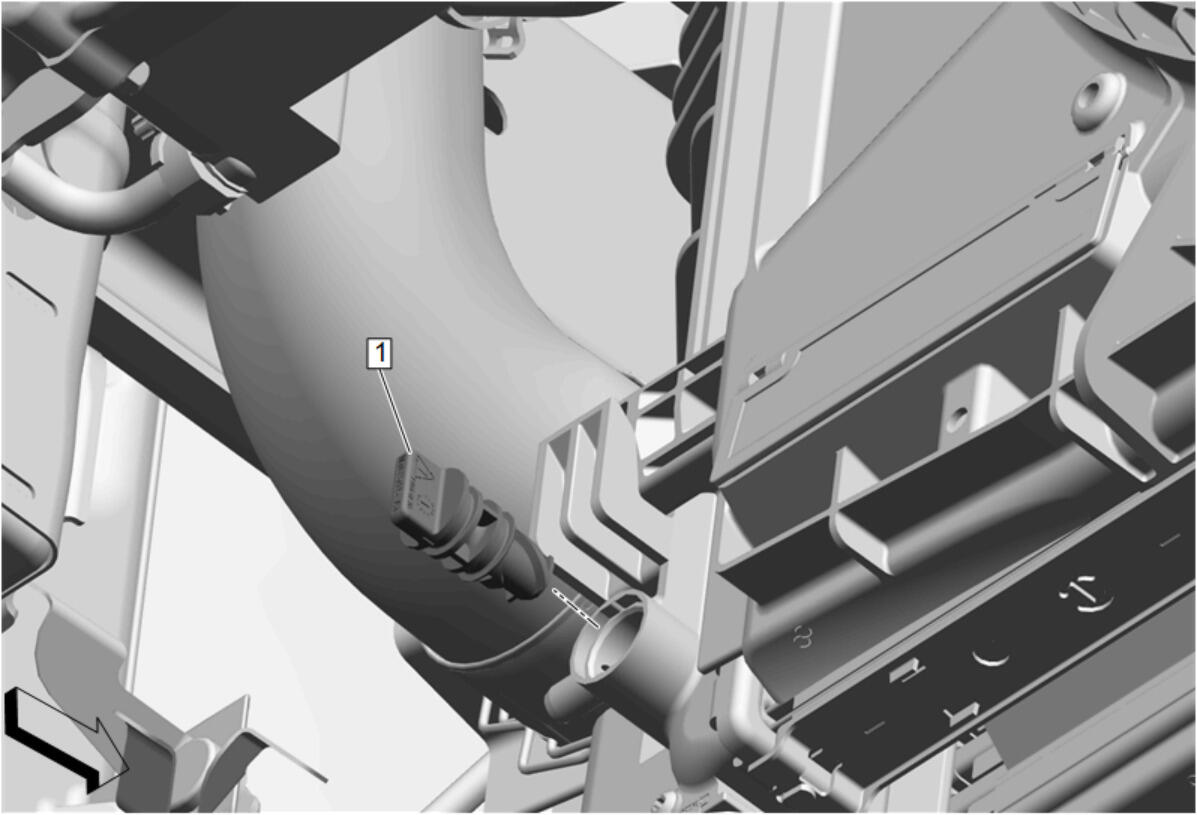

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Remove the charge air cooler inlet air tube from the radiator assembly to access the drain cock. Place a drain pan under the vehicle. Attach a rubber hose to the radiator drain port to guide the coolant into the drain pan. Rotate the radiator drain cock counterclockwise to open.
1	Radiator Drain Cock CAUTION: Refer to Component Fastener Tightening Caution . Procedures Rotate the radiator drain cock clockwise to close. Remove the drain hose from the radiator drain port. Remove the drain pan. Fill the cooling system. Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Remove the charge air cooler inlet air tube from the radiator assembly to access the drain cock.
Place a drain pan under the vehicle.
Attach a rubber hose to the radiator drain port to guide the coolant into the drain pan.
Rotate the radiator drain cock counterclockwise to open.

Radiator Drain Cock

CAUTION:

Refer to Component Fastener Tightening Caution .

Procedures

Rotate the radiator drain cock clockwise to close.
Remove the drain hose from the radiator drain port.
Remove the drain pan.
Fill the cooling system. Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
