Removal Procedure
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
- Front Compartment Air Deflector - Remove - Front Compartment Air Deflector Replacement (Base) , or Front Compartment Air Deflector Replacement (Oil Filter Access)
- Drain the cooling system. Cooling System Draining and Filling (Static)

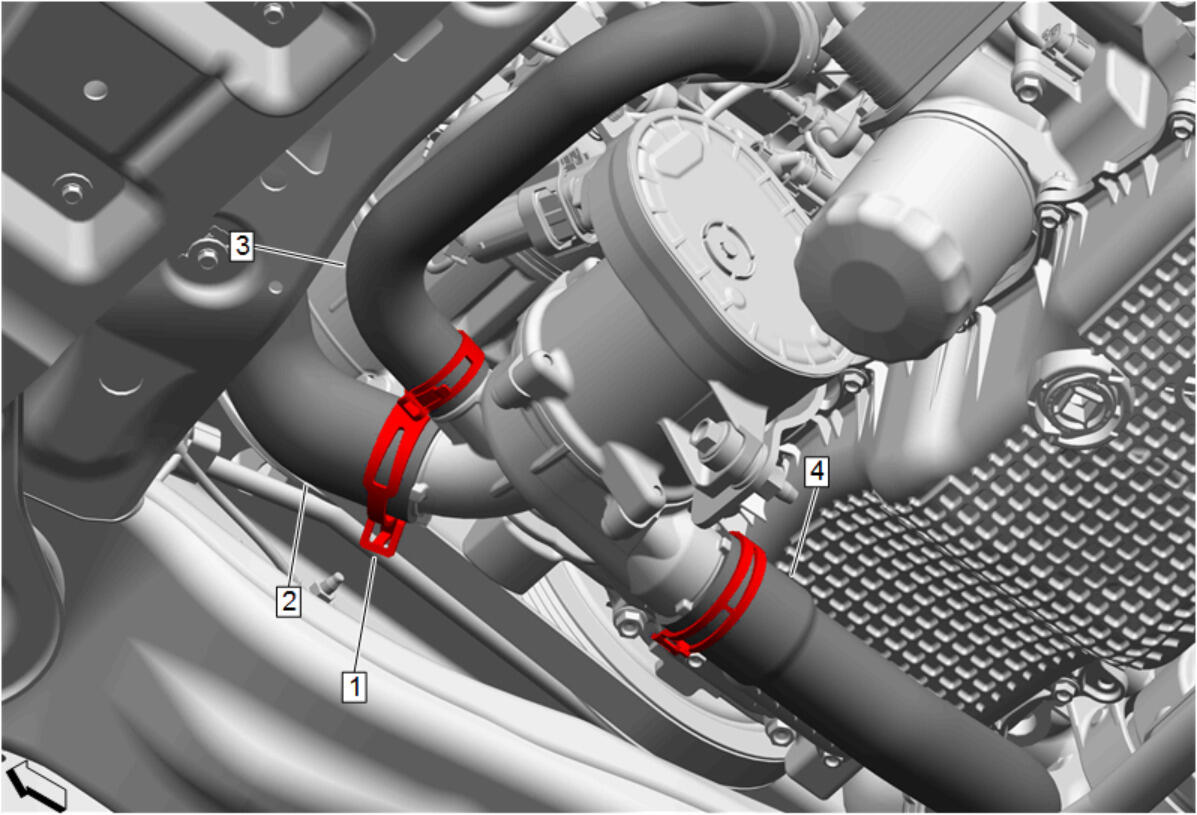

- Hose Clamp (1) - Disengage [3x] - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Outlet Hose (2) @Water Pump - Remove
- Thermostat Bypass Hose (3) @Water Pump - Remove
- Engine Coolant Air Bleed Hose (4) @Water Pump - Remove

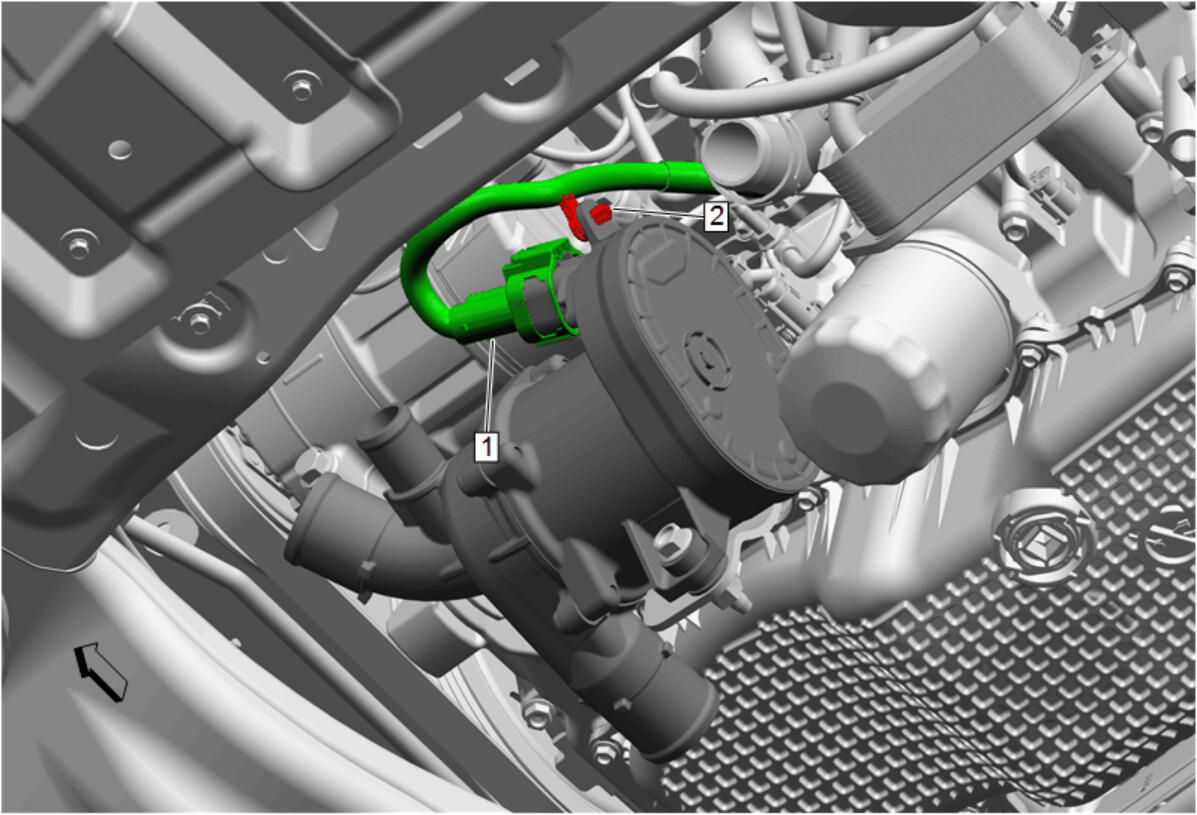

- Electrical Connector (1) @Water Pump - Disconnect
- Engine Wiring Harness Retainer (2) @Water Pump - Separate

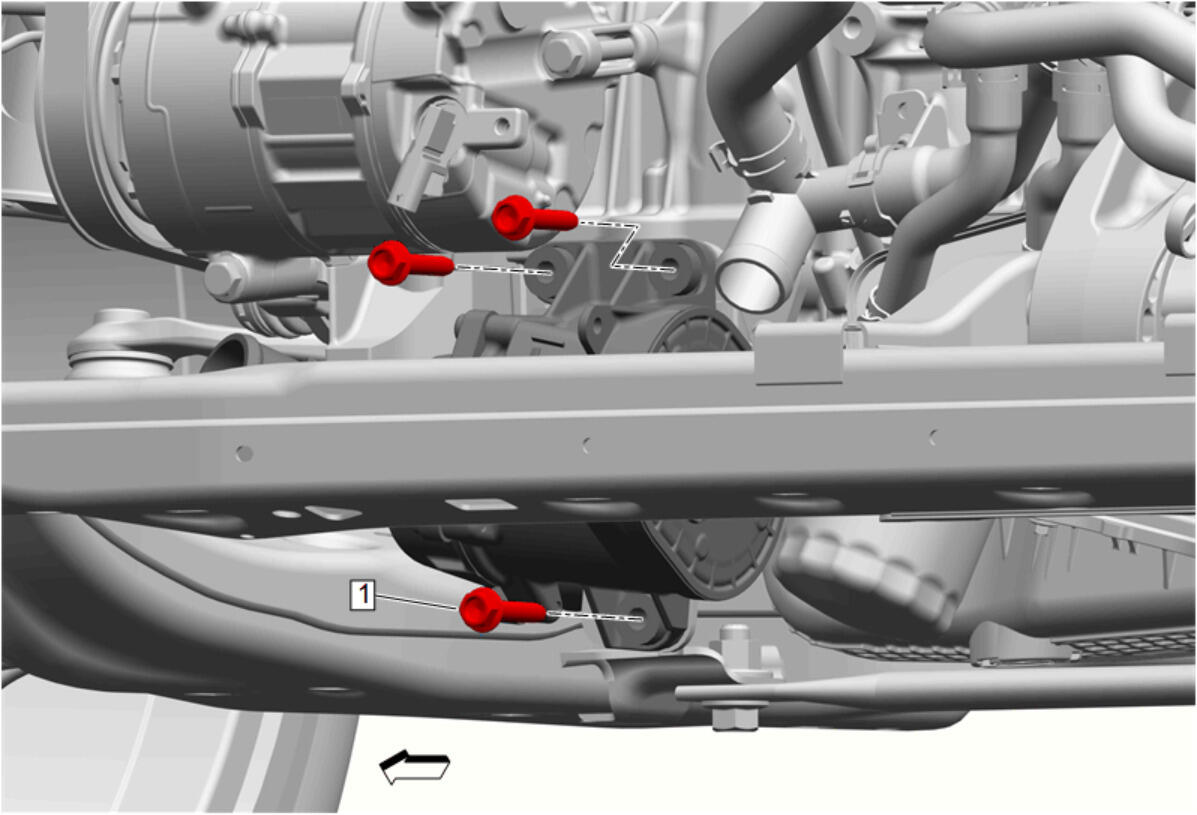

- Water Pump Bolt (1) - Remove [3x]

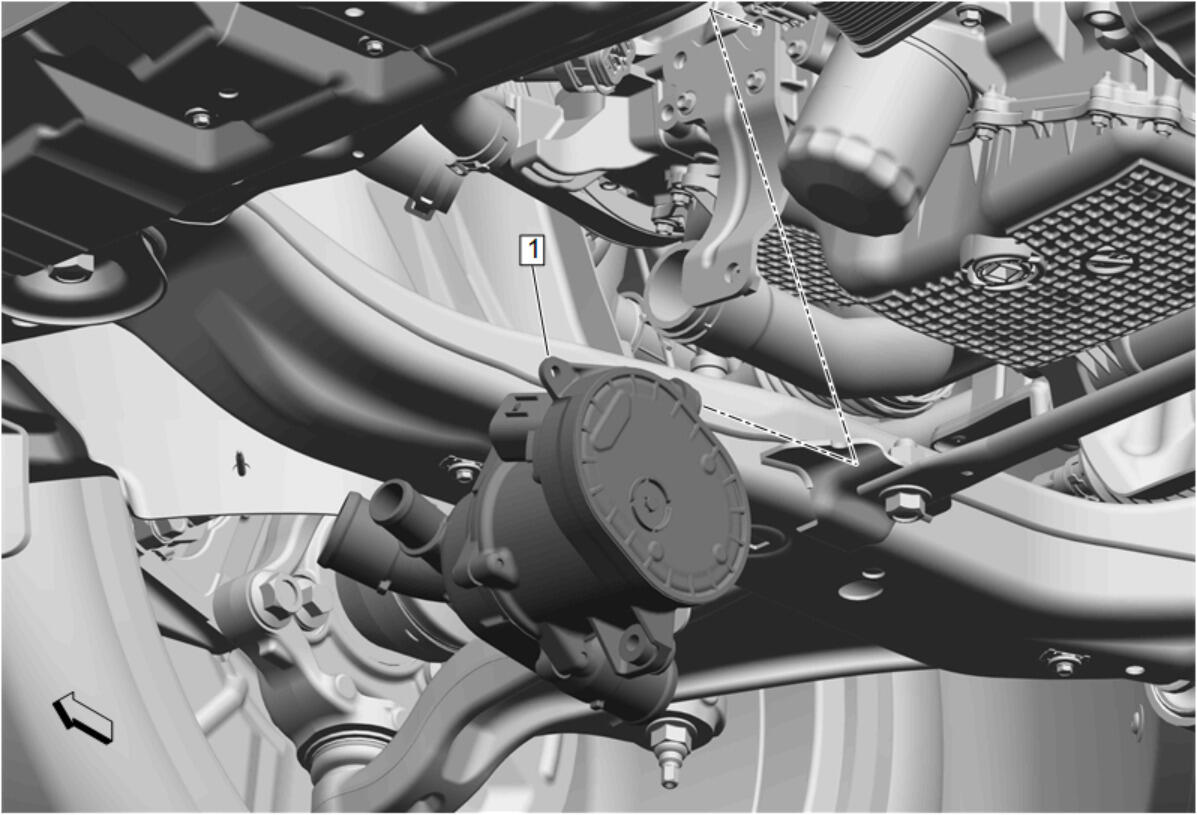

- Water Pump (1) - Remove
